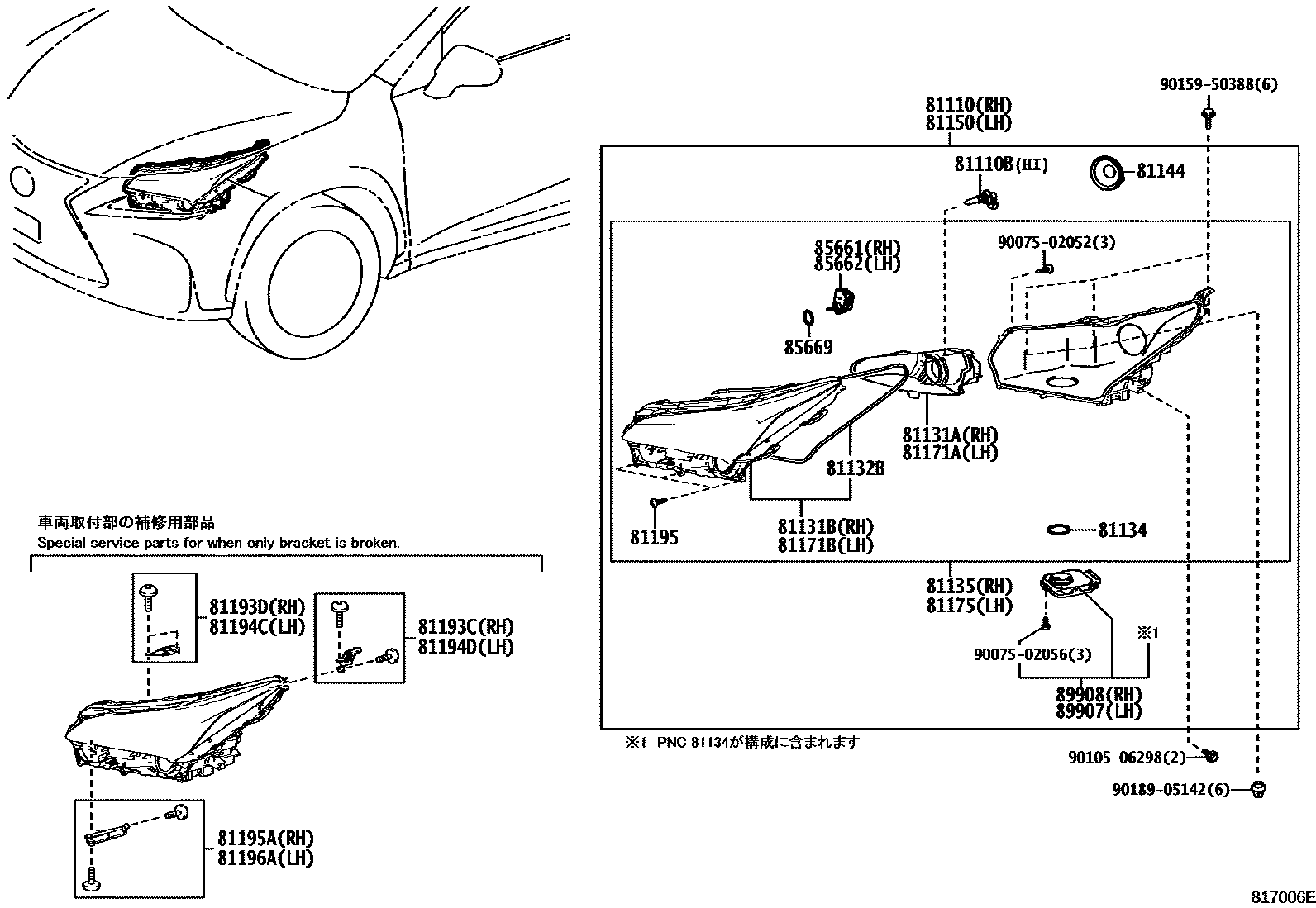

HEADLAMP

0001 1������(�����) 0002 1������(LED) 0003 1LED(��������) 0004 1LED(�������LED)

81110HEADLAMP ASSY, RH

main81110-78040iAGZ1#,AYZ1#201407-201508

sub81110-78041

main81110-78041iAGZ1#,AYZ1#201509-201709

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iAGZ1#,AYZ1#201407-201709

81131AUNIT, HEADLAMP, RH

main81130-78010iAGZ1#,AYZ1#201407-201709

main81130-78170iAGZ1#,AYZ1#201709

81131BHEAD LAMP LENS, RH

main81131-78010iAGZ1#,AYZ1#201407-201709

main81131-78170iAGZ1#,AYZ1#201709

81132BGASKET, HEADLAMP LENS

main81132-30E40iAGZ1#,AYZ1#201407-201709

81134GASKET, HEADLAMP

main90075-23003iAGZ1#,AYZ1#201407-201709

81135UNIT ASSY, HEADLAMP, RH

main81145-78040iAGZ1#,AYZ1#201407-201709

main81145-78170iAGZ1#,AYZ1#201709

81144COVER, HEADLAMP, NO.1

main81135-3A150iAGZ1#,AYZ1#201407-201709

81150HEADLAMP ASSY, LH

main81150-78040iAGZ1#,AYZ1#201407-201508

sub81150-78041

main81150-78041iAGZ1#,AYZ1#201509-201709

81171AUNIT, HEADLAMP, LH

main81170-78010iAGZ1#,AYZ1#201407-201709

main81170-78170iAGZ1#,AYZ1#201709

81171BHEAD LAMP LENS, LH

main81171-78010iAGZ1#,AYZ1#201407-201709

main81171-78170iAGZ1#,AYZ1#201709

81175UNIT ASSY, HEADLAMP, LH

main81185-78040iAGZ1#,AYZ1#201407-201709

main81185-78170iAGZ1#,AYZ1#201709

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-78010iAGZ1#,AYZ1#201407-201709

81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH

main81193-78030iAGZ1#,AYZ1#201407-201709

81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH

main81194-78030iAGZ1#,AYZ1#201407-201709

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-78010iAGZ1#,AYZ1#201407-201709

81195SCREW, HEADLAMP

main90075-02060iAGZ1#,AYZ1#201407-201709

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-78020iAGZ1#,AYZ1#201407-201709

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-78020iAGZ1#,AYZ1#201407-201709

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iAGZ1#,AYZ1#201407-201709

main85661-48050iAGZ1#,AYZ1#201709

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iAGZ1#,AYZ1#201407-201709

main85661-48050iAGZ1#,AYZ1#201709

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iAGZ1#,AYZ1#201407-201709

89907COMPUTER SUB-ASSY, HEADLAMP, LH

main89907-78060iAGZ1#,AYZ1#201407-201508

sub89907-78061

main89907-78061iAGZ1#,AYZ1#201509-201709

main89907-78160iAGZ1#,AYZ1#201709

89908COMPUTER SUB-ASSY, HEADLAMP, RH

main89908-78060iAGZ1#,AYZ1#201407-201508

sub89908-78061

main89908-78061iAGZ1#,AYZ1#201509-201709

main89908-78160iAGZ1#,AYZ1#201709

9007502052

main90075-02052

9007502056

main90075-02056

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

29 parts on this diagram · 4 diagrams in section
