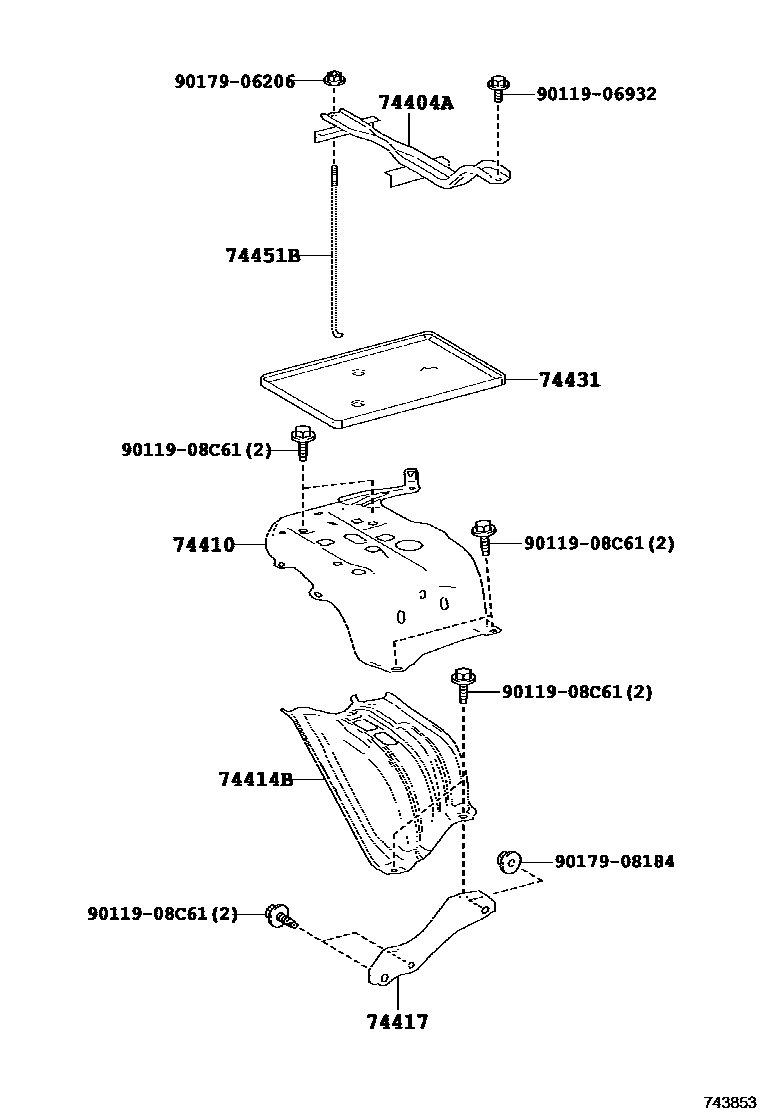

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-78010iAGZ1#¥1,950201407-201709

main74404-78030iAYZ1#¥2,230201407-201709

74410CARRIER ASSY, BATTERY

main74410-78010iAGZ1#¥12,600201407-201709

74414BREINFORCEMENT, BATTERY BRACKET

main74414-78020iAGZ1#¥2,710201407-201709

74417BRACKET, BATTERY CARRIER

main74417-42030iAGZ1#¥1,110201407-201709

74431TRAY, BATTERY

main74431-52040iAGZ1#¥1,860201407-201709

74451BBOLT, BATTERY CLAMP

main74451-10060iAGZ1#¥360201407-201709

9011906932

main90119-06932¥60

9011908C61

main90119-08C61¥80

9017906206

main90179-06206¥70

9017908184

main90179-08184¥90

10 parts on this diagram · 2 diagrams in section
