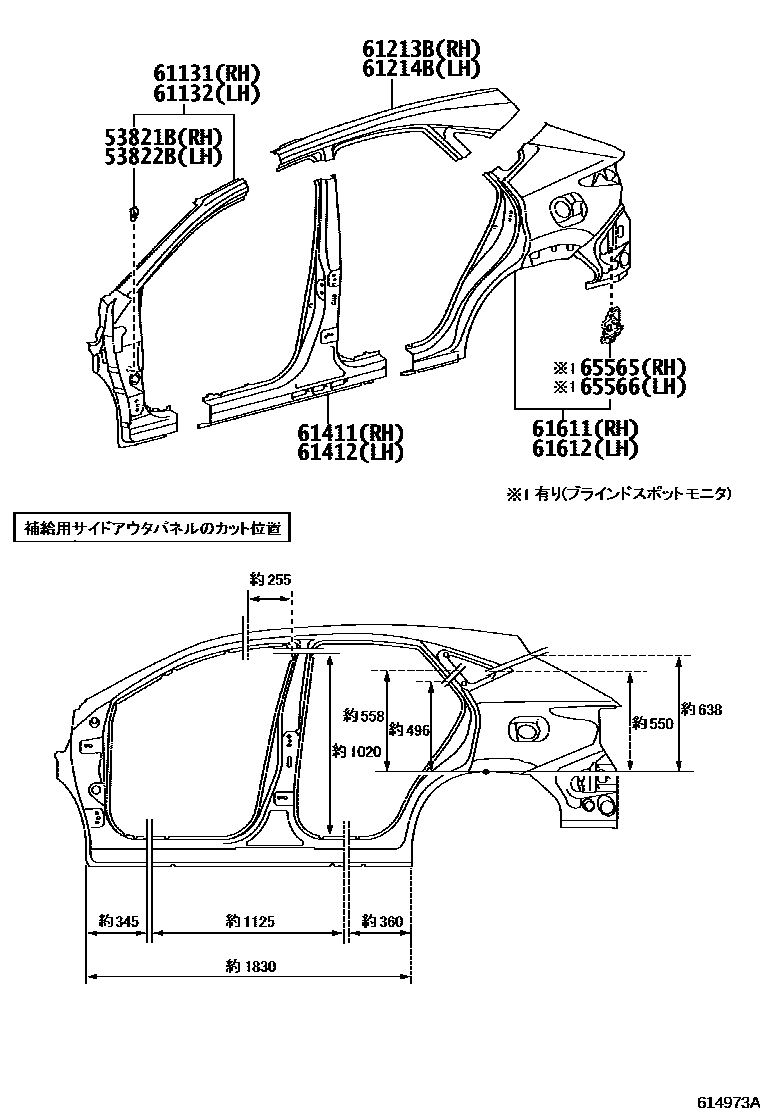

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iAGZ1#,AYZ1#201407-201709

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iAGZ1#,AYZ1#201407-201709

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-78010iAGZ1#,AYZ1#201407-201709

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-78010iAGZ1#,AYZ1#201407-201709

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61201-78020iAGZ1#,AYZ1#201504-201709

main61213-78010iAGZ1#,AYZ1#201407-201504

sub61201-78020

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61202-78020iAGZ1#,AYZ1#201504-201709

main61214-78010iAGZ1#,AYZ1#201407-201504

sub61202-78020

61411PANEL, ROCKER, OUTER RH

main61311-78010iAGZ1#,AYZ1#201407-201709

61412PANEL, ROCKER, OUTER LH

main61312-78010iAGZ1#,AYZ1#201407-201709

61611PANEL, QUARTER, RH

main61601-78020iAGZ1#,AYZ1#201407-201503

sub61601-78021

main61601-78021iAGZ1#,AYZ1#201504-201709

main61601-78040iAGZ1#,AYZ1#201407-201503

sub61601-78041

main61601-78041iAGZ1#,AYZ1#201504-201709

main61601-78060iAGZ1#,AYZ1#201709

61612PANEL, QUARTER, LH

main61602-78020iAGZ1#,AYZ1#201407-201503

sub61602-78021

main61602-78021iAGZ1#,AYZ1#201504-201709

main61602-78040iAGZ1#,AYZ1#201407-201503

sub61602-78041

main61602-78041iAGZ1#,AYZ1#201504-201709

main61602-78060iAGZ1#,AYZ1#201709

65565PATCH, SIDE PANEL REAR END, RH

main65565-30010iAGZ1#,AYZ1#201407-201709

main65565-78010iAGZ1#,AYZ1#201709

65566PATCH, SIDE PANEL REAR END, LH

main65565-30010iAGZ1#,AYZ1#201407-201709

main65566-78010iAGZ1#,AYZ1#201709

12 parts on this diagram · 3 diagrams in section
