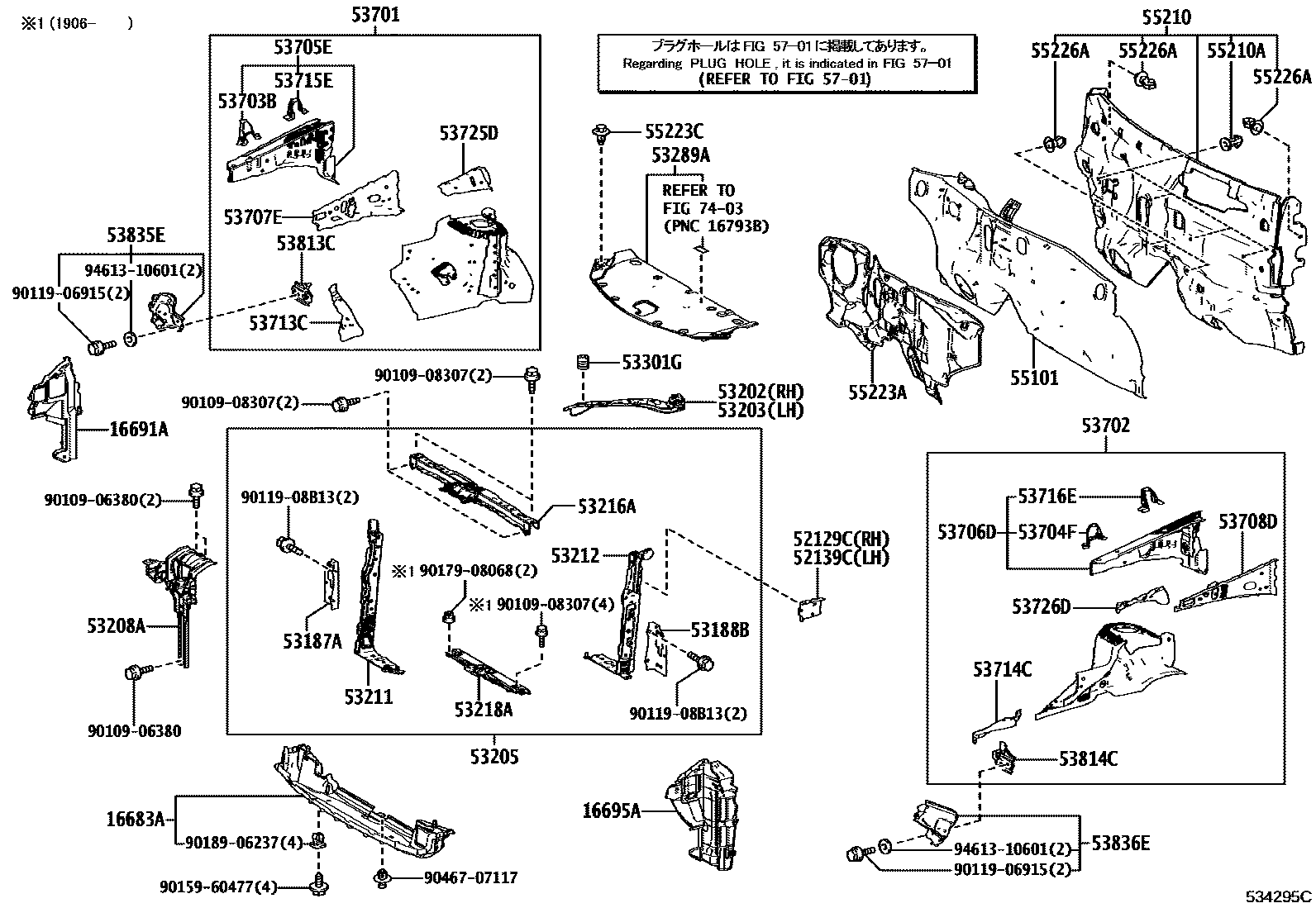

FRONT FENDER APRON & DASH PANEL
16683APLATE, RADIATOR LOWER AIR GUIDE
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
52129CARM, FRONT BUMPER, UPPER NO.2 RH
52139CARM, FRONT BUMPER, UPPER NO.2 LH
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53301GCUSHION, HOOD BUMPER
53703BRETAINER SUB-ASSY, FENDER APRON, RH
53704FRETAINER SUB-ASSY, FENDER APRON, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726DAPRON, FRONT FENDER NO.2 SIDE, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835EBRACE, FRONT FENDER TO APRON, RH
53836EBRACE, FRONT FENDER TO APRON, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
55226ACLIP
5701
7403
9010906380
main90109-06380
9010908307
main90109-08307
9011906915
main90119-06915
9011908B13
main90119-08B13
9015960477
main90159-60477
9017908068
main90179-08068
9018906237
main90189-06237
9046707117
main90467-07117
9461310601
main94613-10601
52 parts on this diagram · 1 diagram in section
