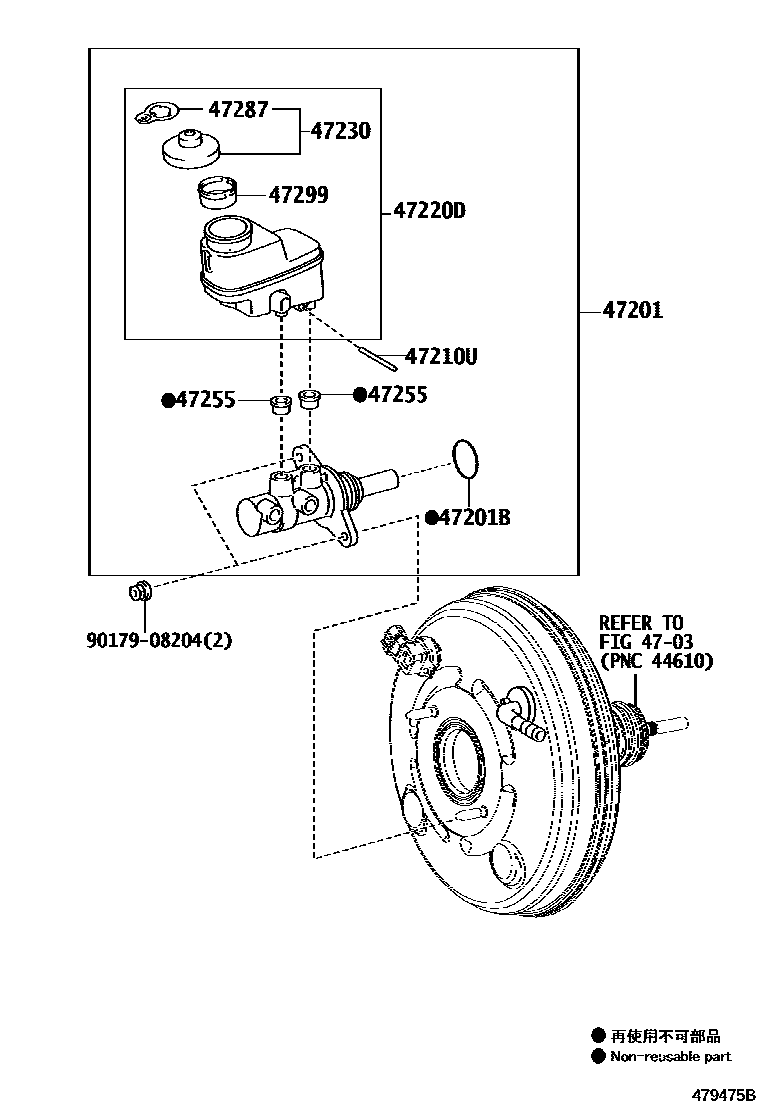

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42362iAGZ1#201407-201709

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAGZ1#201407-201709

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iAGZ1#201407-201709

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-42100iAGZ1#201407-201709

main47220-48230iAYZ1#201407-201709

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAGZ1#201407-201709

main47230-47090iAYZ1#201612-201709

main47230-58010iAYZ1#201407-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iAGZ1#201407-201709

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAGZ1#201407-201709

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iAGZ1#201407-201709

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
