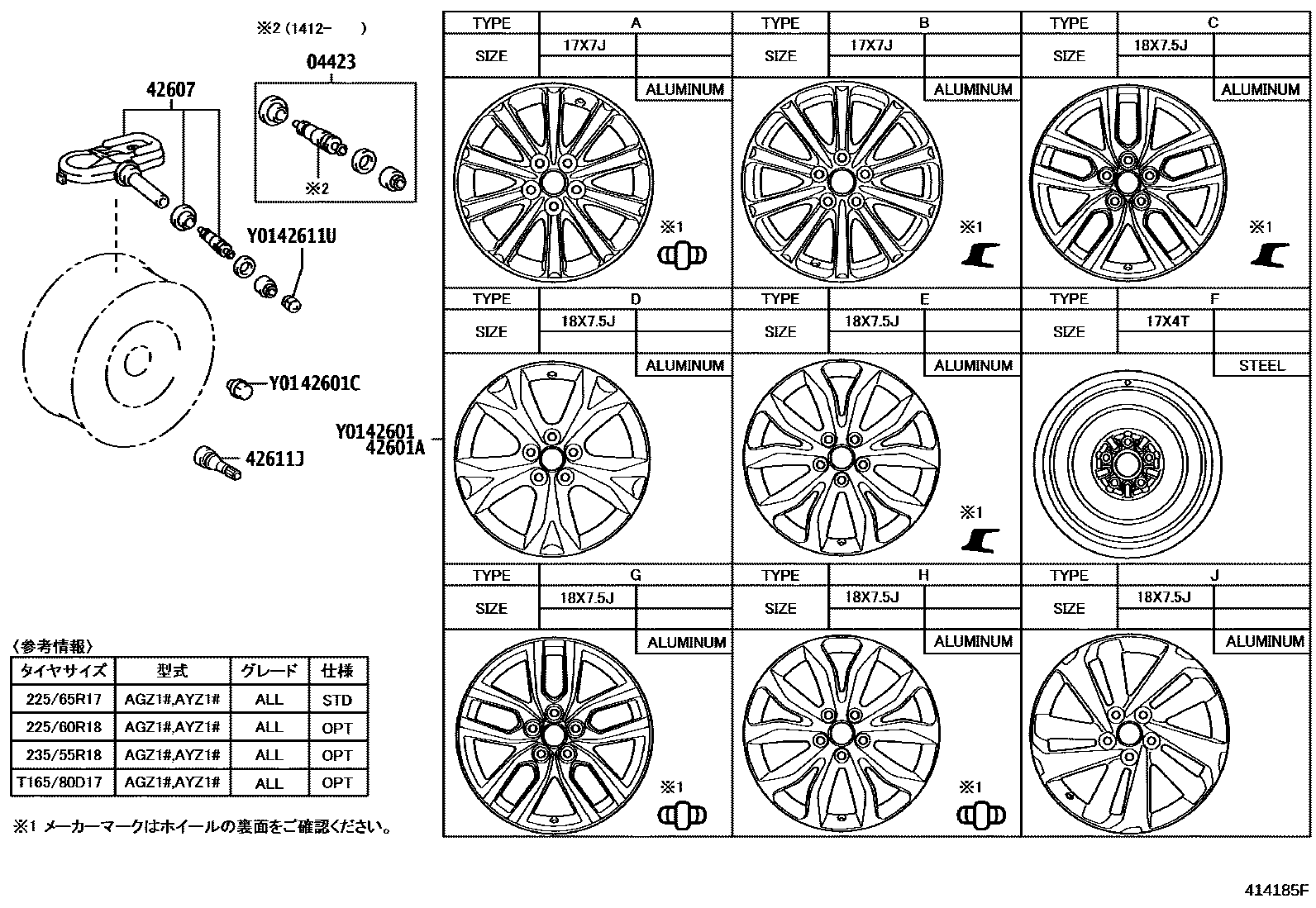

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1��������� 0003 1������������� 0004 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iAGZ1#,AYZ1#201407-201411

sub04423-33060

main04423-33060iAGZ1#,AYZ1#201412-201709

42601WHEEL, DISC

main4261A-78030iAGZ1#,AYZ1#201407-201802

sub4261A-78160

main4261A-78050iAGZ1#,AYZ1#201407-201410

sub4261A-78051

main4261A-78051iAGZ1#,AYZ1#201411-201709

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iAGZ1#,AYZ1#201407-201709

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30060iAGZ1#,AYZ1#201407-201709

42611JVALVE (FOR TUBELESS TIRE SPARE)

42611UCAP, TIRE VALVE

main90942-05042iAGZ1#,AYZ1#201407-201709

7 parts on this diagram · 4 diagrams in section
