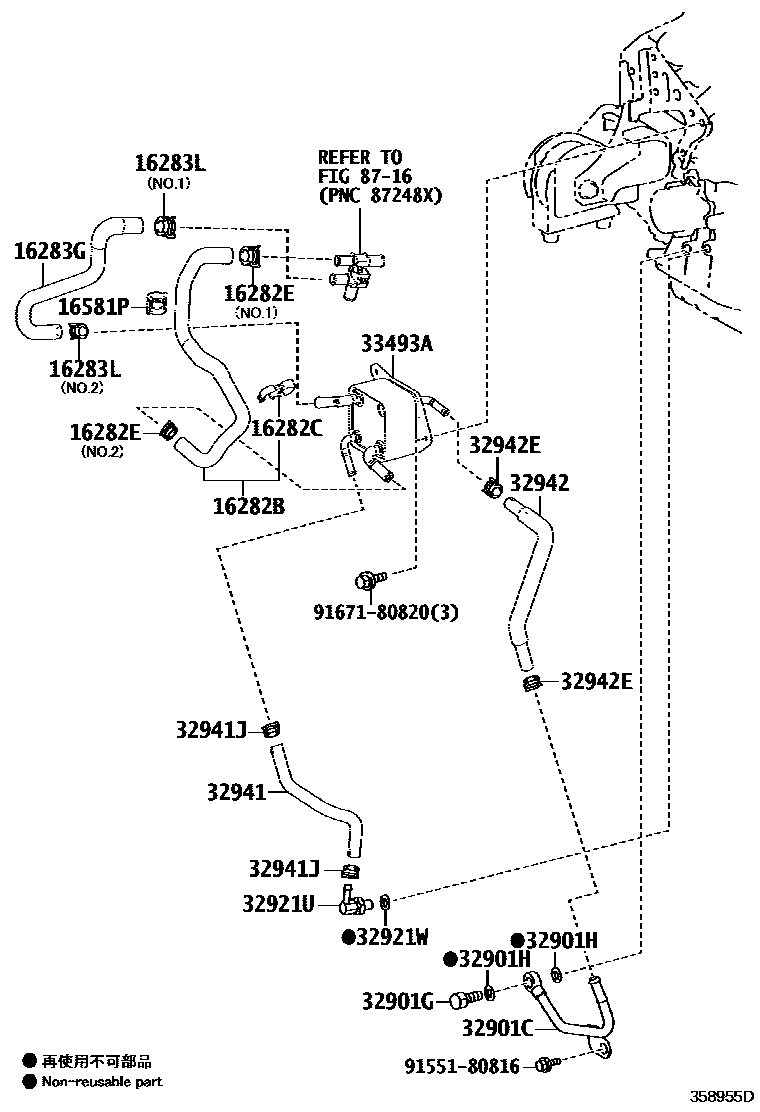

OIL COOLER & TUBE (ATM)

16282BHOSE, WATER BY-PASS, NO.5

main16282-36070i8ARFTS..AGZ1#201407-201709

16282CCLAMP(FOR WATER BY-PASS HOSE NO.5)

main23841-46050i8ARFTS..AGZ1#201407-201709

16282ECLIP(FOR WATER BY-PASS HOSE NO.5)

main96136-42101i8ARFTS..AGZ1#201407-201709

main96136-42501i8ARFTS..AGZ1#201407-201709

16283GHOSE, WATER BY-PASS, NO.6

main16283-36060i8ARFTS..AGZ1#201407-201709

16283LCLIP(FOR WATER BY-PASS HOSE NO.6)

main96136-42101i8ARFTS..AGZ1#201407-201709

main96136-42501i8ARFTS..AGZ1#201407-201709

16581PCLAMP, HOSE(FOR WATER BY-PASS HOSE NO.6)

main16581-36060i8ARFTS..AGZ1#201407-201709

32901CUNION SUB-ASSY, OIL COOLER

main32901-48010iAGZ1#201407-201709

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAGZ1#201407-201709

32901HGASKET(FOR OIL COOLER UNION)

main90430-14013iAGZ1#201407-201709

32921UELBOW(FOR OIL COOLER TUBE)

main90407-14032iAGZ1#201407-201709

32921WRING, O(FOR OIL COOLER TUBE ELBOW)

main90301-11031iAGZ1#201407-201709

32941HOSE, OIL COOLER INLET, NO.1

main32941-78010iAGZ1#201407-201709

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAGZ1#201407-201709

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-78010iAGZ1#201407-201709

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAGZ1#201407-201709

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-78010iAGZ1#201407-201709

8716

9155180816

main91551-80816

9167180820

main91671-80820
