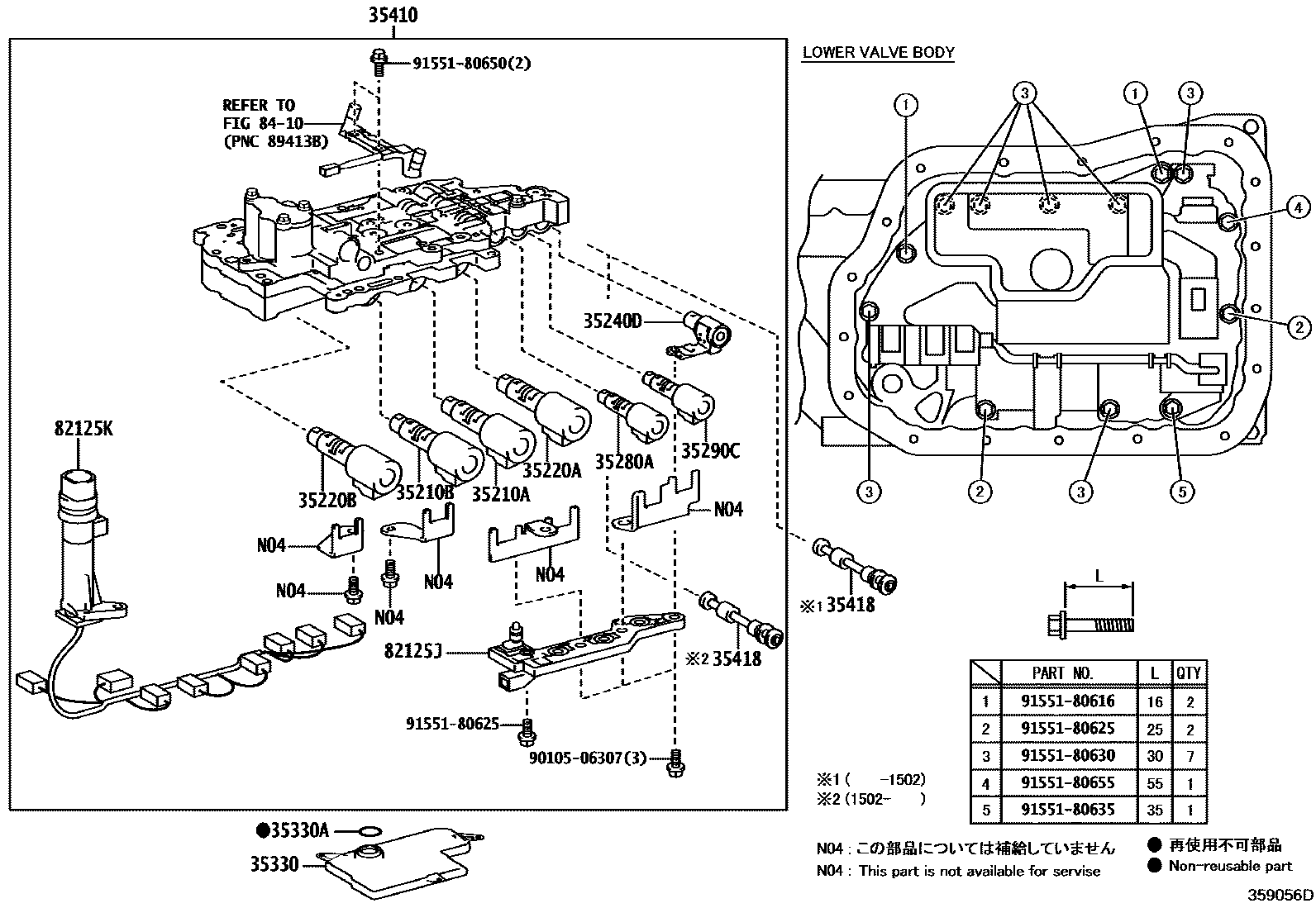

VALVE BODY & OIL STRAINER (ATM)

0001 1U661E,U661F 0002 1U661E,U661F

35210AVALVE, SOLENOID(SL1)

main35210-48030iAGZ1#201407-201709

35210BVALVE, SOLENOID(SL3)

main35210-48030iAGZ1#201407-201709

35220AVALVE, SOLENOID(SL2)

main35220-33040iAGZ1#201407-201709

35220BVALVE, SOLENOID(SL4)

main35220-33040iAGZ1#201407-201709

35240DVALVE, SOLENOID(SL)

main35240-73010iAGZ1#201407-201709

35280AVALVE, SOLENOID(SLU)

main35280-48020iAGZ1#201407-201709

35290CVALVE, SOLENOID(SLT)

main35290-48020iAGZ1#201407-201709

35330STRAINER ASSY, VALVE BODY OIL

main35330-48020iAGZ1#201407-201709

35330ARING, O (FOR OIL STRAINER)

main90301-27015iAGZ1#201407-201709

35410BODY ASSY, TRANSMISSION VALVE

main35410-48050iAGZ1#201407-201501

sub35410-48051

main35410-48051iAGZ1#201502-201709

35418VALVE, MANUAL

main35418-73010iAGZ1#201407-201709

82125JWIRE, TRANSMISSION

main82125-33150iAGZ1#201407-201807

sub82125-33151

main82125-33151iAGZ1#201808

82125KWIRE, TRANSMISSION

main82125-78010iAGZ1#201407-201709

8410

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180650

main91551-80650

9155180655

main91551-80655

21 parts on this diagram · 2 diagrams in section
