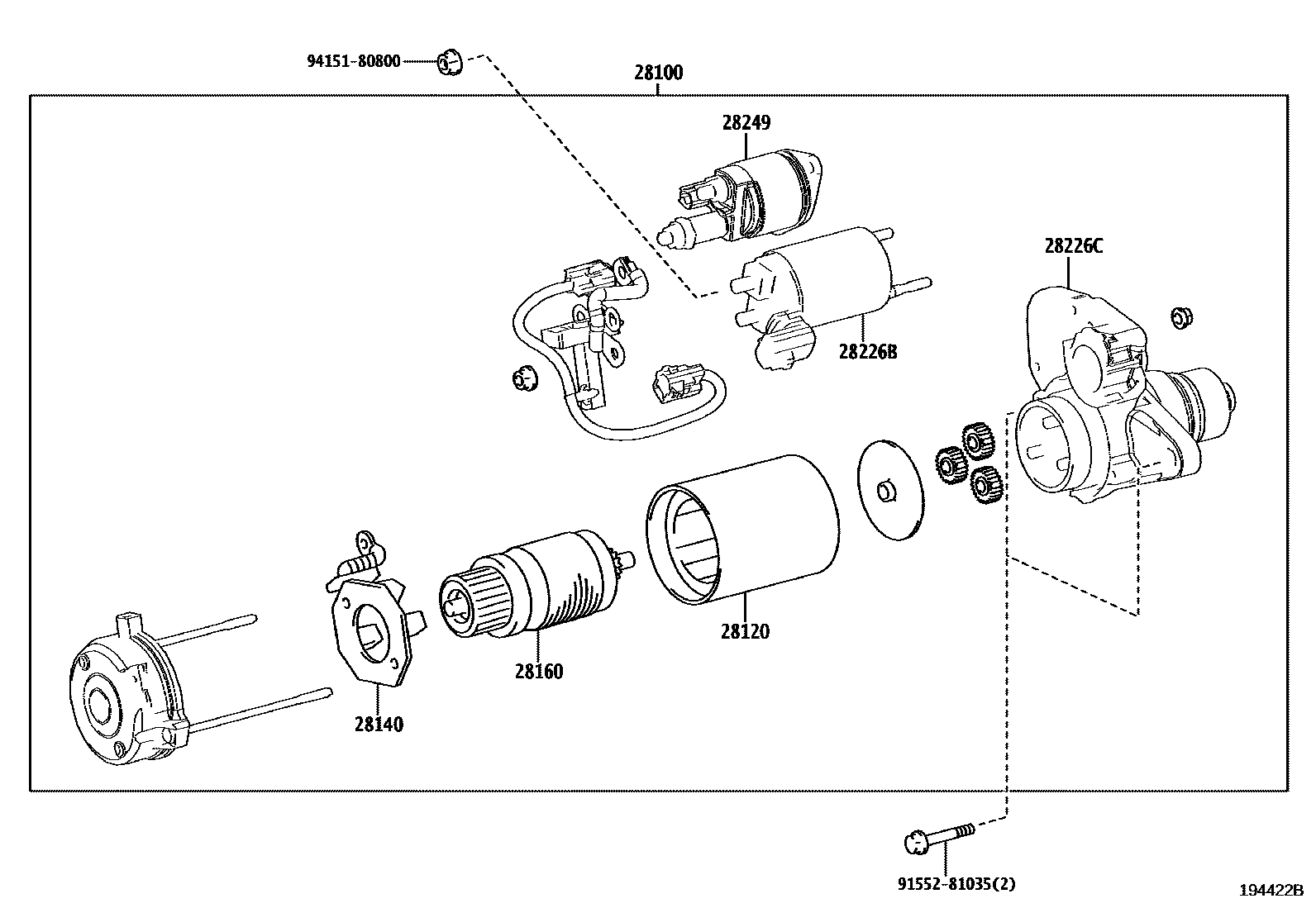

STARTER

28100STARTER ASSY

main28100-36110i8ARFTS..AGZ1#201709-201811

main28100-36111i8ARFTS..AGZ1#201812

28120YOKE ASSY, STARTER

main28120-36110i8ARFTS..AGZ1#201709

28140HOLDER ASSY, STARTER BRUSH

main28140-36110i8ARFTS..AGZ1#201407-201709

28160ARMATURE ASSY, STARTER

main28160-36110i8ARFTS..AGZ1#201709

main28160-37100i8ARFTS..AGZ1#201503-201701

main28160-38070i8ARFTS..AGZ1#201407-201503

28226BSTARTER KIT, REPAIR SERVICE

main28226-36110i8ARFTS..AGZ1#201407-201709

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-36100i8ARFTS..AGZ1#201407-201709

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-36110i8ARFTS..AGZ1#201407-201709

9155281035

main91552-81035

9415180800

main94151-80800

9 parts on this diagram · 1 diagram in section
