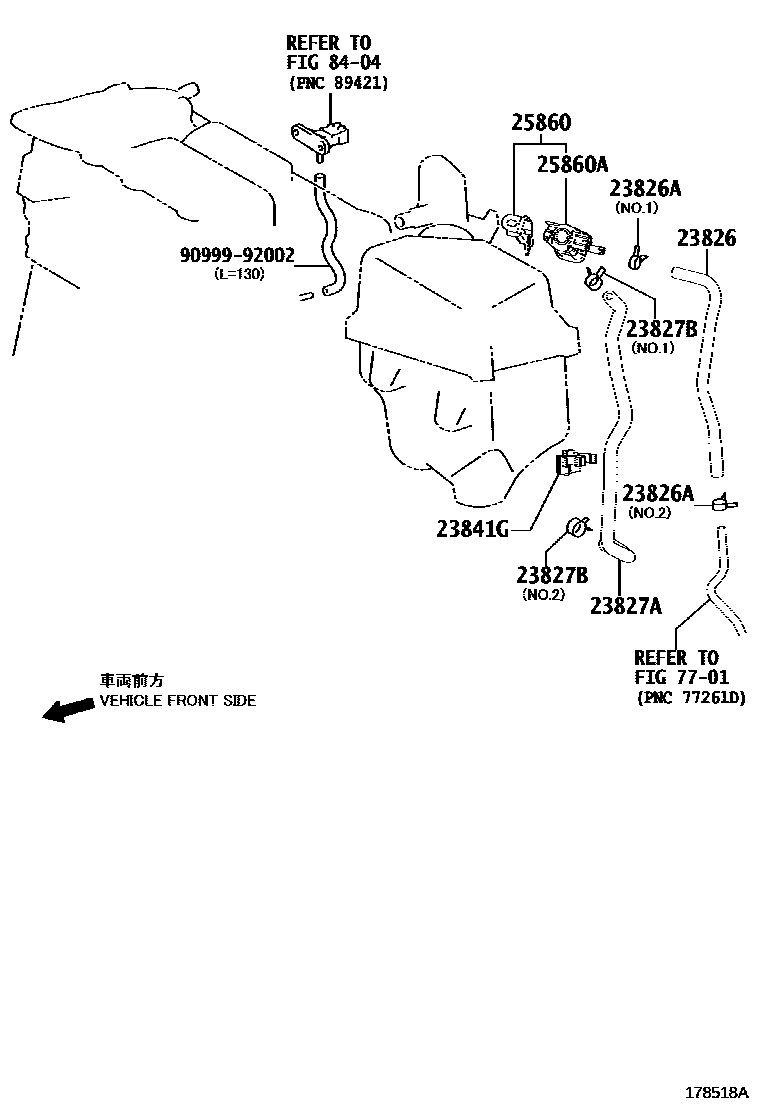

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-36120i2ARFXE..AYZ1#201407-201709

main23826-36140i8ARFTS..AGZ1#201407-201709

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2ARFXE..AYZ1#201407-201709

main96136-41501i8ARFTS..AGZ1#201407-201709

main96136-41501i8ARFTS..AGZ1#201407-201709

main96136-41901i8ARFTS..AGZ1#201712

main96137-41901i8ARFTS..AGZ1#201407-201711

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-36140i2ARFXE..AYZ1#201407-201709

main23827-36150i8ARFTS..AGZ1#201407-201709

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i2ARFXE..AYZ1#201407-201709

main90466-16004i2ARFXE..AYZ1#201407-201709

main96136-42201i8ARFTS..AGZ1#201407-201709

23841GCLAMP, FUEL HOSE

main23841-31100i8ARFTS..AGZ1#201407-201709

main77281-33040i2ARFXE..AYZ1#201407-201709

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-36090i2ARFXE..AYZ1#201407-201709

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12276i2ARFXE..AYZ1#201407-201709

7701

8404

9099992002

main90999-92002

10 parts on this diagram · 2 diagrams in section
