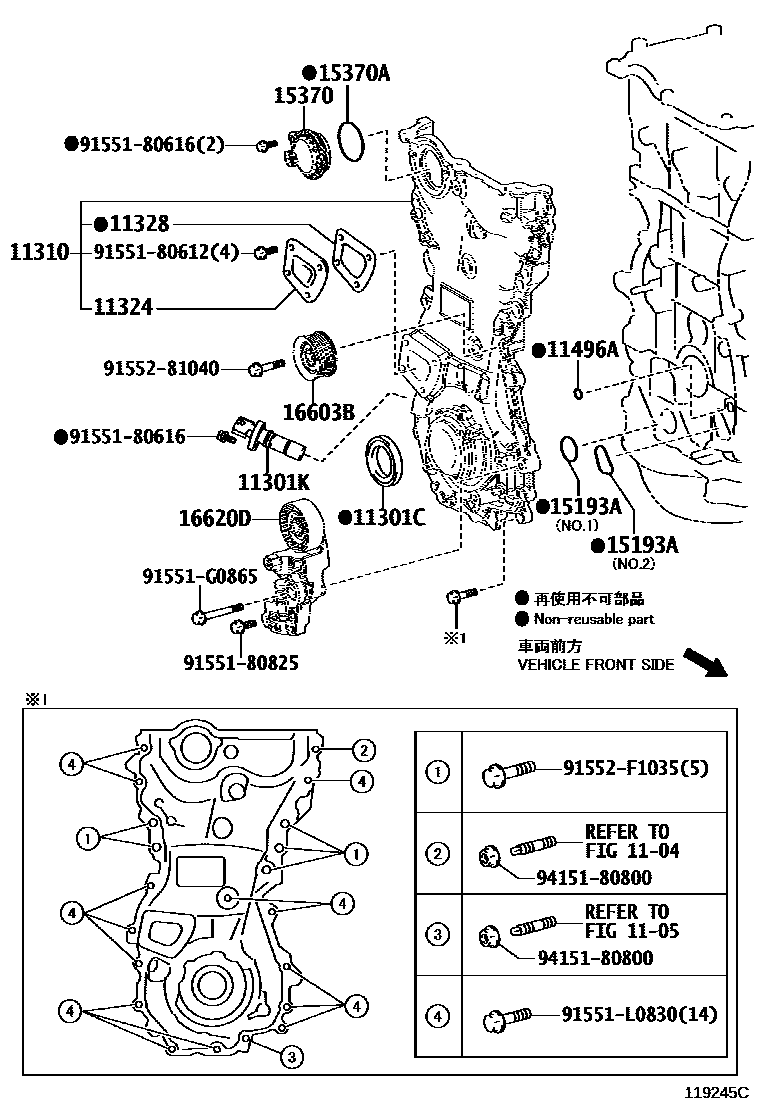

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1104

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFXE..AYZ1#201408-201903

sub90311-42061

main90311-42051i2ARFXE..AYZ1#201407-201709

main90311-42061i2ARFXE..AYZ1#201903

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFXE..AYZ1#201407-201709

main90919-05088i8ARFTS..AGZ1#201407-201709

11310COVER ASSY, TIMING CHAIN

main11310-36020i2ARFXE..AYZ1#201407-201709

main11310-36060i8ARFTS..AGZ1#201407-201709

11324PLATE, TIMING CHAIN COVER

main11324-36010i2ARFXE..AYZ1#201407-201709

main11324-36020i8ARFTS..AGZ1#201407-201709

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-36020i2ARFXE..AYZ1#201407-201709

main11328-36030i8ARFTS..AGZ1#201407-201709

11496AGASKET, OIL HOLE COVER

main11496-36010i2ARFXE..AYZ1#201407-201709

main11496-36020i8ARFTS..AGZ1#201407-201709

15193AGASKET, OIL PUMP

main15193-36010i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

main15197-36010i2ARFXE..AYZ1#201407-201709

main15197-36020i8ARFTS..AGZ1#201407-201709

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-36010i8ARFTS..AGZ1#201407-201709

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-50003i8ARFTS..AGZ1#201407-201709

16603BPULLEY SUB-ASSY, IDLER

main16603-36010i8ARFTS..AGZ1#201407-201709

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-36060i8ARFTS..AGZ1#201407-201409

sub16620-36061

main16620-36061i8ARFTS..AGZ1#201409-201709

9155180612

main91551-80612

9155180616

main91551-80616

9155180825

main91551-80825

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281040

main91552-81040

91552F1035

main91552-F1035

9415180800

main94151-80800

21 parts on this diagram · 2 diagrams in section
