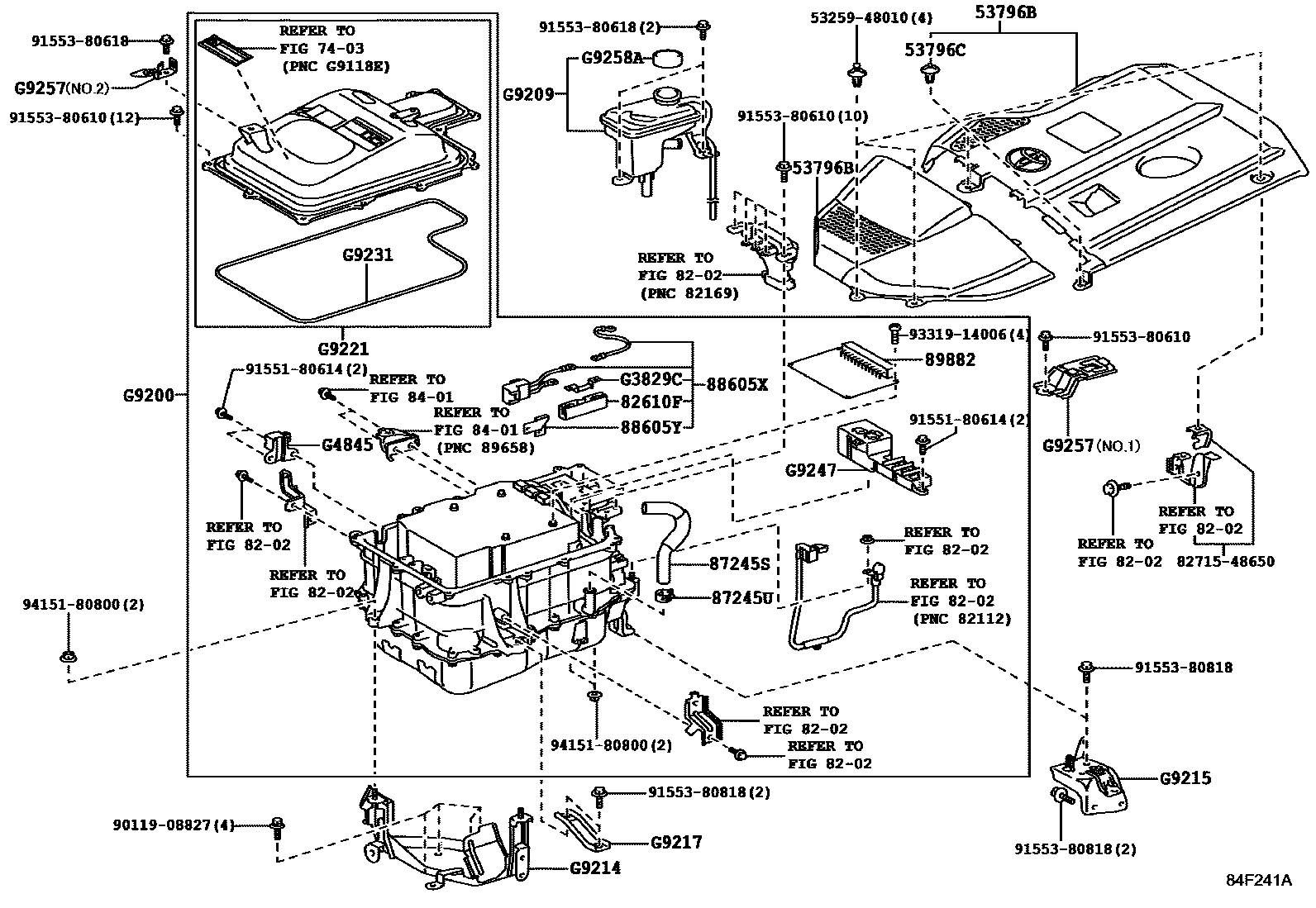

HEV INVERTER

0001 1������ASSY 0002 1KIT���� 0003 1

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main53796-48030iMHU28200503

main53796-48040iMHU28200503

53796CCLIP(FOR ENGINE ROOM SIDE COVER LH)

main90467-07210-C0×2iMHU28200503-200705

BLACK

7403

8202

82610FBLOCK ASSY, FUSE

main82610-48010iMHU28200503

8401

87245SHOSE, INVERTER WATER, NO.1

main87245-48700iMHU28200503-200705

87245UCLAMP OR CLIP (FOR WATER HOSE)

main90467-21010iMHU28200503-200705

88605XHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-48011iMHU28200503-200705

88605YBRACKET, COOLER

main88688-48141iMHU28200503

89882COMPUTER, MOTOR GENERATOR CONTROL

main89882-48051iMHU28200503-200705

G3829CFUSE, ELECTRIC VEHICLE

mainG382948010iMHU28200503

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484548010iMHU28200503-200705

G9200INVERTER ASSY, W/CONVERTER

mainG92A048020iMHU28200503

subG92A0-48080

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920948010iMHU28200503

G9214BRACKET, INVERTER, NO.1

mainG921448010iMHU28200503-200607

mainG921448011iMHU28200608

subG9214-48012

sub87245-48671

G9215BRACKET, INVERTER, NO.2

mainG921548010iMHU28200503

G9217BRACKET, INVERTER, NO.4

mainG921748020iMHU28200503

G9221COVER, INVERTER

mainG902248010iMHU28200503

G9231GASKET, INVERTER COVER

mainG923148010iMHU28200503

G9247SENSOR, INVERTER CURRENT, NO.1

mainG924748011iMHU28200503-200705

G9257BRACKET, INVERTER, NO.5

mainG925748020iMHU28200503

mainG925748050iMHU28200503

G9258ACAP, INVERTER RESERVE TANK

mainG925847011iMHU28200503

subG9258-28012

5325948010SUPPORT, RADIATOR CENTER

main53259-48010

8271548650BRACKET,WIRING HARNESS CLAMP

main82715-48650

9011908827

main90119-08827

9155180614

main91551-80614

9155380610

main91553-80610

9155380618

main91553-80618

9155380818

main91553-80818

9331914006

main93319-14006

9415180800

main94151-80800

32 parts on this diagram · 3 diagrams in section
