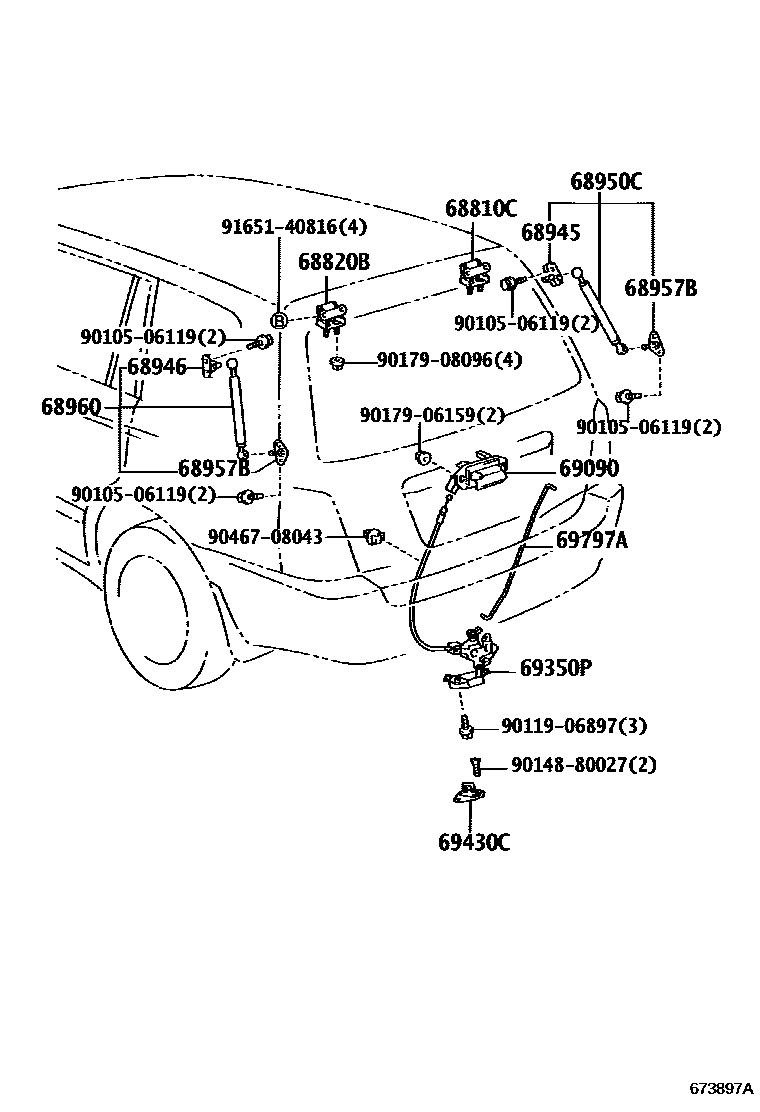

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68957BBRACKET, BACK DOOR STAY, LOWER
68960STAY ASSY, BACK DOOR, LH
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL
9010506119
main90105-06119
9011906897
main90119-06897
9014880027
main90148-80027
9017906159
main90179-06159
9017908096
main90179-08096
9046708043
main90467-08043
9165140816
main91651-40816
18 parts on this diagram · 1 diagram in section
