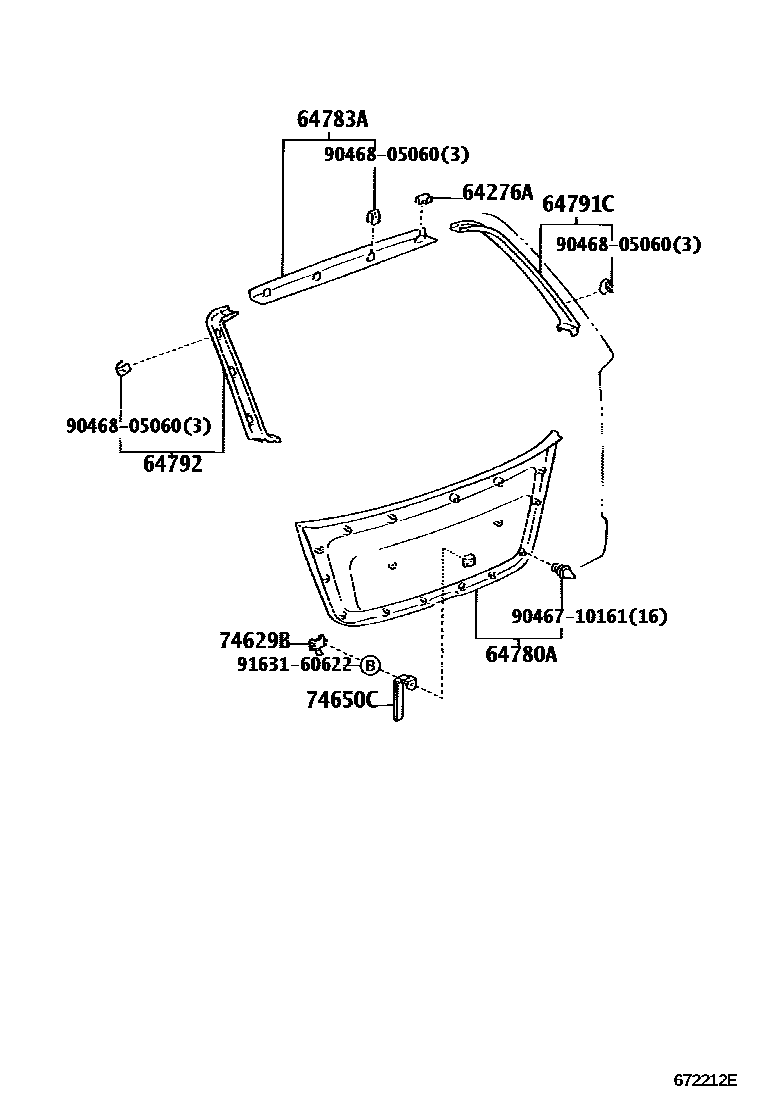

BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-42010iMHU28¥360200503

64780APANEL ASSY, BACK DOOR TRIM

main64780-48040-C0iMHU28200503-200705

BLACK,TRIM2#

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-48030-B3iMHU28200503-200705

GRAY,TRIM2#

sub64783-48030¥6,700

64791CCOVER, BACK DOOR TRIM, RH

main64791-48020-B3iMHU28200503-200705

GRAY,TRIM2#

sub64791-48020¥3,170

64792COVER, BACK DOOR TRIM, LH

main64792-48020-B3iMHU28200503-200705

GRAY,TRIM2#

sub64792-48020¥3,170

74629BCOVER, ASSIST STRAP HOLE

main74629-35010-C0iMHU28200503-200705

BLACK,TRIM2#

sub74629-35010¥370

74650CSTRAP ASSY, ASSIST, RH

main74650-48020-C0iMHU28200503-200705

BLACK,TRIM2#

sub74650-48020¥850

9046710161

main90467-10161¥90

9046805060

main90468-05060¥90

9163160622

main91631-60622¥70

10 parts on this diagram · 2 diagrams in section
