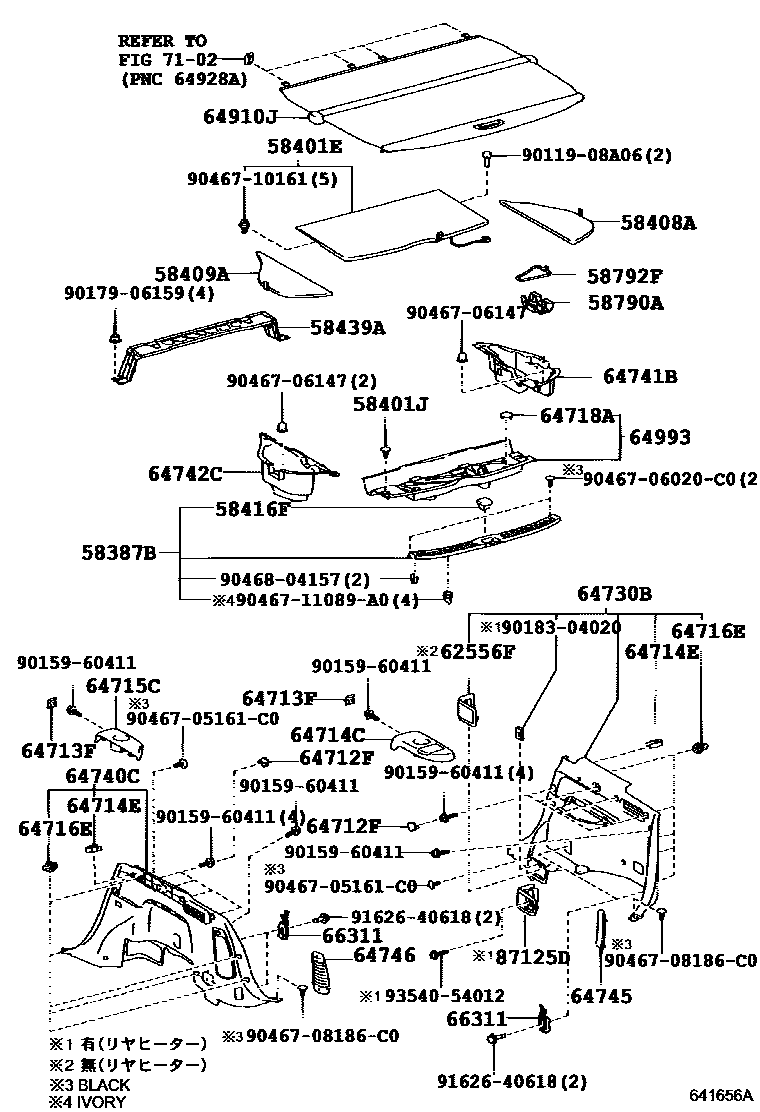

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58401EBOARD SUB-ASSY, DECK
BLACK,TRIM2#
58401JCLIP(FOR DECK BOAD)
58408ABOARD SUB-ASSY, DECK, NO.2
BLACK,TRIM2#
58409ABOARD SUB-ASSY, DECK, NO.3
BLACK,TRIM2#
58416FBRACKET, DECK BOARD, NO.1
58439ACHECK, DECK BOARD, NO.1
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
62556FCAP, REAR SEAT SIDE GARNISH
64712FCOVER, DECK SIDE TRIM, FRONT RH
64713FCOVER, DECK SIDE TRIM, FRONT LH
BLACK,TRIM2#
64714CCOVER, DECK SIDE TRIM, RH
64714ECLIP(FOR DECK TRIM SIDE COVER)
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
64730BPANEL ASSY, DECK TRIM SIDE, RH
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64910JCOVER ASSY, TONNEAU
BLACK,TRIM2#
64993BOX, DECK FLOOR, REAR
66311HOOK, ROPE
7102
87125DGRILLE, HEATER AIR OUTLET
9011908A06
main90119-08A06
9015960411
main90159-60411
9017906159
main90179-06159
9018304020
main90183-04020
9046705161C0
main90467-05161C0
9046706020C0
main90467-06020C0
9046706147
main90467-06147
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046711089A0
main90467-11089A0
9046804157
main90468-04157
9162640618
main91626-40618
9354054012
main93540-54012
41 parts on this diagram · 1 diagram in section
