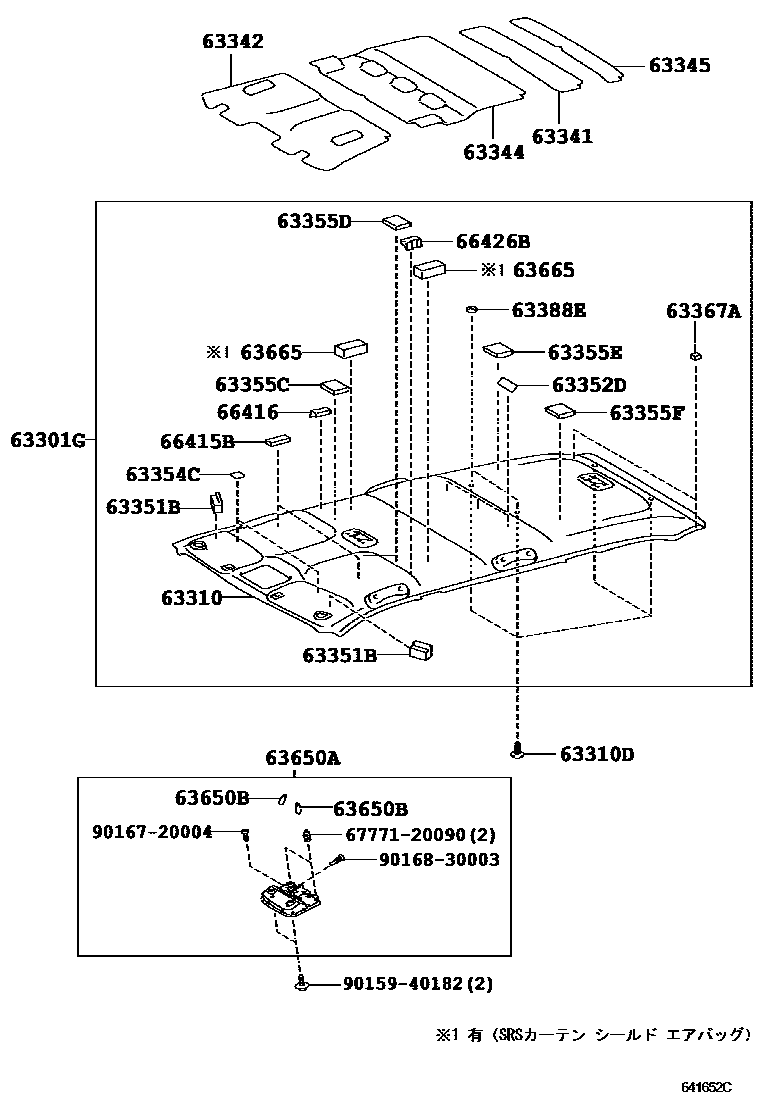

ROOF HEADLINING & SILENCER PAD
63301GHEADLINING SUB-ASSY, ROOF, FRONT
LT. GRAY,TRIM2#
sub63310-48220
sub63351-48010
sub63352-48030
sub63354-48040
sub63355-48050
sub63355-48060
sub63367-48010
sub63388-48010
sub66415-48030
sub66416-48030
sub66426-48050
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#
63310DCLIP, ROOF HEADLINING
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63344PAD, ROOF SILENCER, NO.4
63345PAD, ROOF SILENCER, NO.5
63351BPAD, ROOF HEADLINING
63352DPAD, ROOF HEADLINING, NO.2
63354CPAD, ROOF HEADLINING FRONT SIDE
63355CPAD, ROOF HEADLINING, RH
63355DPAD, ROOF HEADLINING, LH
63355EPAD, ROOF HEADLINING, NO.2 RH
63355FPAD, ROOF HEADLINING, NO.2 LH
63367ASUPPORT, ROOF HEADLINING, C NO.1
63388ESTOPPER, ROOF HEADLINING TRIM CLIP
63650ABOX ASSY, ROOF CONSOLE
63650BBULB, ROOF CONSOLE BOX
63665SPACER, ROOF HEADLINING
main63665-48010
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66416SPACER, SIDE RAIL, REAR NO.3 RH
66426BSPACER, SIDE RAIL, REAR NO.3 LH
6777120090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20090
9015940182
main90159-40182
9016720004
main90167-20004
9016830003
main90168-30003
26 parts on this diagram · 2 diagrams in section
