FRONT FENDER APRON & DASH PANEL

52115JSUPPORT, FRONT BUMPER SIDE, RH

main52115-48030iMHU28200503-200705

52116GSUPPORT, FRONT BUMPER SIDE, LH

main52116-48050iMHU28200503-200705

53201SUPPORT SUB-ASSY, RADIATOR

main53201-48070iMHU28200503-200705

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-48040iMHU28200503-200705

53211SUPPORT, RADIATOR, RH

main53211-48050iMHU28200503

53212SUPPORT, RADIATOR, LH

main53212-48030iMHU28200503

53213ASUPPORT, RADIATOR, UPPER RH

main53213-48050iMHU28200503

53214ASUPPORT, RADIATOR, UPPER LH

main53214-48050iMHU28200503

53216ASUPPORT, RADIATOR, UPPER

main53216-48030iMHU28200503

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-48020iMHU28200503

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-48030iMHU28200503-200705

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-48030iMHU28200503-200705

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-30010iMHU28200503

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-48020iMHU28200503

53288BEXTENSION, RADIATOR SUPPORT, LH

main53287-48020iMHU28200503

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-48050iMHU28200503

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-48050iMHU28200503

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53681-48030iMHU28200503

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-48051iMHU28200503

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-48020iMHU28200503

53711BAPRON, FRONT FENDER, FRONT RH

main53711-48021iMHU28200503

53712BAPRON, FRONT FENDER, FRONT LH

main53712-48020iMHU28200503

53717DGUSSET, FENDER APRON, RH

main53717-48020iMHU28200503

53718DGUSSET, FENDER APRON, LH

main53718-48020iMHU28200503

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-48020iMHU28200503

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-48020iMHU28200503

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-48010iMHU28200503

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-48010iMHU28200503

53736SEAL, FRONT FENDER APRON, RH

main53736-33030iMHU28200503-200602

main53736-33040iMHU28200603

53737BSEAL, FRONT FENDER APRON, LH

main53737-48030iMHU28200503

53737LGUSSET, FRONT FENDER APRON WIND GUIDE, RH

main53737-48040iMHU28200503

53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH

main53738-48020iMHU28200503

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-48010iMHU28200503

55101PANEL SUB-ASSY, DASH

main55101-48120iMHU28200503-200705

55210INSULATOR ASSY, DASH PANEL

main55210-48070iMHU28200503

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-48010iMHU28200503

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-48010iMHU28200503

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-48020iMHU28200503

55217ARETAINER, DASH PANEL SILENCER

main55217-48020iMHU28200503

55223AINSULATOR, DASH PANEL, OUTER

main55223-48110iMHU28200503

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iMHU28200503

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-48010iMHU28200503

55722BBRACE, COWL TOP TO COWL, INNER NO.2

main55722-48030iMHU28200503

55723HREINFORCEMENT, COWL TOP SIDE, RH

main55723-48020iMHU28200503

55724DREINFORCEMENT, COWL TOP SIDE, LH

main55724-48020iMHU28200503

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-48030iMHU28200503

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-48030iMHU28200503

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-48060iMHU28200503

5338448010BAR, HOOD SILENCER SUPPORT

main53384-48010

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9010506137

main90105-06137

9010506260

main90105-06260

9011906355

main90119-06355

9011906680

main90119-06680

9046705131C0

main90467-05131C0

9046707041C0

main90467-07041C0

9046708143

main90467-08143

9054115019

main90541-15019

9090467040

main90904-67040

9095001813

main90950-01813

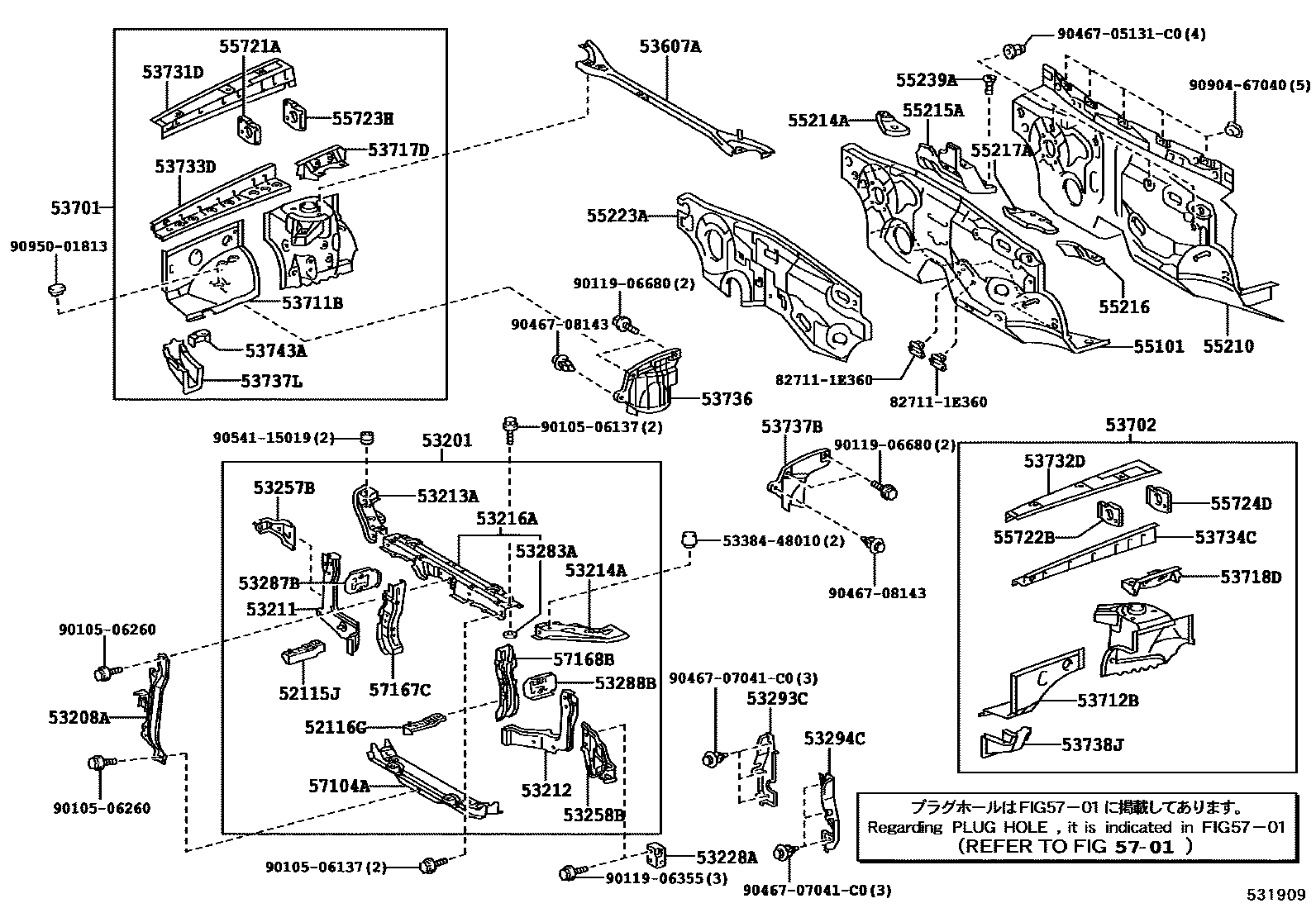

61 parts on this diagram · 1 diagram in section
