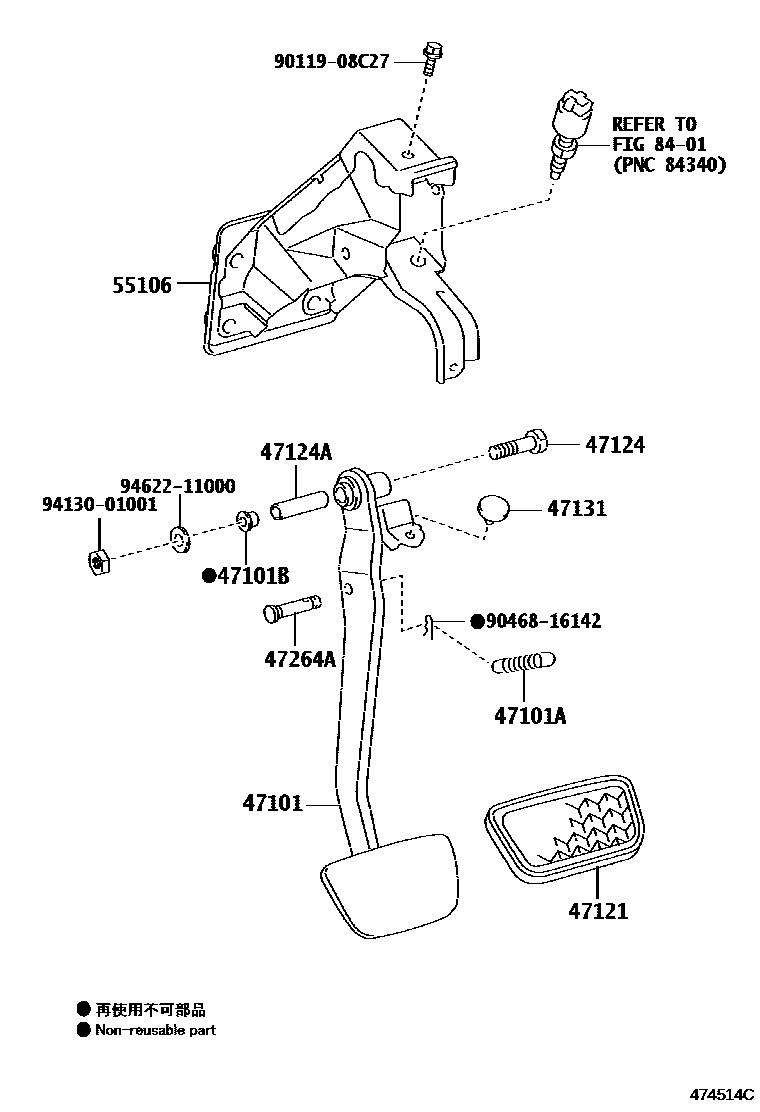

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-48090iMHU28200503

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14052iMHU28200503

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMHU28200503

47121PAD, BRAKE PEDAL

main47121-50020iMHU28200503

47124SHAFT, BRAKE PEDAL

main90101-10164iMHU28200503-200705

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10105iMHU28200503

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMHU28200503

47264APIN(FOR PUSH ROD)

main90249-10064iMHU28200503

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48142iMHU28200503

8401

9011908C27

main90119-08C27

9046816142

main90468-16142

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 1 diagram in section
