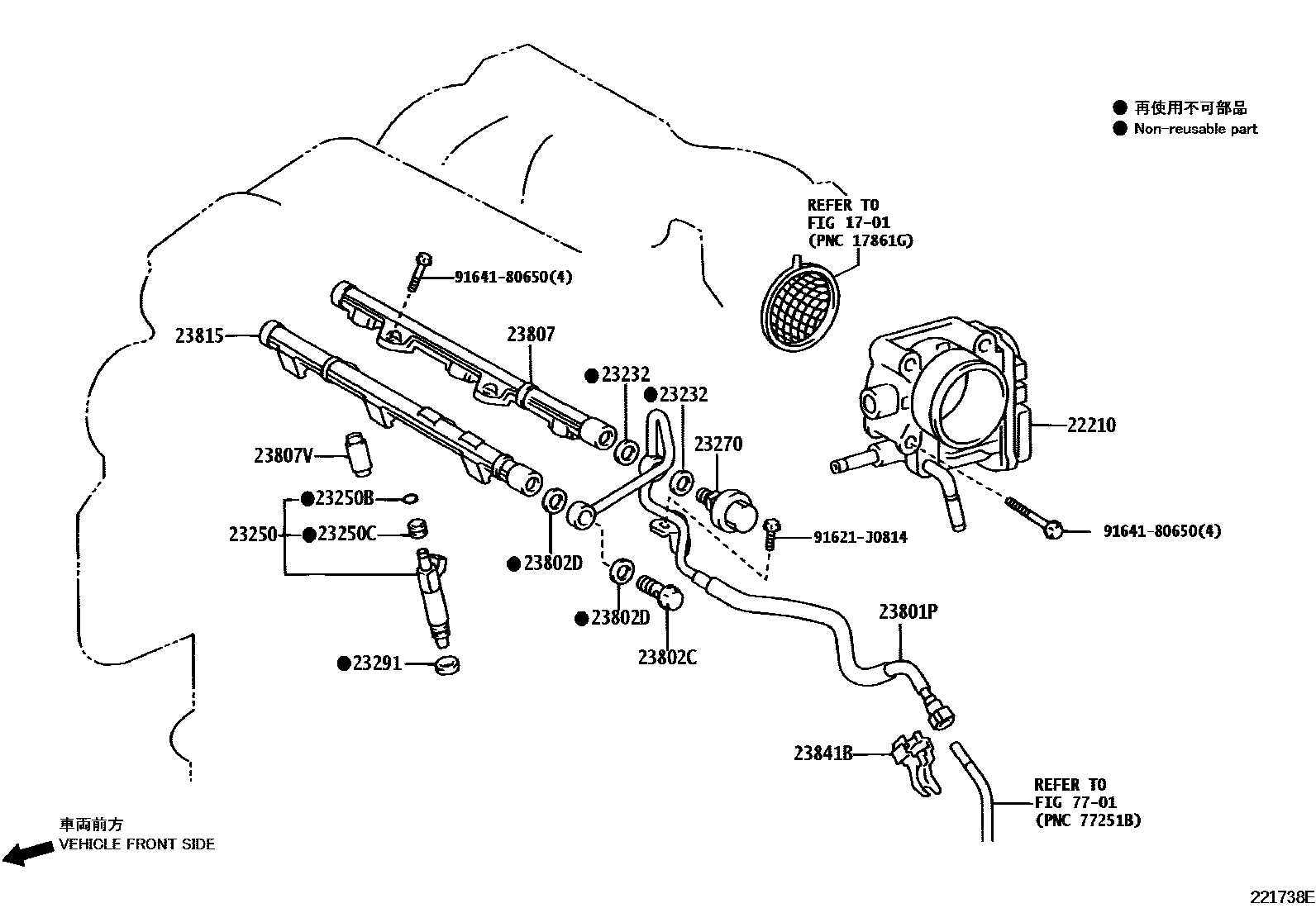

FUEL INJECTION SYSTEM

1701

22210BODY ASSY, THROTTLE

main22030-20060i3MZFE..MHU28¥83,600200503-200705

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i3MZFE..MHU28¥0200503-200705

23250INJECTOR ASSY, FUEL

main23209-20030i3MZFE..MHU28¥20,100200503-200705

sub23209-20040¥20,100

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3MZFE..MHU28¥140200503-200705

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3MZFE..MHU28¥230200503-200705

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-62011i3MZFE..MHU28¥6,400200503-200705

sub23207-20010¥6,400

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i3MZFE..MHU28¥310200503-200705

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20220i3MZFE..MHU28¥7,400200503-200705

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i3MZFE..MHU28¥390200503-200705

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026i3MZFE..MHU28¥90200503-200705

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20021i3MZFE..MHU28¥7,700200503-200705

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i3MZFE..MHU28¥160200503-200705

23815PIPE, FUEL DELIVERY, NO.2

main23815-20021i3MZFE..MHU28¥7,700200503-200705

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i3MZFE..MHU28¥370200503-200705

7701

91621J0814

main91621-J0814¥60

9164180650

main91641-80650¥130

18 parts on this diagram · 1 diagram in section
