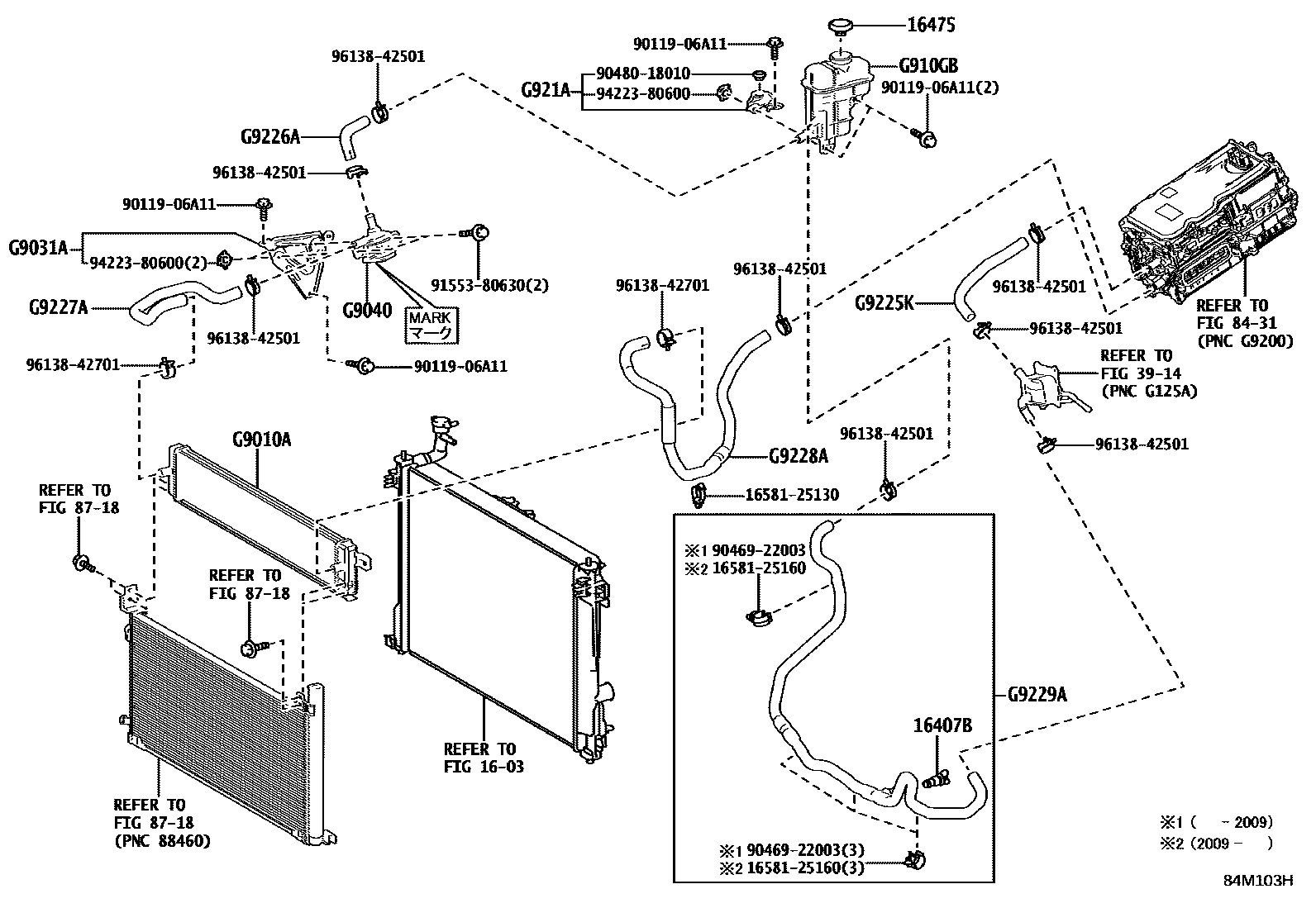

INVERTER COOLING

0001 1 0002 1 0003 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXUP85202210

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXUH8#202006-202210

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXUH8#202006-202112

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAXUH8#202006-202112

mainG914178010iAXUH8#202112-202210

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042010iAXUH8#202006-202112

mainG904048050iAXUH8#202112-202210

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAXUH8#202006-202210

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAXUH8#202006-202210

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542010iAXUH8#..S202210-202309

mainG922542020iAXUP85202210

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAXUH8#202006-202112

mainG922642020iAXUH8#202112-202210

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAXUH8#202006-202112

mainG922742020iAXUP85202210

mainG922778010iAXUH8#202112-202210

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842030iAXUH8#202006-202112

mainG922842040iAXUP85202210

mainG922842050iAXUH8#202112-202210

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAXUH8#202006-202112

mainG922942030iAXUP85202210

mainG922942040iAXUH8#202112-202210

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9046922003

main90469-22003

9048018010

main90480-18010

9155380630

main91553-80630

9422380600

main94223-80600

9613842501

main96138-42501

9613842701

main96138-42701

25 parts on this diagram · 3 diagrams in section
