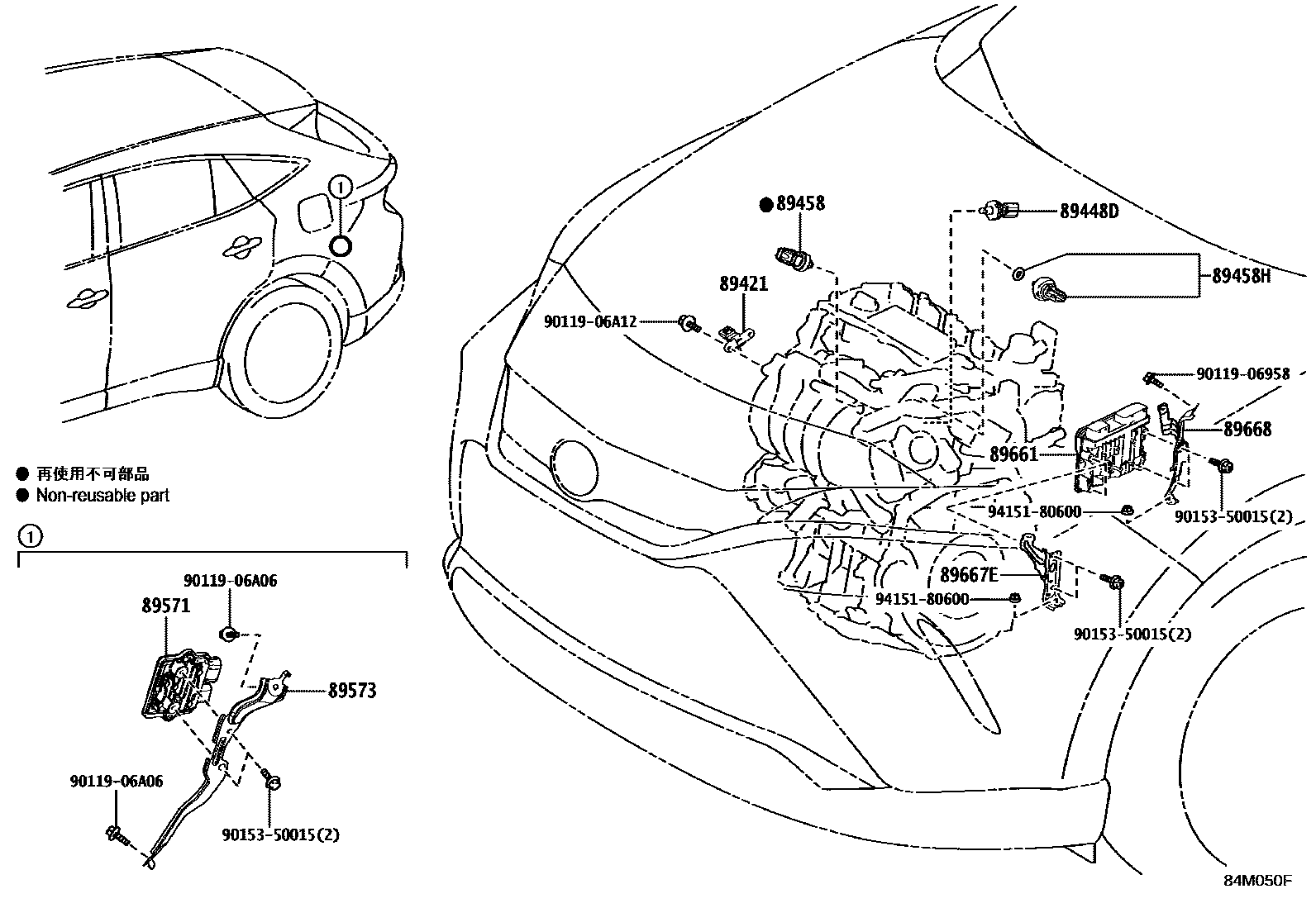

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXUH8#,MXUA85..S202006-202309

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXUH8#,MXUA8#202006-202309

89458SENSOR, FUEL PRESSURE

main89458-33030iAXUH8#,MXUA8#202006-202309

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXUH8#,AXUP85,MXUA8#202006-202303

main89458-33042iAXUH8#,MXUA8#202207-202309

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAXUP85202210

main89571-48010iAXUH8#,MXUA85..S202006-202309

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030iAXUH8#,MXUA8#202006-202309

89661COMPUTER, ENGINE CONTROL

main89661-48X50iMXUA80202210

main89661-4D100iMXUA85..S202210-202504

main89661-4D130iMXUA80202006-202210

main89661-4D140iMXUA85202006-202210

main89661-4D160iAXUH8#202006-202210

main89661-4D240iAXUH8#..G,Z202310-202504

main89661-4D780iAXUP85202210-202309

main89661-4D781iAXUP85202310-202402

main89661-4D800iAXUH8#..G,Z202210-202310

main89661-4D820iAXUP85202402-202504

main89661-4DA10iMXUA80202412

main89661-4DA20iMXUA85..G,Z202412-202504

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iMXUA8#202006-202309

main89667-42080iAXUH8#202006-202405

main89667-42081iAXUH8#,AXUP85..G,Z202406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080iMXUA8#202006-202309

main89668-42100iAXUH8#202006-202309

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
