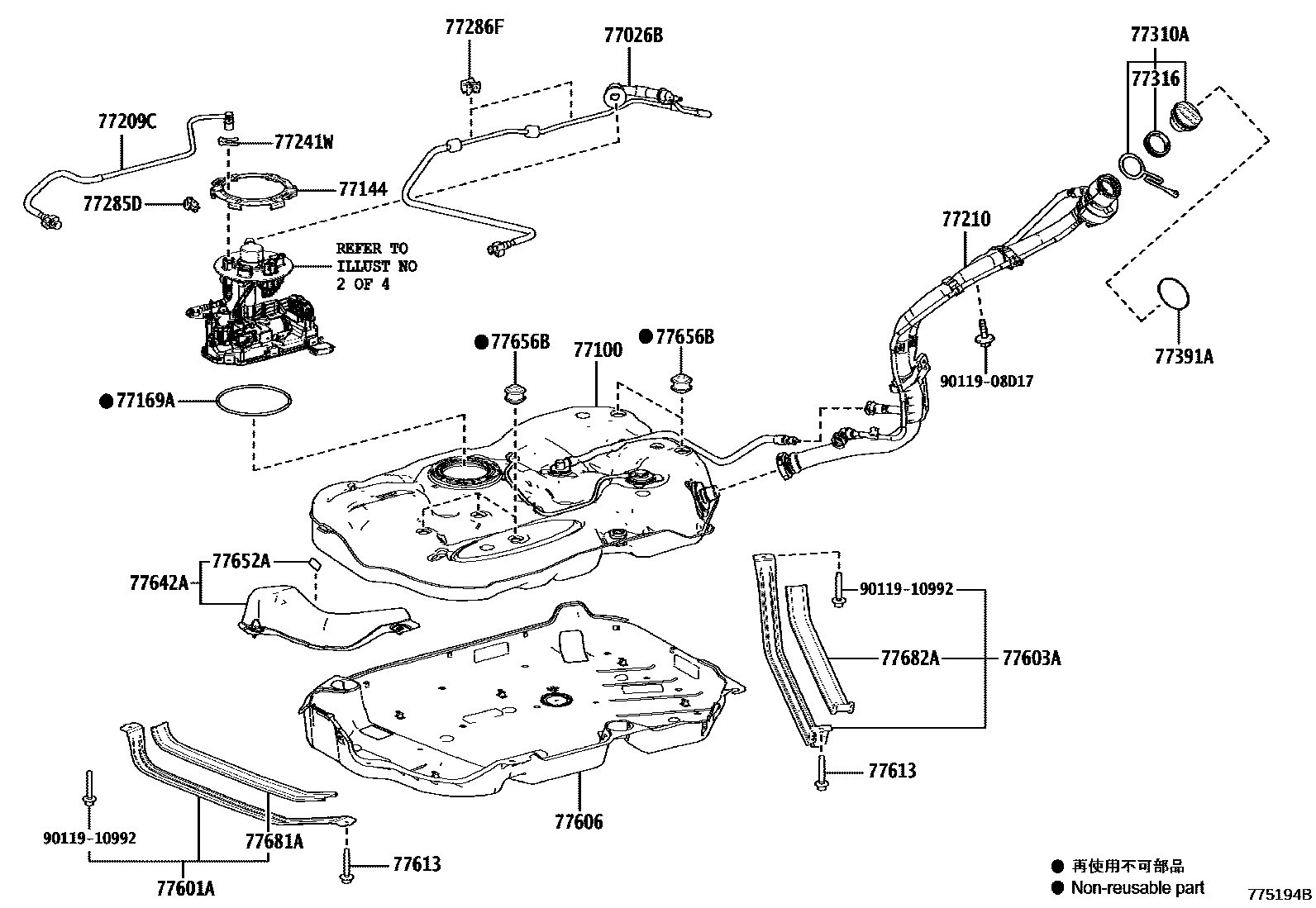

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1���������� 0005 1���������� 0006 1���������� 0007 1���������� 0008 1���������� 0009 1���������� 0010 1��������������(������) 0011 1��������������(�������)

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42050iMXUA80;MXUA85..G,Z202006-202309

main77026-42081iAXUH8#..S202006-202309

77100TANK ASSY, FUEL

main77001-42310iMXUA8#202006-202210

main77001-42340iMXUA80;MXUA85..G,Z202210-202309

main77001-42350iAXUH8#..G,Z202210-202309

main77001-42440iAXUP85202210-202402

main77001-42480iAXUP85202402

main77001-48360iAXUH8#202006-202210

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXUA85..S202006-202309

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAXUH8#202006-202210

main77169-47040iAXUH8#..S202210-202309

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42210iMXUA80;MXUA85..G,Z202210-202309

main77209-42220iMXUA8#202006-202210

main77209-42230iAXUH8#..S202210-202309

main77209-42241iAXUH8#202006-202210

main77209-42250iAXUP85202210

77210PIPE ASSY, FUEL TANK FILLER

main77210-48420iMXUA8#202006-202210

main77210-48440iAXUH8#202006-202210

main77210-48640iMXUA80;MXUA85..G,Z202210-202309

main77210-48650iAXUH8#..G,Z202210-202309

main77210-48660iAXUP85202210

77241WCLIP, TUBE JOINT

main77241-33011iAXUH8#,MXUA8#202006-202108

main77241-60550iMXUA80;AXUH8#,MXUA85..G,Z202109-202309

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAXUH8#,MXUA8#202006-202309

77286FCLAMP, FUEL TUBE, NO.2

main77286-30180iAXUH8#..S202006-202309

main77286-42170iAXUP85202210

77310ACAP ASSY, FUEL TANK

main77300-12020iAXUH8#,MXUA8#202006-202210

main77300-33040iAXUP85202210

main77300-48020iMXUA80;AXUH8#,MXUA85..G,Z202210-202309

77316GASKET, FUEL TANK CAP

main77316-52040iAXUH8#,MXUA8#202006-202210

main77316-75020iAXUH8#,MXUA85..S202210-202309

77391ARING, FUEL INLET BOX

main77391-12020iAXUH8#,MXUA8#202006-202309

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120iAXUH8#202006-202309

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-42050iAXUH8#..S202006-202309

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42030iMXUA8#202006-202309

main77606-42060iAXUH8#202006-202309

main77606-42070iAXUP85202210-202402

main77606-42080iAXUP85202402

77613BOLT, FUEL TANK BAND SET

main90119-10A05iMXUA85..S202006-202309

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAXUH8#202006-202309

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iMXUA8#202006-202210

main77652-33060iAXUP85202210

main77652-42040iAXUH8#202006-202309

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAXUH8#202006-202309

77681ASEAT, FUEL TANK BAND

main77681-42040iAXUH8#..S202006-202309

main77682-47020iAXUP85202210

main77682-75010iMXUA85..S202006-202309

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAXUH8#202006-202309

9011908D17

main90119-08D17

9011910992

main90119-10992
