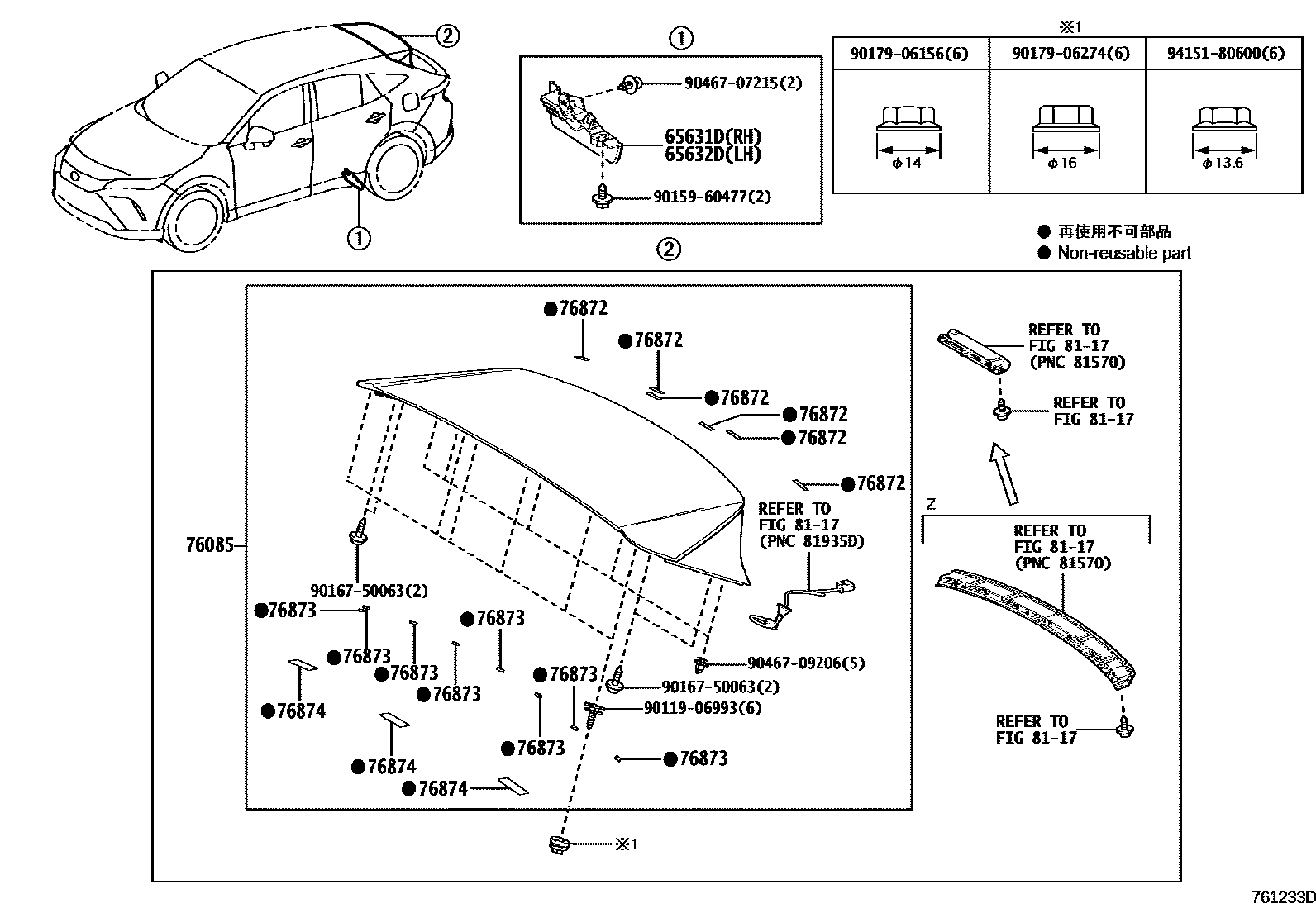

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-48020iAXUH8#,MXUA85..S202006-202309

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-48020iAXUH8#,MXUA8#202006-202309

76085SPOILER SUB-ASSY, REAR

main76085-48911-C0iAXUP85..G202210-202309

BLACK,089 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8

main76085-48911-C0iAXUH8#,MXUA8#..G,S202006-202210

BLACK,070 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8

main76085-48911-C0iAXUP85..G202210

BLACK,089 ,1G3 ,202 ,219 ,3T3

main76085-48912-A0iAXUH8#,MXUA8#..Z202006-202210

WHITE PEARL CS.,070

main76085-48912-A1iAXUH8#,AXUP85,MXUA8#..Z202210

PLATINUM WHITE PEARL MC.,089

main76085-48912-B0iAXUH8#,AXUP85,MXUA8#..Z202006-202210

SLATE GRAY ME.,1K9

main76085-48912-B1iAXUH8#,AXUP85,MXUA8#..Z202210

GRAY ME.,1G3

main76085-48912-C0iAXUH8#,MXUA8#..Z202006-202210

BLACK,202

main76085-48912-C1iAXUH8#,AXUP85,MXUA8#..Z202006-202210

PRECIOUS BLACK,219

main76085-48912-D0iAXUH8#,AXUP85,MXUA8#..Z202006-202210

RED MC.,3T3

main76085-48912-E0iAXUH8#,MXUA8#..Z202006-202210

STEEL BLONDE ME.,4X1

main76085-48912-J0iAXUH8#,AXUP85,MXUA8#..Z202006-202210

DK. BLUE MC.,8X8

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48050iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48060iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

76874PROTECTOR, REAR SPOILER, NO.3

main76874-48040iAXUH8#,MXUA85..S202006-202309

8117

9011906993

main90119-06993

9015960477

main90159-60477

9016750063

main90167-50063

9017906156

main90179-06156

9017906274

main90179-06274

9046707215

main90467-07215

9046709206

main90467-09206

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
