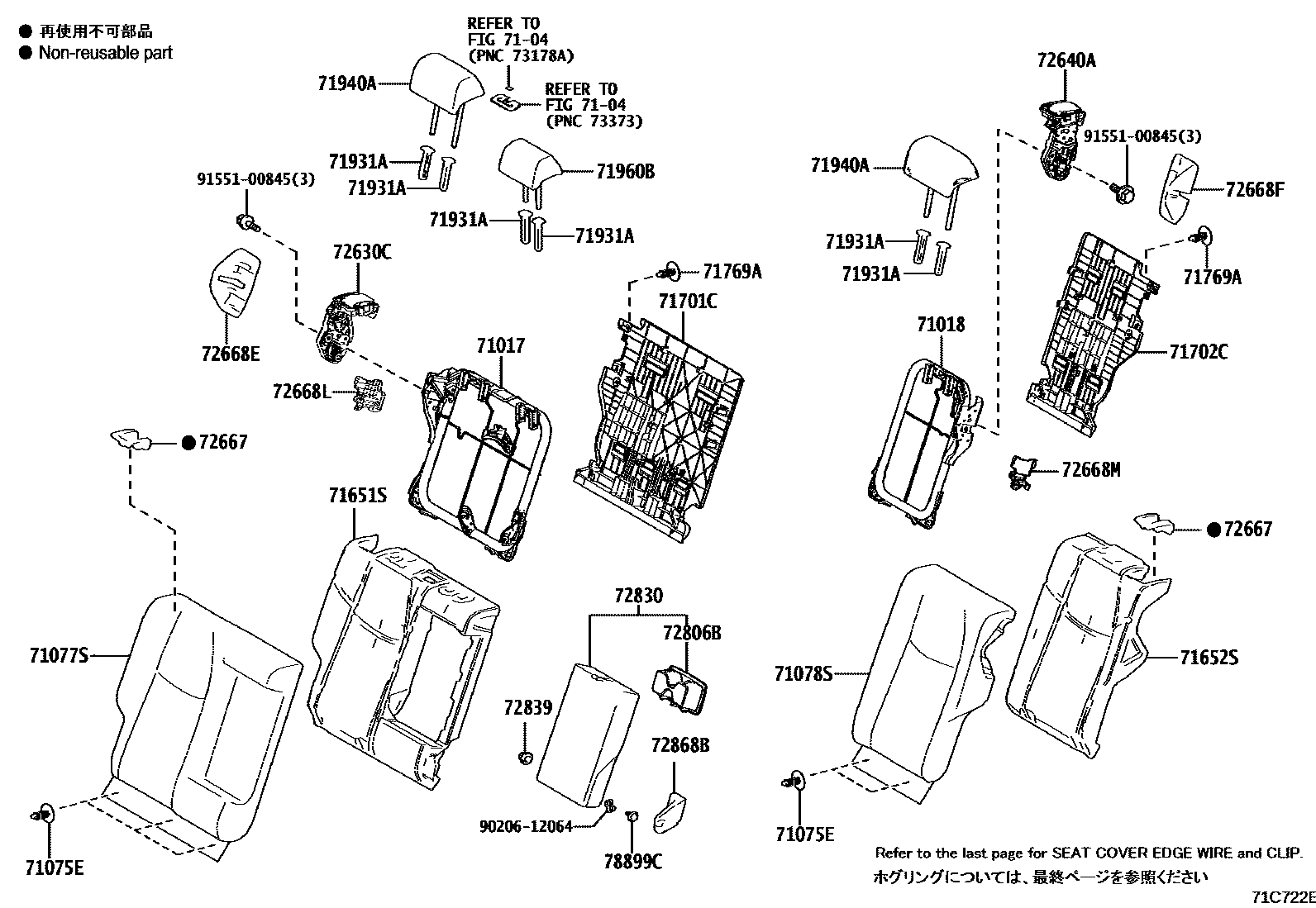

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������� 0003 1��������������� 0004 1������� 0005 1������� 0006 1�������� 0007 1��������������� 0008 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48270iAXUH8#,MXUA8#202006-202210

main71017-48320iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-48210iAXUH8#,MXUA8#202006-202210

7104

71075ECLIP(FOR REAR SEAT)

main90467-07080-C0×5iAXUH8#,MXUA8#202006-202210

BLACK

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48K30-C1iAXUH8#,MXUA8#..S202006-202112

BLACK/GRAY,TRIM2#

main71077-48K30-C2iMXUA80..S202210-202403

BLACK/GRAY,TRIM2#

main71077-48K30-C3iMXUA80..S202404

BLACK,TRIM2#

main71077-48K50-B3iAXUH8#,MXUA8#..G,Z202210-202403

MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K50-B4iAXUH8#,MXUA8#..G,Z202404

MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K50-C4iAXUH8#,MXUA8#..G,Z202210-202403

BLACK/GRAY,TRIM2#

main71077-48K50-C5iAXUH8#,MXUA8#..G,Z202210-202403

BLACK/CAMEL,TRIM4#

main71077-48K50-C8iAXUH8#,MXUA8#..G,Z202404

BLACK/GRAY,TRIM2#

main71077-48K50-C9iAXUH8#,MXUA8#..G,Z202404

BLACK/CAMEL,TRIM4#

main71077-48T60-C3iAXUP85202210-202403

BLACK/RED,TRIM2#

main71077-48T60-C4iAXUP85202404

BLACK/RED,TRIM2#

main71077-48K80-B3supersedes 71077-48K50-B2iAXUH8#,MXUA8#..G,Z202006-202112

main71077-48K80-C4supersedes 71077-48K50-C2iAXUH8#,MXUA8#..G,Z202006-202112

main71077-48K80-C5supersedes 71077-48K50-C3iAXUH8#,MXUA8#..G,Z202006-202112

main71077-48K81-22iAXUH8#,MXUA8#..Z202210-202403

main71077-48K81-23iAXUH8#,MXUA8#..Z202210-202403

main71077-48K81-25iAXUH8#,MXUA8#..Z202404

main71077-48K81-26iAXUH8#,MXUA8#..Z202404

main71077-48K81-B4supersedes 71077-48K50-B3iAXUH8#,MXUA8#..G,Z202112-202210

main71077-48K81-B6iAXUH8#,MXUA8#..Z202210-202403

main71077-48K81-B7iAXUH8#,MXUA8#..Z202404

main71077-48K81-C6supersedes 71077-48K50-C4iAXUH8#,MXUA8#..G,Z202112-202210

main71077-48K81-C7supersedes 71077-48K50-C5iAXUH8#,MXUA8#..G,Z202112-202210

main71077-48T70-C6iAXUP85..Z202210-202403

main71077-48T70-C7iAXUP85..Z202404

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-48J40-C1iAXUH8#,MXUA8#..S202006-202112

BLACK,TRIM2#

main71078-48J40-C2iMXUA80..S202210-202403

BLACK/GRAY,TRIM2#

main71078-48J40-C3iMXUA80..S202404

BLACK,TRIM2#

main71078-48J60-B3iAXUH8#,MXUA8#..G,Z202210-202403

MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J60-B4iAXUH8#,MXUA8#..G,Z202404

MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J60-C4iAXUH8#,MXUA8#..G,Z202210-202403

BLACK/GRAY,TRIM2#

main71078-48J60-C5iAXUH8#,MXUA8#..G,Z202210-202403

BLACK/CAMEL,TRIM4#

main71078-48J60-C8iAXUH8#,MXUA8#..G,Z202404

BLACK/GRAY,TRIM2#

main71078-48J60-C9iAXUH8#,MXUA8#..G,Z202404

BLACK/CAMEL,TRIM4#

main71078-48S70-C3iAXUP85202210-202403

BLACK/RED,TRIM2#

main71078-48S70-C4iAXUP85202404

BLACK/RED,TRIM2#

main71078-48J90-20iAXUH8#,MXUA8#..Z202210-202403

main71078-48J90-21iAXUH8#,MXUA8#..Z202210-202403

main71078-48J90-23iAXUH8#,MXUA8#..Z202404

main71078-48J90-24iAXUH8#,MXUA8#..Z202404

main71078-48J90-B2supersedes 71078-48J60-B2iAXUH8#,MXUA8#..G,Z202006-202112

main71078-48J90-B3supersedes 71078-48J60-B3iAXUH8#,MXUA8#..G,Z202112-202210

main71078-48J90-B5iAXUH8#,MXUA8#..Z202210-202403

main71078-48J90-B6iAXUH8#,MXUA8#..Z202404

main71078-48J90-C2supersedes 71078-48J60-C2iAXUH8#,MXUA8#..G,Z202006-202112

main71078-48J90-C3supersedes 71078-48J60-C3iAXUH8#,MXUA8#..G,Z202006-202112

main71078-48J90-C4supersedes 71078-48J60-C4iAXUH8#,MXUA8#..G,Z202112-202210

main71078-48J90-C5supersedes 71078-48J60-C5iAXUH8#,MXUA8#..G,Z202112-202210

main71078-48S80-C6iAXUP85..Z202210-202403

main71078-48S80-C7iAXUP85..Z202404

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48310iAXUH8#,MXUA8#202006-202210

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-48280iAXUH8#,MXUA8#202006-202210

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-48010iAXUH8#,MXUA8#202006-202210

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-48010iAXUH8#,MXUA8#202006-202210

71769ACLIP, REAR SEATBACK BOARD

main71769-28040×5iAXUH8#,MXUA8#202006-202210

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5×3iMXUA80..S202210

main71931-47030-C4×3iAXUH8#,MXUA8#..S202006-202210

71940AHEADREST ASSY, REAR SEAT

main71940-48C50-C0×2iMXUA80..S202210

BLACK,TRIM2#

main71940-48C70-B1×2iAXUH8#,MXUA8#..G,Z202006-202210

MEDIUM GRAY,TRIM1#

main71940-48C70-C0×2iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48740-C0iAXUH8#,MXUA85..S202210-202309

BLACK,TRIM2#

main71960-48750-B1iAXUH8#,MXUA8#..G,Z202210

MEDIUM GRAY,TRIM1#

main71960-48750-C0iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-48070-C0iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-48020-C0iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-48060-C0×2iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

72668EBEZEL, REAR SEATBACK LOCK, LOWER RH

main72668-48030-C0iMXUA80..S202210

BLACK,TRIM2#

72668FBEZEL, REAR SEATBACK LOCK, LOWER LH

main72668-48040-C0iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

72668LBEZEL, REAR SEATBACK LOCK, LOWER RH NO.2

main72668-48050iAXUH8#,MXUA8#202006-202210

72668MBEZEL, REAR SEATBACK LOCK, LOWER LH NO.2

main72668-48060iAXUH8#,MXUA8#202006-202210

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-42020-C0iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-48B80-C0iMXUA80..S202210

BLACK,TRIM2#

main72830-48B90-C0iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

main72830-48C00-B0supersedes 72830-48B90-B0iAXUH8#,MXUA8#..G,Z202006-202112

main72830-48C00-C0supersedes 72830-48B90-C0iAXUH8#,MXUA8#..G,Z202006-202112

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

72868BCOVER, CENTER ARMREST HINGE

main72868-42040-C0iAXUH8#,MXUA8#..S202006-202210

BLACK,TRIM2#

78899CBOLT, REAR SUB SEAT

main78899-60070iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

9020612064

main90206-12064

9155100845

main91551-00845

28 parts on this diagram · 8 diagrams in section
