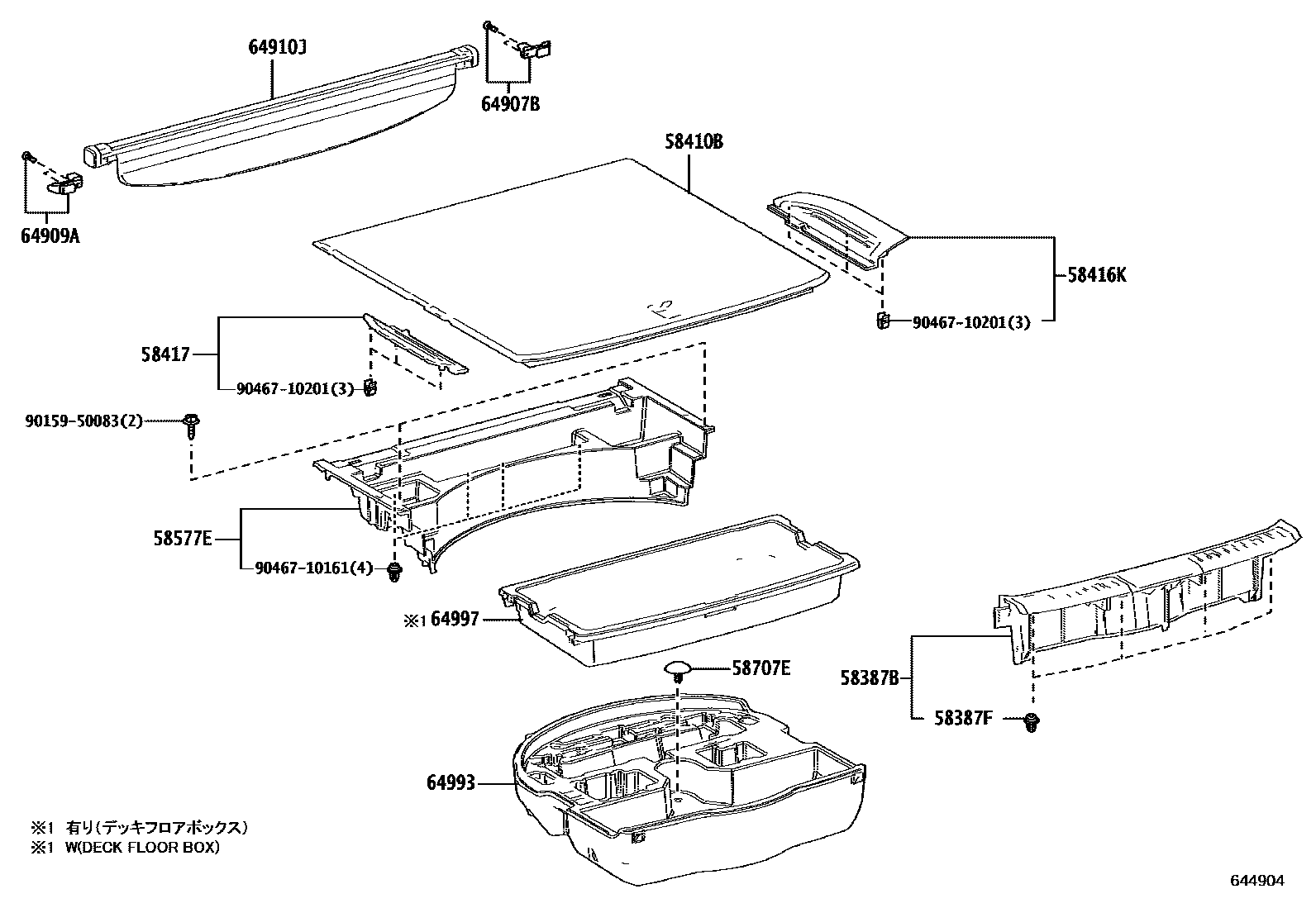

DECK BOARD & DECK TRIM COVER

0001 1��(�������������������) 0002 1��(�������(�������)) 0003 1��(�������������������) 0004 1��(�������(�������)) 0005 1

58387BPLATE, REAR FLOOR FINISH

main58387-48120-C0iAXUH8#,MXUA8#..G202006-202210

BLACK,TRIM2#

main58387-48130-C0iAXUP85;AXUH8#,MXUA8#..Z202210

BLACK,TRIM1#,2#,4#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-10161×6iAXUP85202210

58410BBOARD ASSY, DECK

main58410-48180-C3iAXUH8#,MXUA85..S202210-202309

BLACK,TRIM2#

main58410-48190-C8iAXUH8#,MXUA8#..G202006-202210

BLACK,TRIM1#,2#,4#

main58410-48200-C7iAXUP85;AXUH8#,MXUA8#..Z202210

BLACK,TRIM1#,2#,4#

58416KBOARD, REAR FLOOR, NO.2

main58416-48020-C0iAXUH8#,MXUA8#..G202006-202210

BLACK,TRIM2#

main58416-48030-C0iAXUH8#,MXUA8#..Z202006-202210

BLACK,TRIM1#,2#,4#

58417BOARD, REAR FLOOR, NO.3

main58417-48060-C0iAXUH8#,MXUA8#..G202210

BLACK,TRIM2#

main58417-48070-C0iAXUP85;AXUH8#,MXUA8#..Z202210

BLACK,TRIM1#,2#,4#

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-48030iAXUH8#,MXUA8#202006-202210

main58577-48040iAXUP85202210

58707EPLUG SET, HOLE

main58707-50060iAXUH8#,MXUA8#202006-202210

64907BSTOPPER SUB-ASSY, TONNEAU COVER, RH

main64907-48010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

64909ASTOPPER SUB-ASSY, TONNEAU COVER, LH

main64909-48010iAXUH8#,MXUA8#202006-202210

64910JCOVER ASSY, TONNEAU

main64910-48170-C0iAXUH8#,MXUA8#..S202006-202210

64993BOX, DECK FLOOR, REAR

main64993-48170iMXUA80;AXUH8#,MXUA85..G,Z202210

main64993-48220iAXUP85202210

64997BOX, DECK FLOOR, LH

main64997-48040iAXUH8#,MXUA8#..G,Z202210

9015950083

main90159-50083

9046710161

main90467-10161

9046710201

main90467-10201

15 parts on this diagram · 5 diagrams in section
