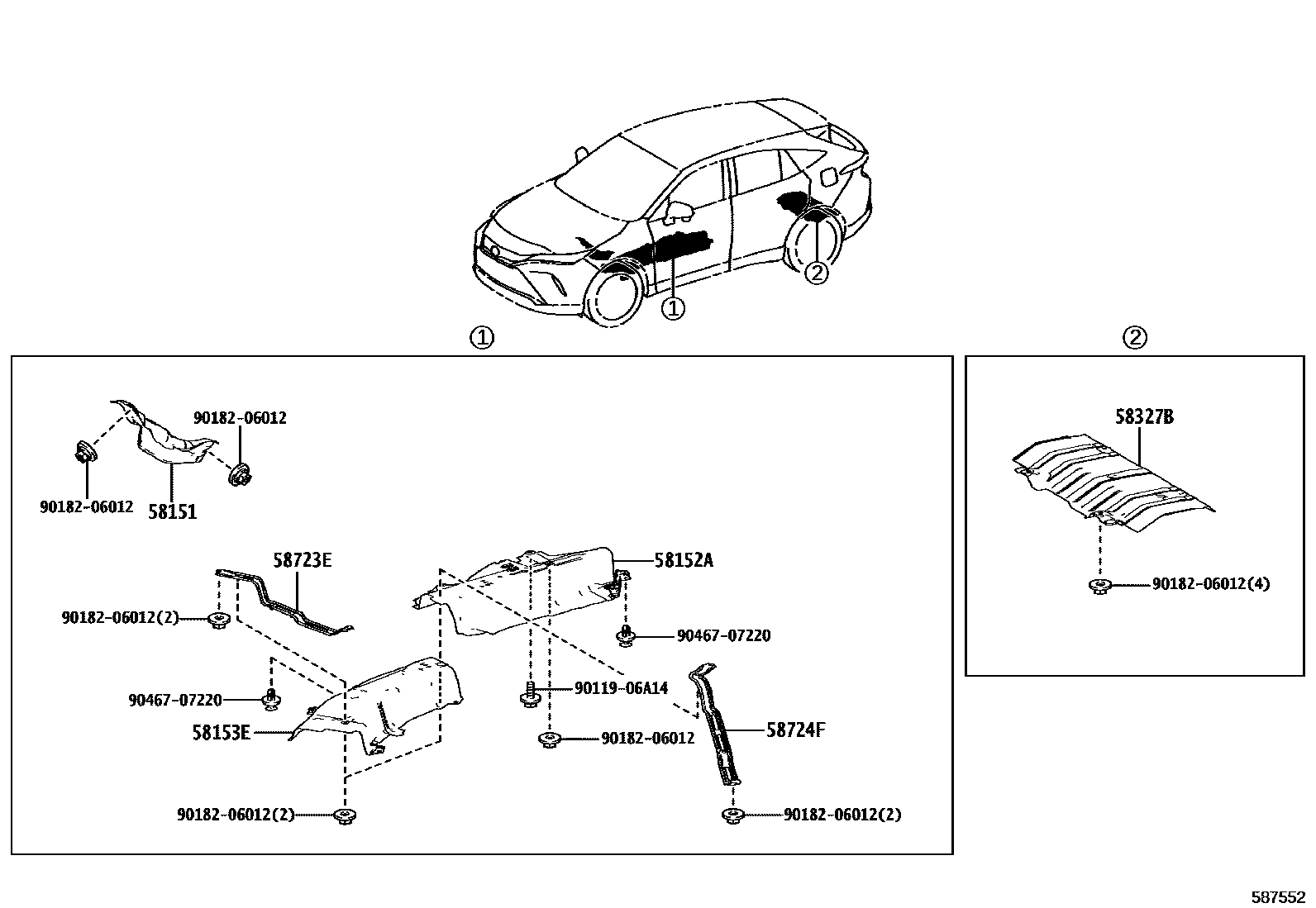

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42060iMXUA80;AXUH8#,MXUA85..G,Z¥2,100202006-202309

main58151-42070iAXUP85¥2,090202210

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42050iAXUH8#¥5,300202006-202309

main58152-42080iAXUP85¥3,610202210

main58720-42010iMXUA80;MXUA85..G,Z¥13,000202006-202309

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-42020iAXUH8#..S¥4,560202006-202309

main58153-42030iAXUP85¥3,910202210

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42030iAXUH8#,MXUA8#¥3,810202006-202309

main58327-42040iAXUP85¥4,730202210

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAXUH8#¥2,330202006-202309

58724FCUSHION, ENGINE SERVICE COVER, NO.2

main58724-42040iAXUH8#¥2,620202006-202309

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

9 parts on this diagram · 3 diagrams in section
