FLOOR PAN & LOWER BACK PANEL
52163DPLATE, REAR BUMPER REINFORCEMENT, RH
52164CPLATE, REAR BUMPER REINFORCEMENT, LH
52565FRETAINER, REAR BUMPER, LOWER
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57225BBRACE, FRONT MOUNTING BRACKET
5752
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58116PLATE, SHIFT CABLE MOUNTING
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58223EREINFORCEMENT, FLOOR PANEL SIDE, RH
58239DBRACKET, CABLE CLAMP
58301GPAN SUB-ASSY, REAR FLOOR
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
65565APATCH, SIDE PANEL REAR END, RH
65566APATCH, SIDE PANEL REAR END, LH
9011506166
9011906951
9011908D23
9017608059
9155180828
91631J0612

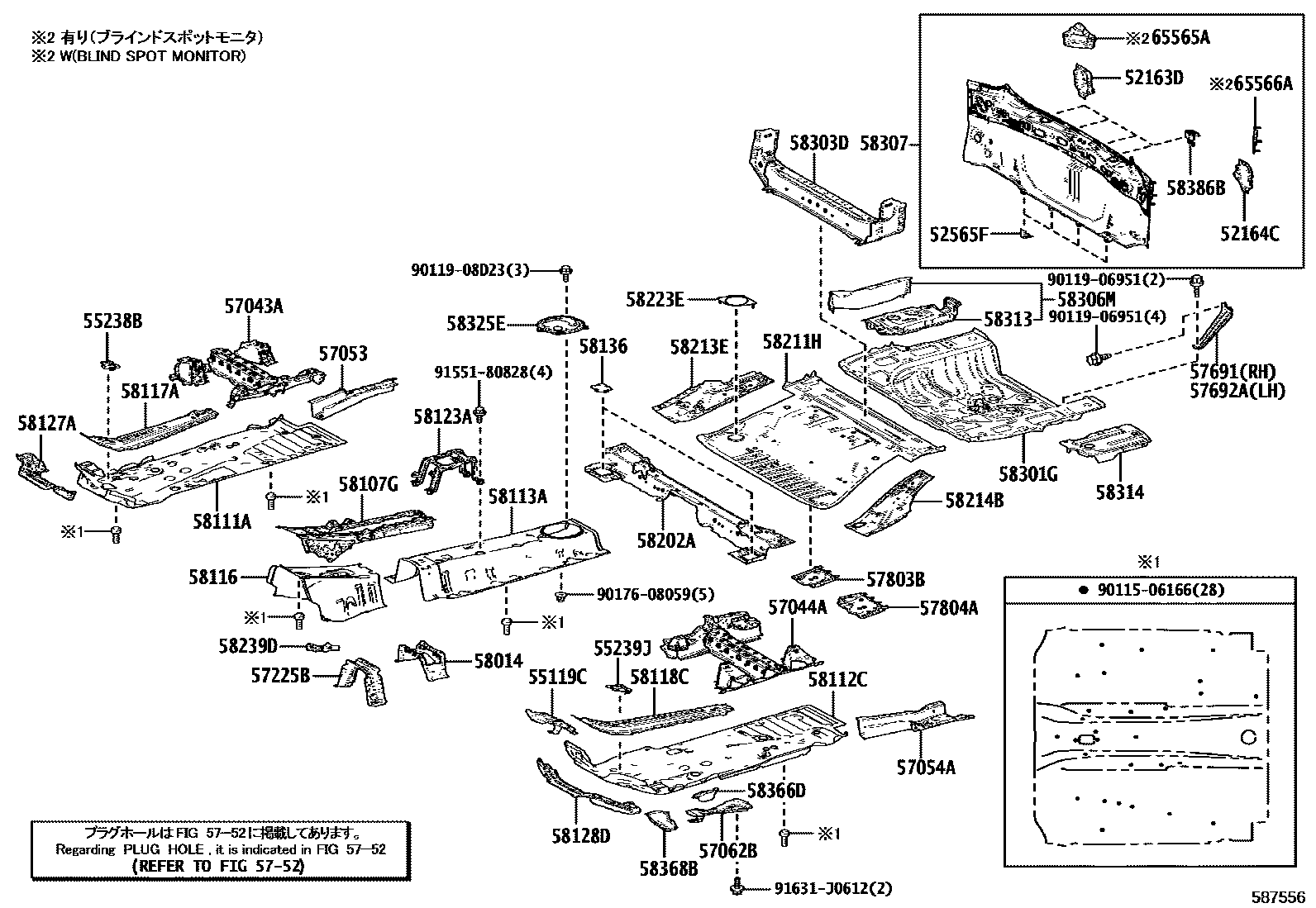

53 parts on this diagram · 3 diagrams in section
