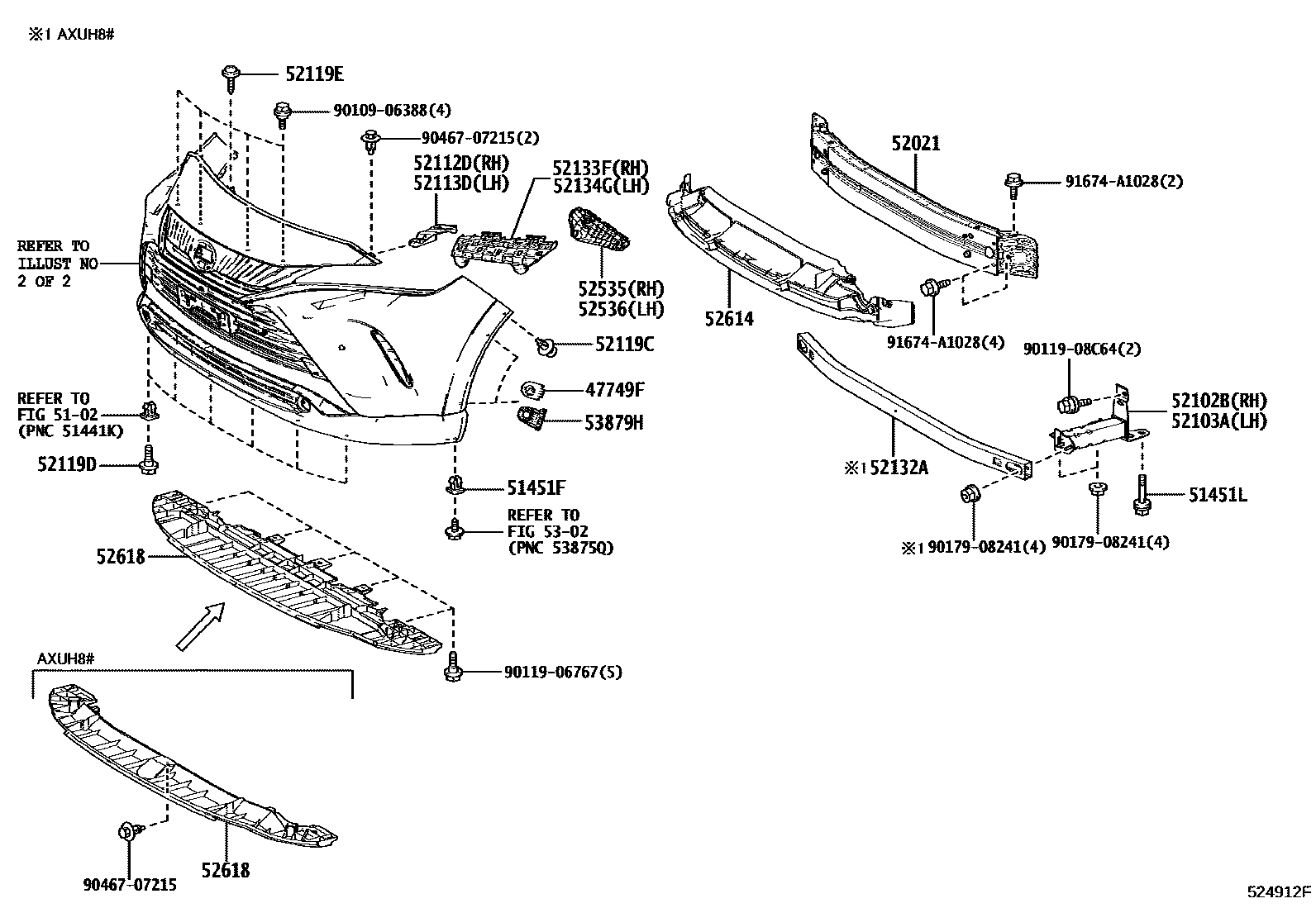

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-33030iAXUH8#,MXUA8#..S202006-202210

main47749-33030iAXUH8#,MXUA85..S202210-202309

main47749-33030iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

5102

51451FGROMMET, NO.1

main90189-06237iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

main90189-06237iAXUH8#,MXUA8#202006-202210

main90189-06237iAXUH8#,MXUA85..S202210-202309

51451LBOLT, NO.1

main90119-16029iAXUH8#,MXUA8#202006-202309

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42200iAXUH8#,MXUA8#202006-202309

main52021-48170iAXUP85202210

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXUH8#202006-202309

main52102-42110iMXUA8#202006-202309

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXUH8#202006-202309

main52103-42110iMXUA8#202006-202309

52112DEXTENSION, FRONT BUMPER, RH

main52112-48070iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

52113DEXTENSION, FRONT BUMPER, LH

main52113-48050iAXUH8#,MXUA8#202006-202309

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXUH8#,MXUA8#202006-202210

main90467-05170iAXUH8#,MXUA85..S202210-202309

main90467-05170iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

52119DSCREW, NO.1

main90159-60477iAXUH8#,MXUA8#202006-202210

main90159-60477iAXUH8#,MXUA85..S202210-202309

main90159-60477iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

52119ESCREW, NO.2

main90167-50063iAXUH8#,MXUA8#202006-202210

main90167-50063iAXUH8#,MXUA85..S202210-202309

main90167-50063iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXUH8#202006-202309

52133FBRACKET, FRONT BUMPER, RH

main52133-48090iAXUH8#,MXUA8#202006-202309

52134GBRACKET, FRONT BUMPER, LH

main52134-48090iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48090iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210-202410

sub52535-48091

main52535-48090iAXUH8#,MXUA85..S202210-202309

sub52535-48091

main52535-48090iAXUH8#,MXUA8#202006-202210

sub52535-48091

main52535-48091iMXUA80..S202411

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48080iMXUA80..S202210-202410

sub52536-48081

main52536-48080iAXUH8#,MXUA8#202006-202210

sub52536-48081

main52536-48080iAXUH8#,MXUA85..S202210-202309

sub52536-48081

main52536-48081iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202411

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-48060iAXUP85202210

main52614-48070iAXUH8#,MXUA8#202006-202204

sub52614-48071

main52614-48071iMXUA80;AXUH8#,MXUA85..G,Z202204-202309

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48040iMXUA8#202006-202309

main52618-48050iAXUH8#202006-202309

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXUH8#,MXUA8#202006-202210

main53879-33030iAXUH8#,MXUA85..S202210-202309

main53879-33030iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

9010906388

main90109-06388

9011906767

main90119-06767

9011908C64

main90119-08C64

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

27 parts on this diagram · 4 diagrams in section
