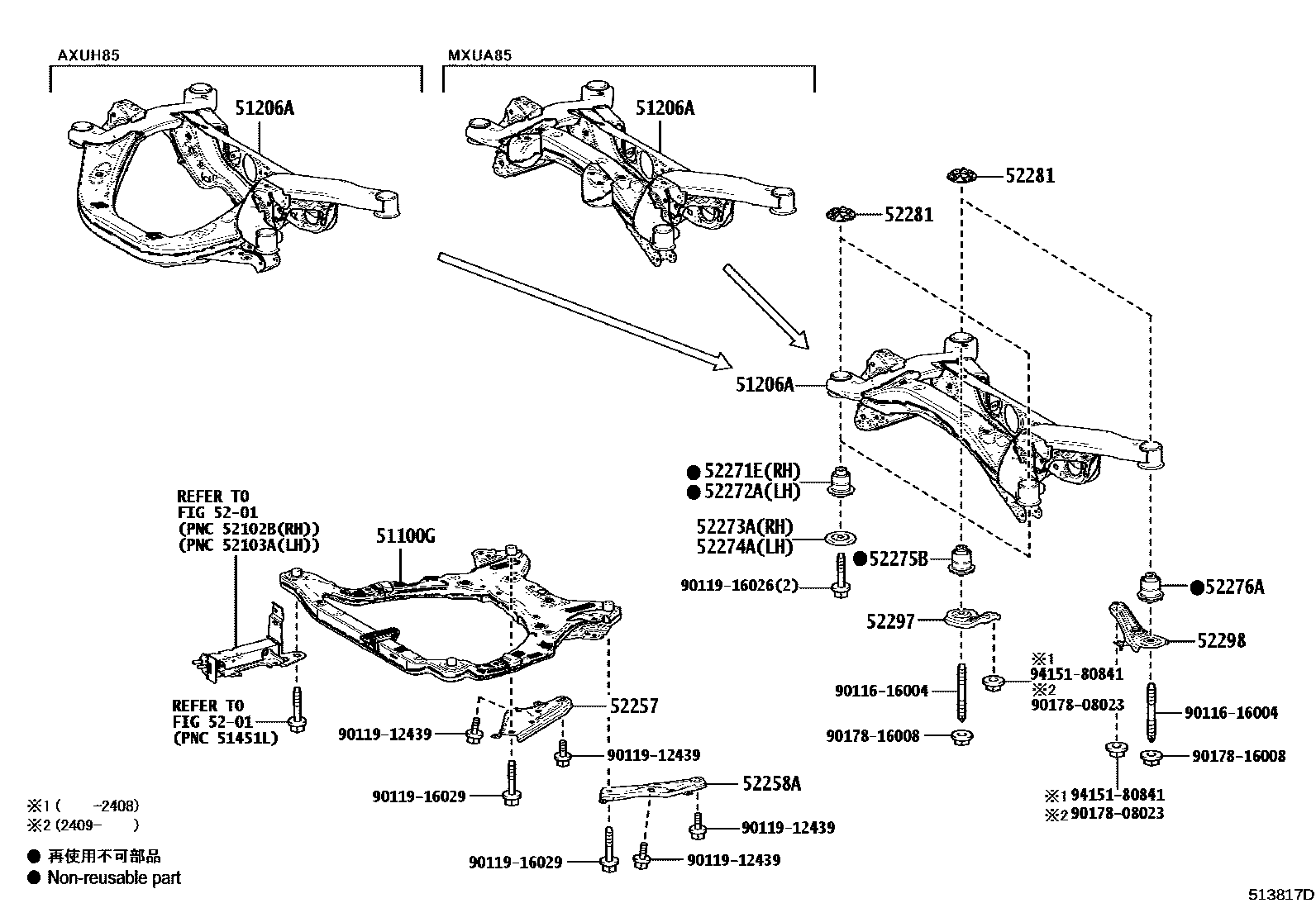

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1��������

51100GFRAME ASSY, FRONT

main51100-30880iAXUH8#,MXUA8#202108-202309

main51100-42011iAXUH8#,MXUA8#202006-202107

sub51100-30880

main51100-42051iAXUP85202210

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42070iMXUA85..G,Z202006-202309

main51206-42080iAXUH85202006-202309

main51206-42090iAXUH80,MXUA80202006-202309

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAXUH8#,MXUA8#202006-202309

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAXUH8#,MXUA8#202006-202309

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-42010iAXUH8#,MXUA8#202006-202309

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-42010iAXUH8#,MXUA8#202006-202309

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-33030iAXUH8#,MXUA8#202006-202309

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-33030iAXUH8#,MXUA8#202006-202309

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42010iAXUH8#,MXUA85..S202006-202309

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42010iAXUH8#,MXUA8#202006-202309

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iAXUH8#,MXUA8#202006-202309

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42020iAXUH8#,MXUA8#202006-202309

main52297-42030iAXUP85202210

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42010iAXUH8#,MXUA8#202006-202309

main52298-42020iAXUP85202210

9011616004

main90116-16004

9011912439

main90119-12439

9011916026

main90119-16026

9011916029

main90119-16029

9017808023

main90178-08023

9017816008

main90178-16008

9415180841

main94151-80841

21 parts on this diagram · 6 diagrams in section
