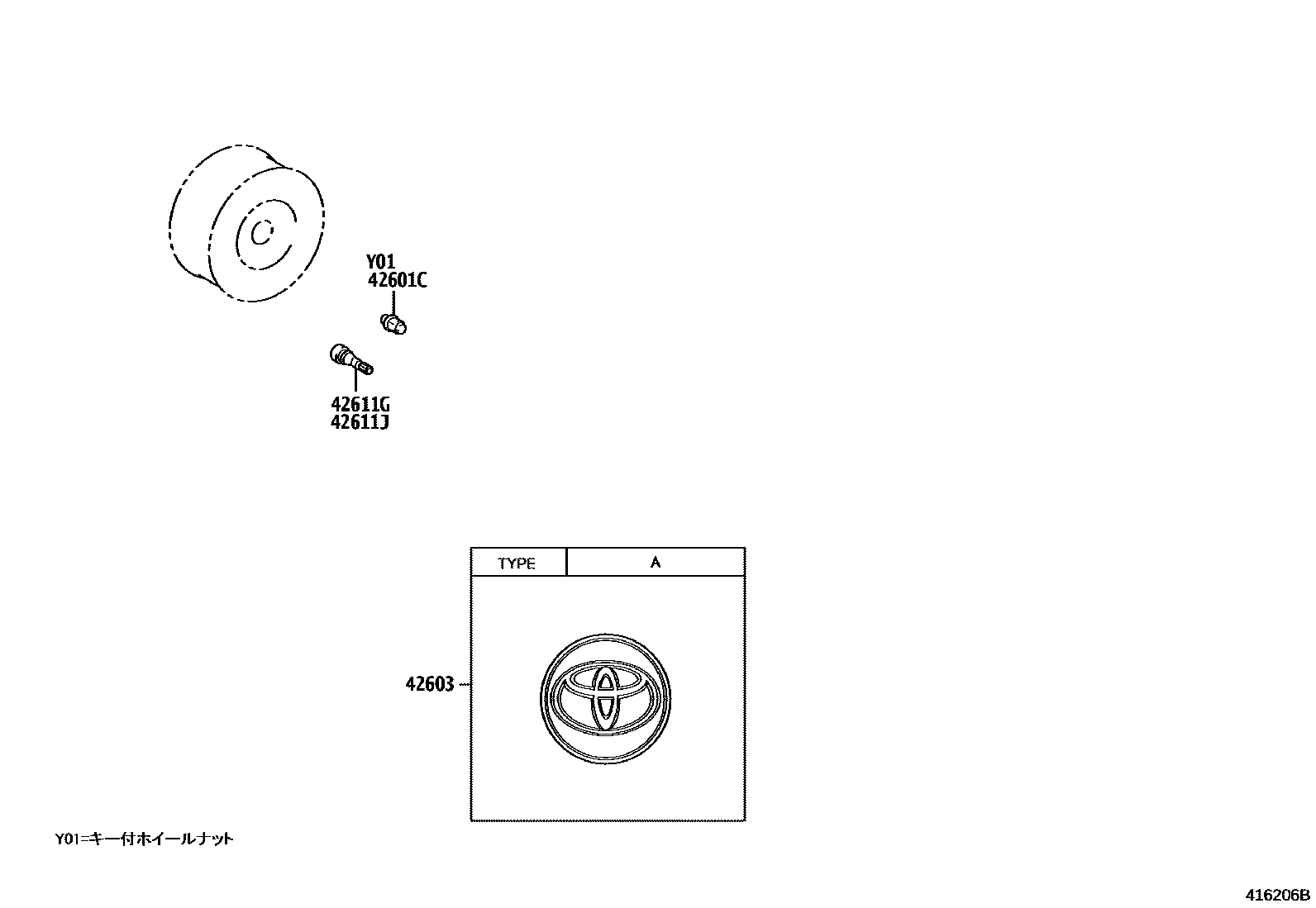

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-42720iAXUH8#,MXUA8#..S202006-202210

main42611-42840iAXUH8#,MXUA8#..S202006-202210

main42611-42850iAXUH8#,MXUA8#..S202006-202210

main42611-42A10iAXUH8#,MXUA85..S202210-202309

main42611-42A30iAXUH8#,MXUA85..S202210-202309

main42611-42A50iMXUA80..S202210-202309

main42611-48B30iAXUP85202210

main42611-48B50iAXUH8#,MXUA8#..G202006-202210

main42611-48B70iAXUH8#,MXUA8#..G202006-202210

main4261A-48290iAXUH8#,MXUA8#..Z202006-202210

main4261A-48300iAXUH8#,MXUA8#..Z202006-202210

42601CNUT, HUB (FOR AXLE)

main90942-01033iAXUH8#,MXUA8#202006-202309

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iAXUH8#,MXUA8#202006-202309

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAXUH8#,MXUA8#202006-202309

42611JVALVE (FOR TUBELESS TIRE SPARE)

5 parts on this diagram · 3 diagrams in section
