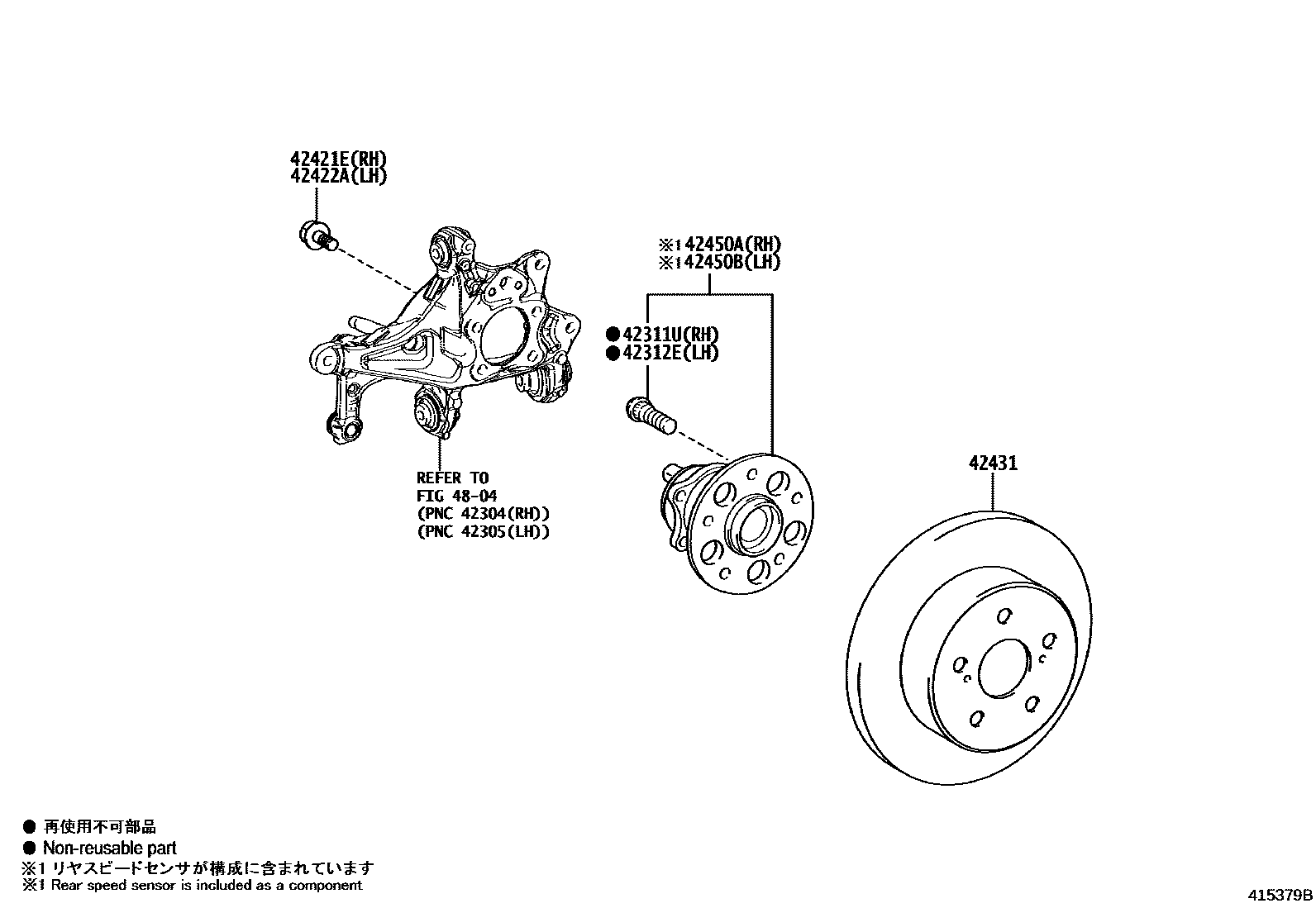

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXUH8#,MXUA8#¥240202006-202309

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXUH8#,MXUA8#¥240202006-202309

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iAXUH8#,MXUA8#¥160202006-202309

main90110-12016iAXUP85¥190202210

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iAXUH8#,MXUA8#¥160202006-202309

main90110-12016iAXUP85¥190202210

42431DISC, REAR

main42431-42080iAXUP85¥8,700202210

main42431-78010iAXUH8#,MXUA85..S¥6,600202006-202309

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iAXUH85,MXUA85¥11,900202006-202309

main42410-42070iAXUP85¥11,900202210

main42410-47050iAXUH85,MXUA85..G,Z¥15,300202310

main42450-42060iAXUH80..S¥22,600202006-202309

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iAXUH85,MXUA85¥11,900202006-202309

main42410-42070iAXUP85¥11,900202210

main42410-47050iAXUH85,MXUA85..G,Z¥15,300202310

main42450-42060iAXUH80..S¥22,600202006-202309

4804

8 parts on this diagram · 3 diagrams in section
