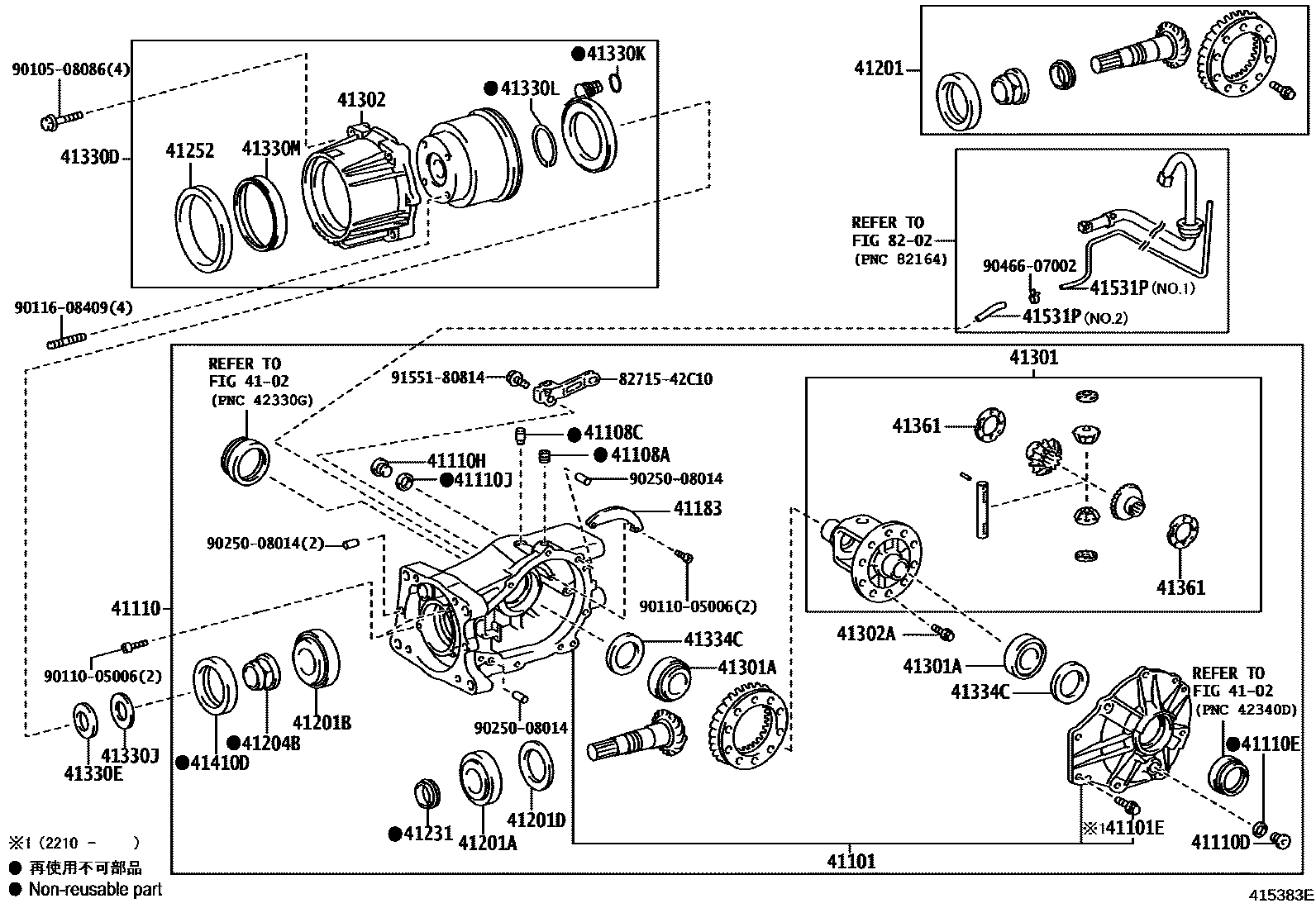

REAR AXLE HOUSING & DIFFERENTIAL
4102
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41330DCOUPLING ASSY, TRANSMISSION
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330JSHIM (FOR TRANSMISSION COUPLING)
41330KRING, O (FOR TRANSMISSION COUPLING)
41330LRING, SNAP (FOR TRANSMISSION COUPLING)
41330MSEAL, DUST (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410DSEAL, OIL DIAPHRAGM
41531PHOSE, REAR DIFFERENTIAL VACUUM
8202
8271542C10BRACKET,WIRING HARNESS CLAMP
main82715-42C10
9010508086
main90105-08086
9011005006
main90110-05006
9011608409
main90116-08409
9025008014
main90250-08014
9046607002
main90466-07002
9155180814
main91551-80814
40 parts on this diagram · 2 diagrams in section
