OIL COOLER & TUBE (HEV OR BEV OR FCEV)

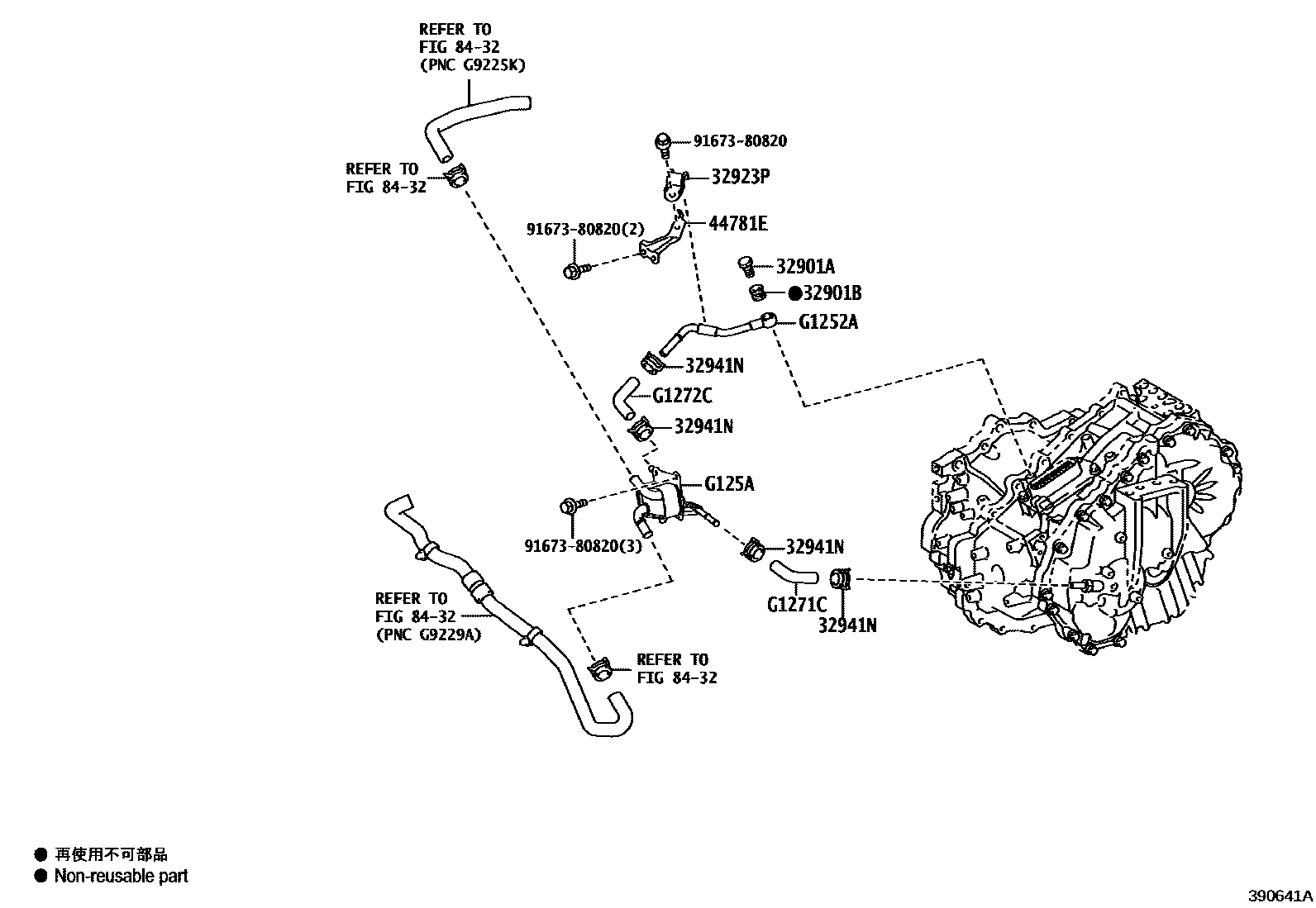

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i¥390202006-202309

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i¥80202006-202309

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i¥200202006-202309

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004i¥180202006-202309

44781EBRACKET, HOSE

main44781-33020i¥470202006-202309

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010i202006-202309

mainG125242010i202210

G125ACOOLER, MOTOR COOLING

mainG125A42010i202006-202309

mainG125A48020i202210

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010i202006-202309

mainG127142010i202210

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010i202006-202309

9167380820

main91673-80820¥80

11 parts on this diagram · 2 diagrams in section
