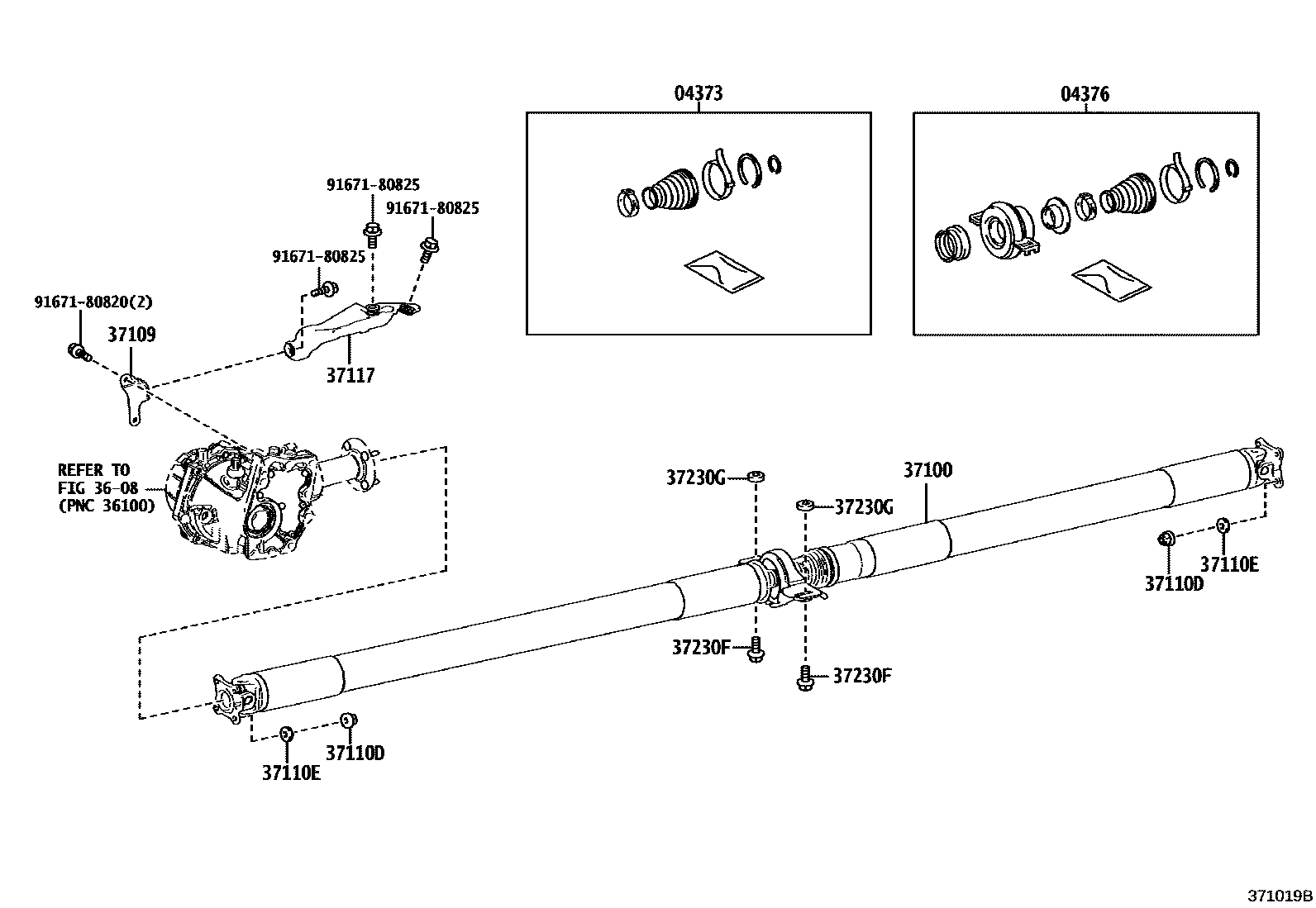

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iMXUA85..S202006-202309

04376BEARING KIT, CENTER SUPPORT

main04376-52020iMXUA85202006-202309

3608

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-42070iMXUA85202006-202309

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-42010iMXUA85202006-202309

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iMXUA85202006-202309

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iMXUA85..S202006-202309

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-42010iMXUA85..S202006-202309

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iMXUA85202006-202309

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iMXUA85..G,Z202006-202309

main90201-10083iMXUA85202006-202309

main90201-10123iMXUA85202006-202309

9167180820

main91671-80820

9167180825

main91671-80825

12 parts on this diagram · 1 diagram in section
