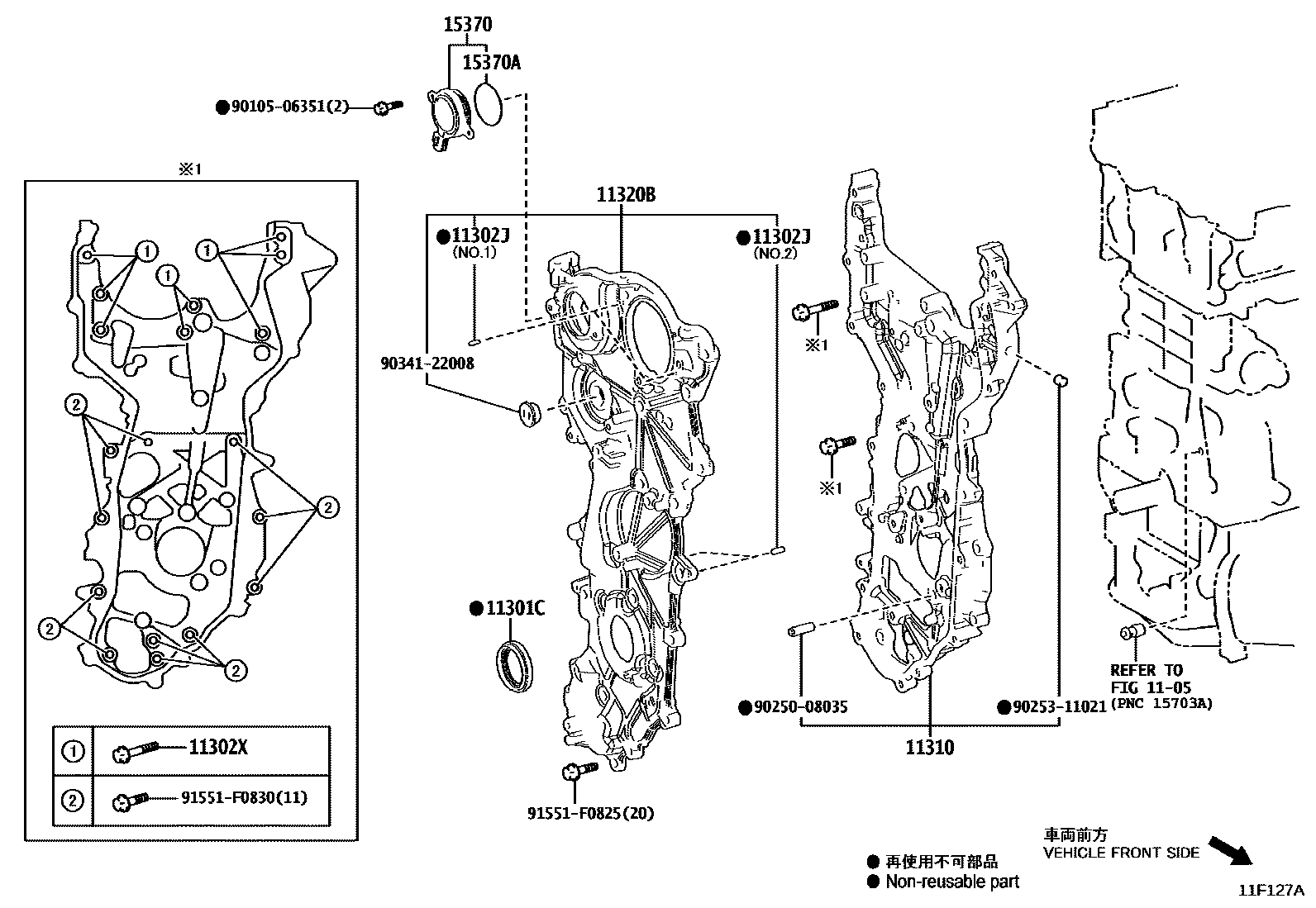

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iA25AFXS..AXUH8#..S202210-202309

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z202210

main90250-06003×2iA25AFXS..AXUH8#..S202210-202309

11302XBOLT, FLANGE

main91551-F0845×8iA25AFXS..AXUH8#..S202210-202309

11310COVER ASSY, TIMING CHAIN

main11310-24010iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z202210

main11310-25030iA25AFXS..AXUH8#,AXUP85..G,Z202210

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20AFKS..MXUA85..S202210-202309

main11320-25011iA25AFXS..AXUH8#202006-202210

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z202210

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20AFKS..MXUA8#202006-202210

9010506351

main90105-06351

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

91551F0825

main91551-F0825

91551F0830

main91551-F0830

14 parts on this diagram · 2 diagrams in section
