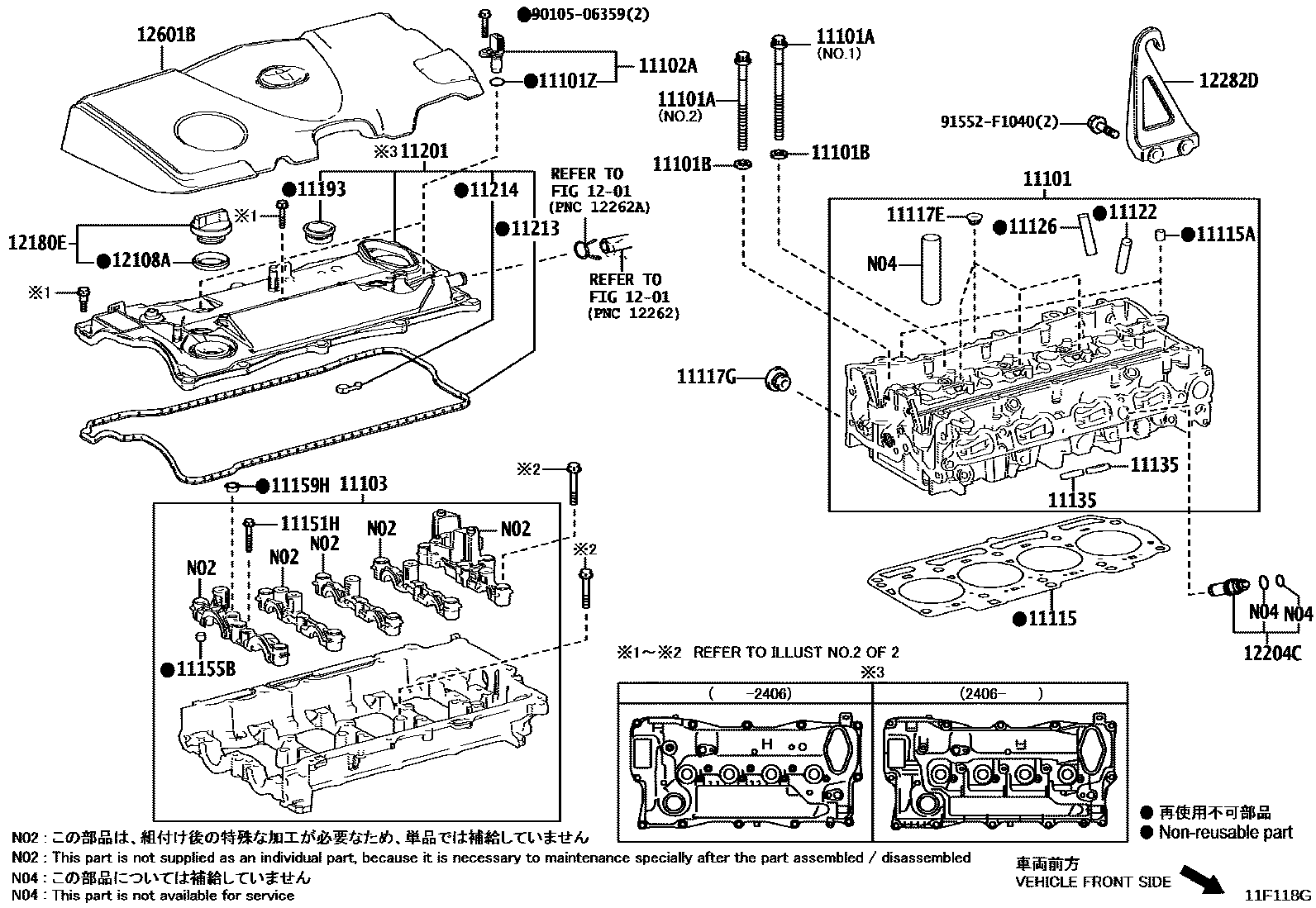

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-29626iA25AFXS..AXUH8#¥112,000202006-202104

sub11101-29627¥101,000

main11101-29627iA25AFXS..AXUH8#¥101,000202105-202405

main11101-29627iA25AFXS..AXUH8#,AXUP85..G,Z¥101,000202405

main11101-29635iM20AFKS..MXUA8#¥96,900202006-202211

sub11101-29636¥97,000

main11101-29636iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥97,000202212-202410

main11101-29637iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥88,100202410

main11101-F9130iA25AFXS..AXUH8#,AXUP85..G,Z202405

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02201iA25AFXS..AXUH8#..S¥360202006-202309

main90910-02202iM20AFKS..MXUA85..S¥310202006-202309

main90910-02202iM20AFKS..MXUA85..S¥310202006-202309

main90910-02205iM20AFKS..MXUA85..S¥240202006-202309

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-12079iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥100202006-202309

11101ZO RING, CAM POSITION SENSOR

main90301-11038iA25AFXS..AXUH8#¥0202006-202309

11102ASENSOR, CAMSHAFT POSITION

main90919-05096iA25AFXS..AXUH8#¥4,130202006-202309

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-24011iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥23,900202006-202309

main11103-25021iA25AFXS..AXUH8#¥31,500202006-202007

sub11103-25090¥23,900

sub25625-25030¥2,970

main11103-25090iA25AFXS..AXUH8#..S¥23,900202007-202309

11115GASKET, CYLINDER HEAD

main11115-24040iM20AFKS..MXUA85..S¥4,380202006-202309

main11115-25050iA25AFXS..AXUH8#..S¥5,800202006-202309

11115APIN, RING

main90253-12002iA25AFXS..AXUH8#¥50202006-202309

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iA25AFXS..AXUH8#¥120202006-202210

main90341-14015iA25AFXS..AXUH8#..S¥120202210-202309

main90341-C0012iA25AFXS..AXUH8#,AXUP85..G,Z202405

11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3

main90341-24006iA25AFXS..AXUH8#¥230202006-202309

11122BUSH, INTAKE VALVE GUIDE

main11122-31090iA25AFXS..AXUH8#,AXUP85..G,Z¥550202006-202309

main11123-31090iA25AFXS..AXUH8#¥550202006-202309

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iA25AFXS..AXUH8#..S¥610202006-202309

sub11122-47010¥550

main11123-31041iA25AFXS..AXUH8#,AXUP85..G,Z¥620202006-202401

sub11123-47010¥550

main11123-47010iA25AFXS..AXUH8#,AXUP85..G,Z¥550202401

11135SEAT, EXHAUST VALVE

main11135-24020iM20AFKS..MXUA85..S¥490202006-202309

main11135-25020iA25AFXS..AXUH8#..S¥760202006-202309

main11136-25020iA25AFXS..AXUH8#,AXUP85..G,Z¥760202006-202309

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009iA25AFXS..AXUH8#¥90202006-202309

11155BPIN, RING

main90253-13005iM20AFKS..MXUA8#¥50202006-202309

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥340202006-202309

11193GASKET, SPARK PLUG TUBE

main11193-37030iM20AFKS..MXUA85..S¥230202006-202309

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-24031iM20AFKS..MXUA8#¥13,900202006-202111

sub11201-24032¥12,600

main11201-24032iM20AFKS..MXUA80;M20AFKS..MXUA85..G,Z¥12,600202112-202309

main11201-25033iA25AFXS..AXUH8#..S¥8,800202006-202406

main11201-25090iA25AFXS..AXUH8#,AXUP85..G,Z¥8,800202406

11213GASKET, CYLINDER HEAD COVER

main11213-24020iM20AFKS..MXUA85..S¥700202006-202309

main11213-25020iA25AFXS..AXUH8#..S¥700202006-202309

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080iA25AFXS..AXUH8#..S¥370202006-202309

1201

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iA25AFXS..AXUH8#¥120202006-202309

12180ECAP ASSY, OIL FILLER

main12180-38010iA25AFXS..AXUH8#..S¥640202006-202309

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iM20AFKS..MXUA8#¥800202006-202309

12282DHANGER, ENGINE, NO.2

main12282-25010iM20AFKS..MXUA85..S¥4,190202006-202309

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-24011iM20AFKS..MXUA8#¥12,400202006-202309

main12601-25100iA25AFXS..AXUH8#¥8,500202006-202309

9010506359

main90105-06359¥60

91552F1040

main91552-F1040¥120

28 parts on this diagram · 4 diagrams in section
