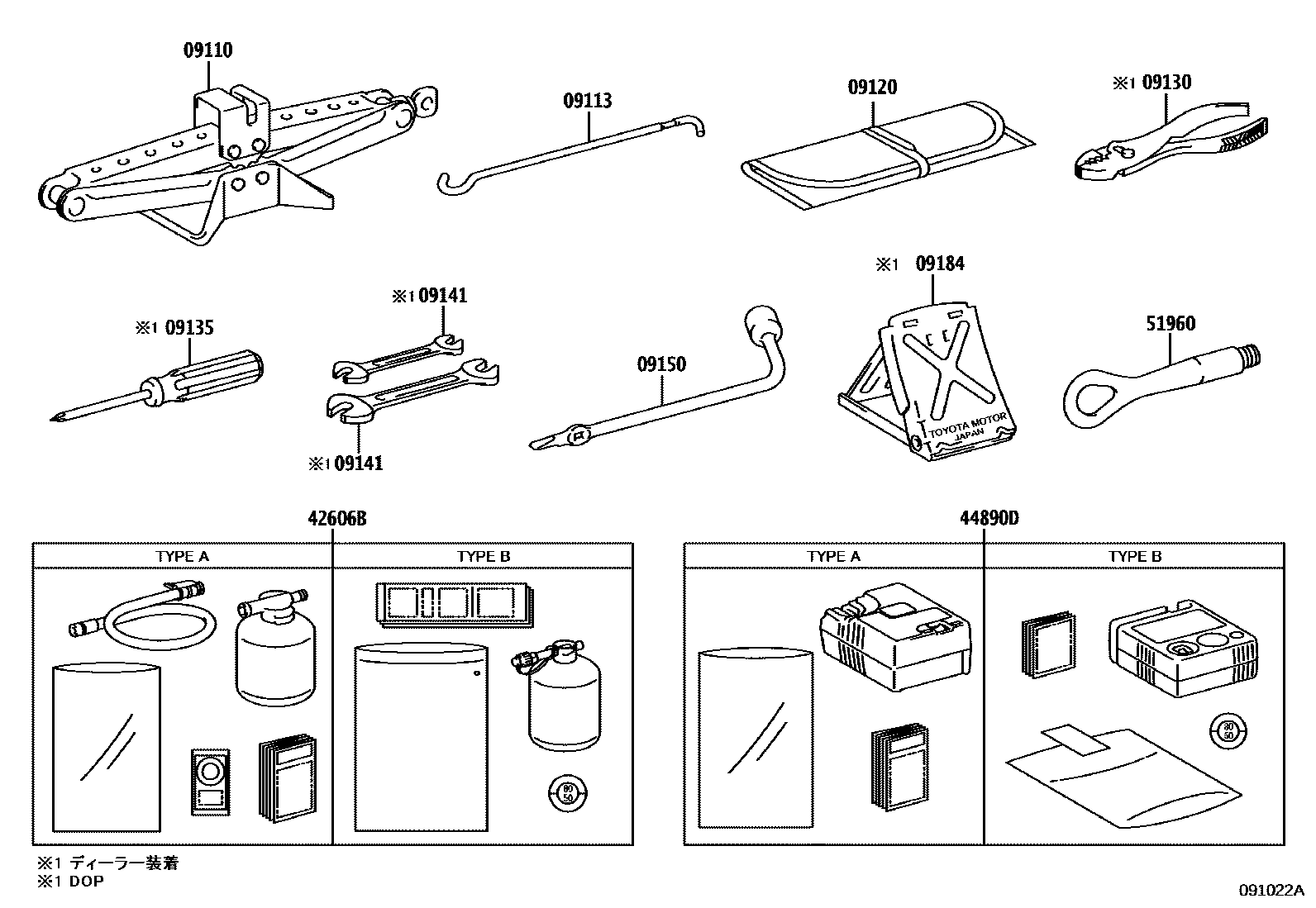

STANDARD TOOL

09110JACK ASSY

main09111-0W150iAXUH8#,MXUA8#202006-202109

sub09111-0W151

main09111-0W151iAXUH8#,MXUA8#202110-202309

09113HANDLE, JACK

main09113-42030iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

09120BAG, TOOL

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-42010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202006-202309

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iMXUA80;AXUH8#,MXUA85..G,Z202210-202211

sub42606-42080

main42606-30011iAXUP85202109-202211

sub42606-42080

main42606-30011iAXUP85202109-202211

sub42606-42080

main42606-30011iAXUH8#,MXUA8#202006-202109

sub42606-42080

main42606-42080iMXUA80;AXUH8#,MXUA85..G,Z202211

main42606-42080iAXUP85202211-202309

main42606-42080iAXUP85202211

main42606-F4041iAXUP85202109-202210

main42606-F4041iAXUH8#,MXUA8#202109-202309

main42606-F4041iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

44890DCOMPRESSOR ASSY, AIR

main42680-F4013iAXUH8#,MXUA85..S202209-202309

main44890-12011iAXUH8#,AXUP85,MXUA8#202109-202211

sub44890-42050

main44890-30030iAXUH8#,MXUA8#202006-202108

sub44890-30031

main44890-42050iAXUH8#,MXUA85..S202211-202309

main44890-47080iAXUH8#,MXUA8#202109-202209

sub42680-F4013

51960HOOK ASSY, FRONT

main51961-48100iAXUH8#,MXUA8#202006-202309

11 parts on this diagram · 1 diagram in section
