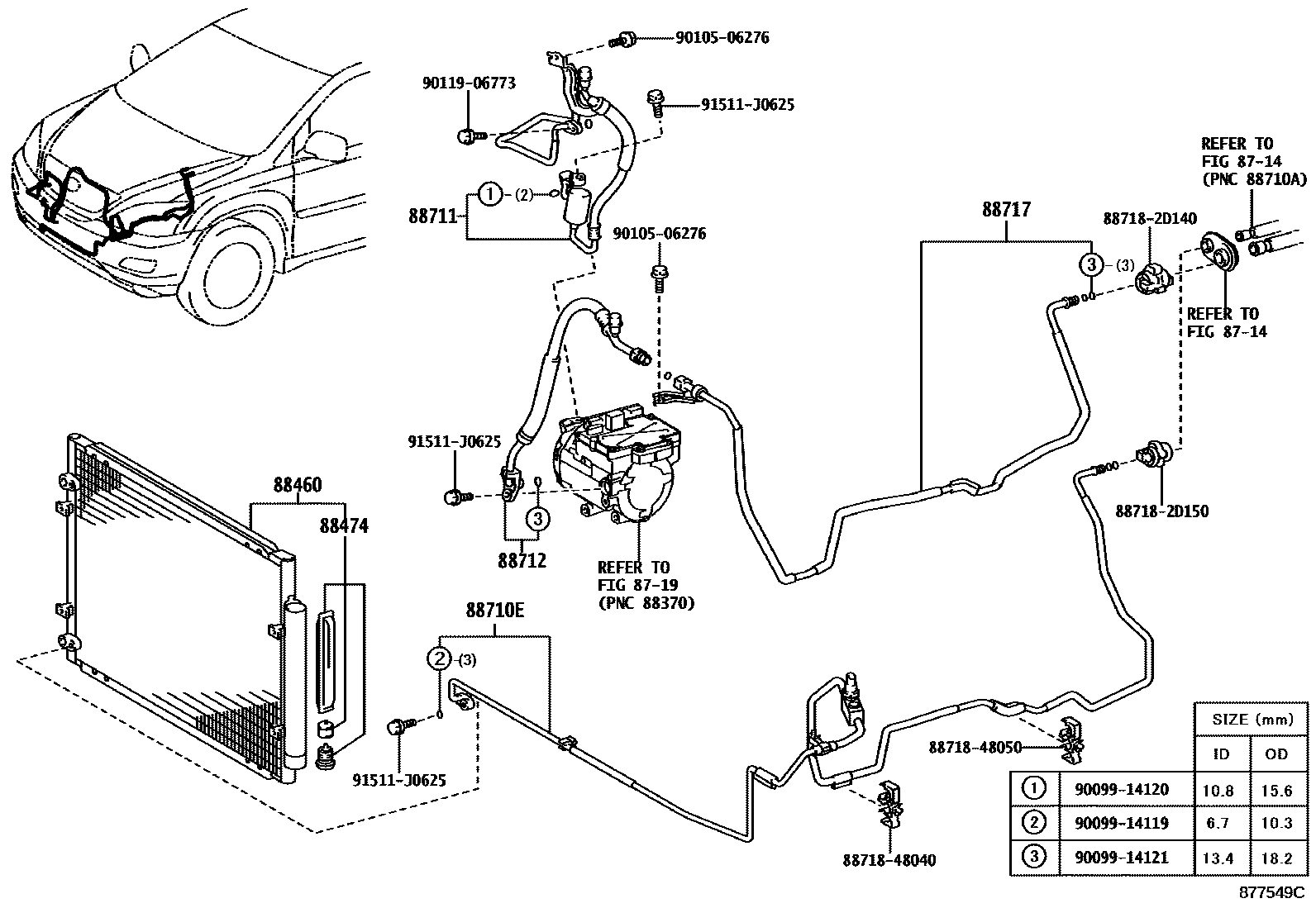

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48060iMHU38200503-200609

sub88460-48061

main88460-48061iMHU38200610-201206

88474DRYER, COOLER

main88474-47020iMHU38200503

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48181iMHU38200503

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48090iMHU38200503-200508

sub88703-48091

main88703-48091iMHU38200509-200707

main88703-48092iMHU38200708

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-48150iMHU38200503

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-48061iMHU38200503

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871848040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48040

8871848050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48050

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506276

main90105-06276

9011906773

main90119-06773

91511J0625

main91511-J0625

18 parts on this diagram · 1 diagram in section
