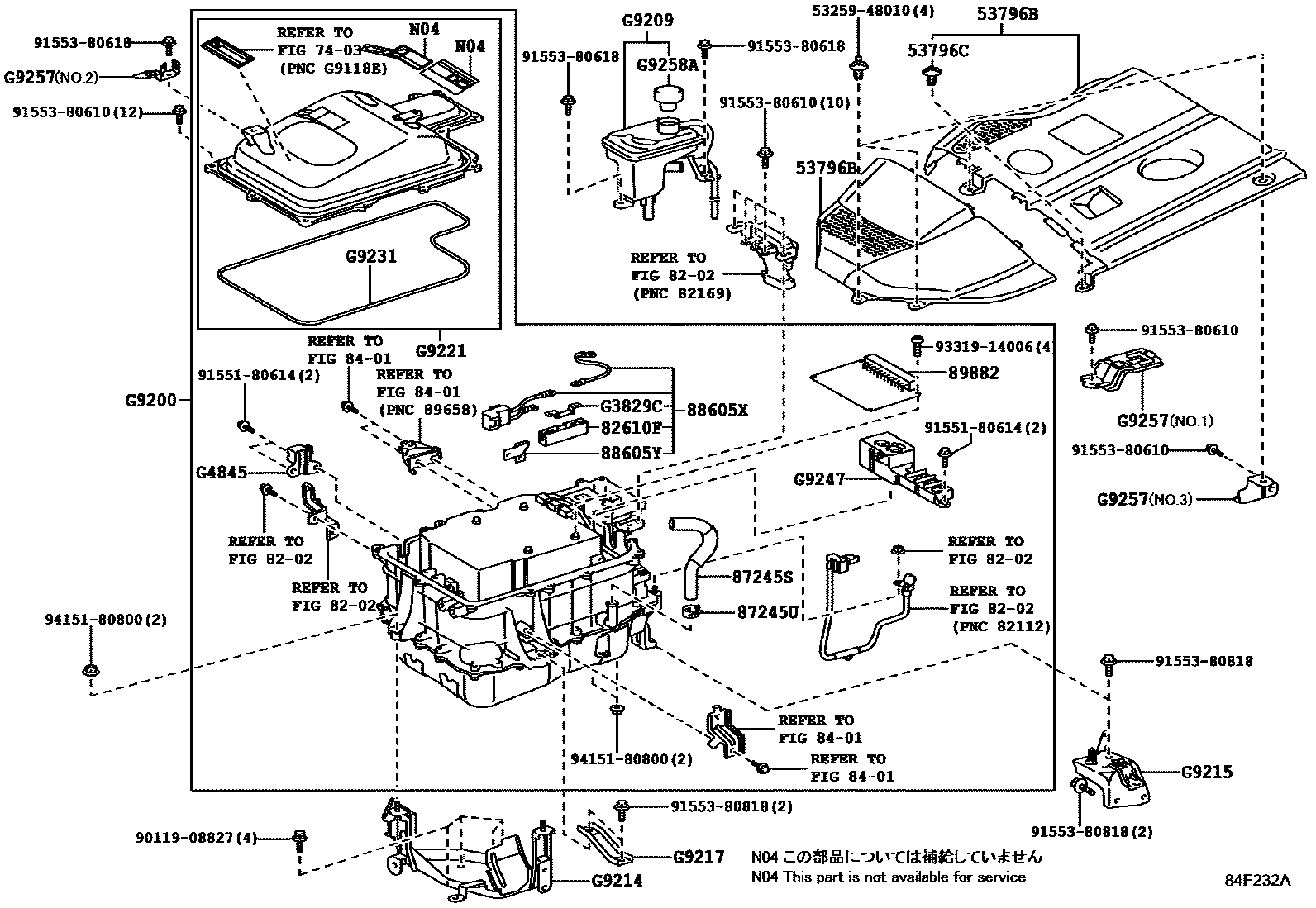

HEV INVERTER

0001 1������ASSY 0002 1KIT���� 0003 1

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main53796-48010iMHU38200503

main53796-48020iMHU38200503

53796CCLIP(FOR ENGINE ROOM SIDE COVER LH)

main90467-07210-C0iMHU38200503-201206

BLACK

7403

8202

82610FBLOCK ASSY, FUSE

main82610-48010iMHU38200503

8401

87245SHOSE, INVERTER WATER, NO.1

main87245-48700iMHU38200608-201206

87245UCLAMP OR CLIP (FOR WATER HOSE)

main90467-21010iMHU38200608-201206

88605XHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-48011iMHU38200503-201206

88605YBRACKET, COOLER

main88688-48141iMHU38200503

89882COMPUTER, MOTOR GENERATOR CONTROL

main89882-48051iMHU38200503-201206

G3829CFUSE, ELECTRIC VEHICLE

mainG382948010iMHU38200503

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484548010iMHU38200503-201206

G9200INVERTER ASSY, W/CONVERTER

mainG92A048020iMHU38200503-200707

subG92A0-48080

mainG92A048080iMHU38200708

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920948010iMHU38200503

G9214BRACKET, INVERTER, NO.1

mainG921448010iMHU38200503-200607

subG9214-48011

mainG921448011iMHU38200608-200708

subG9214-48012

sub87245-48671

mainG921448012iMHU38200708

G9215BRACKET, INVERTER, NO.2

mainG921548010iMHU38200503

G9217BRACKET, INVERTER, NO.4

mainG921748010iMHU38200503

G9221COVER, INVERTER

mainG902248010iMHU38200503

G9231GASKET, INVERTER COVER

mainG923148010iMHU38200503

G9247SENSOR, INVERTER CURRENT, NO.1

mainG924748011iMHU38200503-201206

G9257BRACKET, INVERTER, NO.5

mainG925748020iMHU38200503

mainG925748040iMHU38200503

mainG925748050iMHU38200503

G9258ACAP, INVERTER RESERVE TANK

mainG925847011iMHU38200503

subG9258-28012

5325948010SUPPORT, RADIATOR CENTER

main53259-48010

9011908827

main90119-08827

9155180614

main91551-80614

9155380610

main91553-80610

9155380618

main91553-80618

9155380818

main91553-80818

9331914006

main93319-14006

9415180800

main94151-80800

31 parts on this diagram · 3 diagrams in section
