BATTERY CARRIER

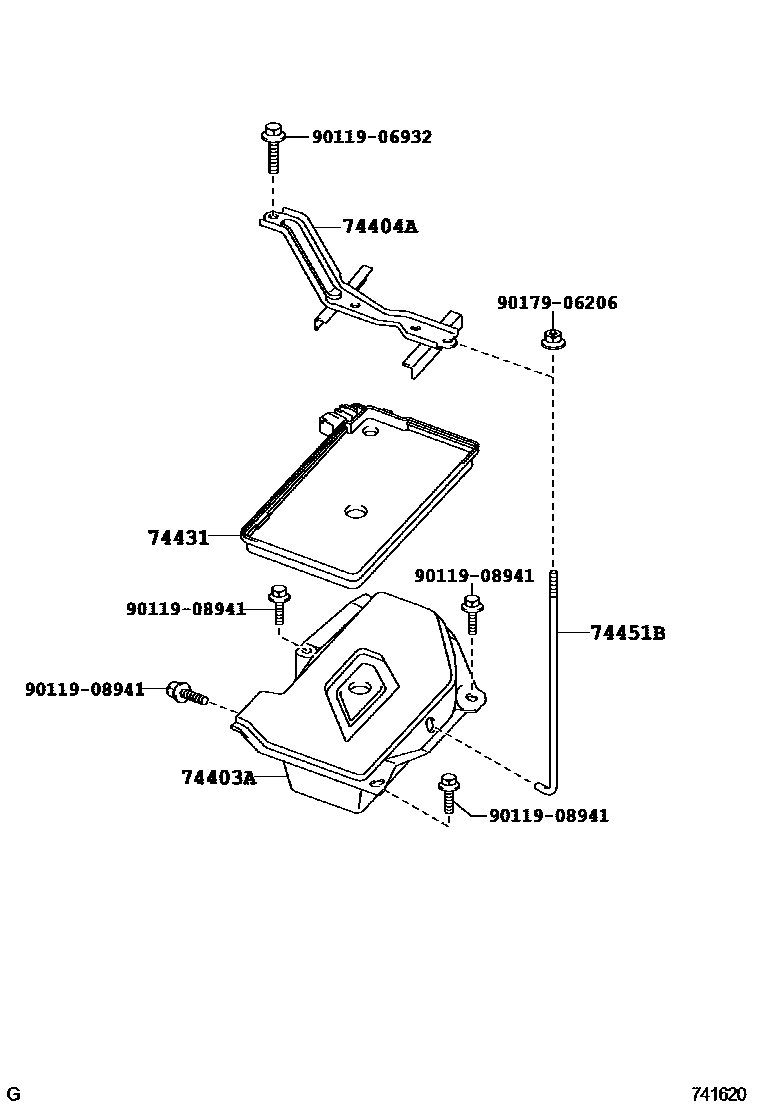

Parts diagram

74403ACARRIER SUB-ASSY, BATTERY

main74403-48010i¥3,940200503

74404ACLAMP SUB-ASSY, BATTERY

main74404-48050i¥2,560200503

74431TRAY, BATTERY

main74450-48030i¥10,100200503

sub74431-48030¥2,590

sub28865-23010¥8,200

74451BBOLT, BATTERY CLAMP

main74452-33010i¥440200503

9011906932

main90119-06932¥60

9011908941

main90119-08941¥190

9017906206

main90179-06206¥70

7 parts on this diagram · 1 diagram in section
