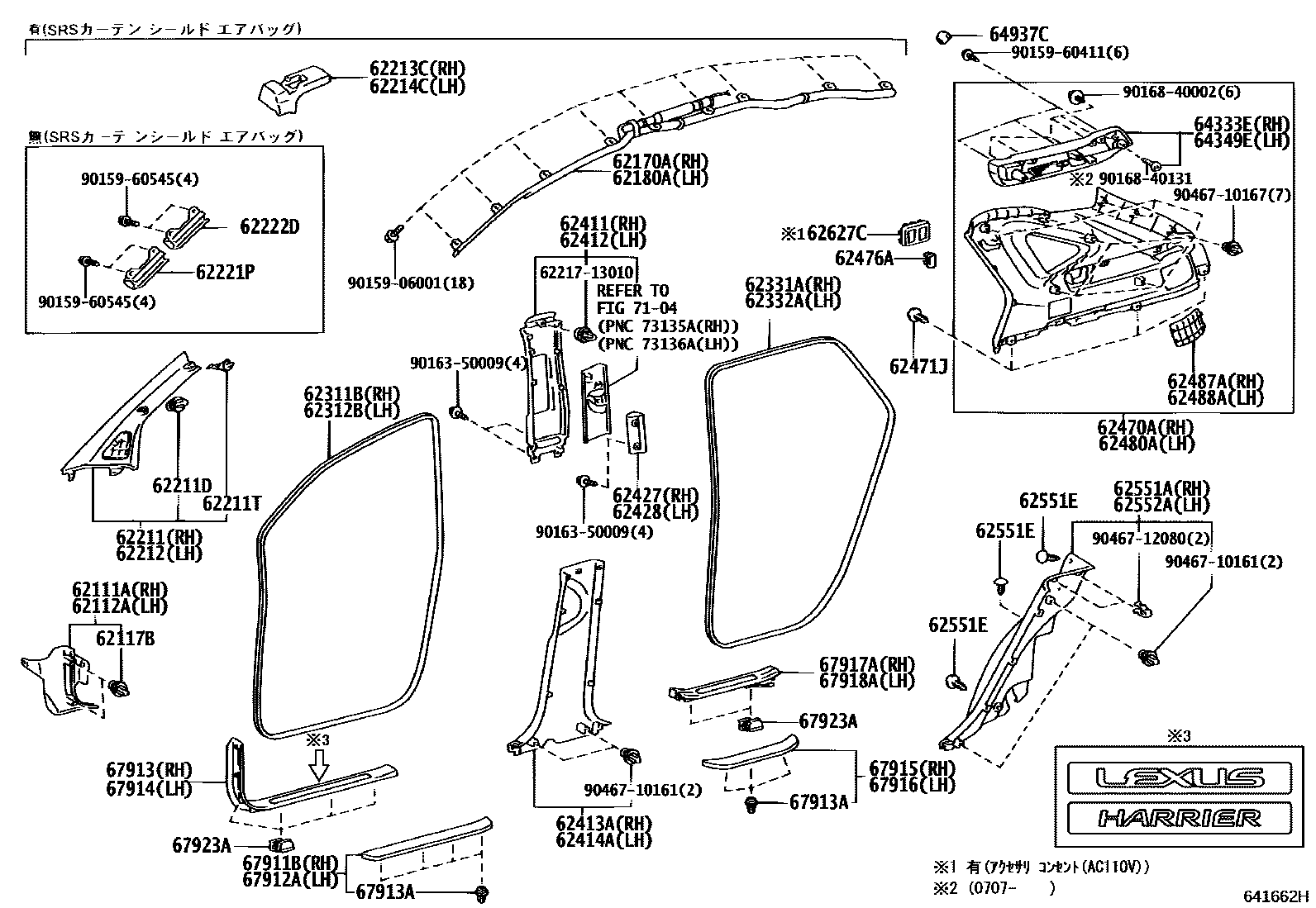

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-48020-A0iMHU38200503-201206

IVORY,TRIM0#

sub62101-48070

sub90467-06147

main62101-48020-C0iMHU38200503-201112

BLACK,TRIM2#

sub62101-48070

sub90467-06147

main62101-48060-C0iMHU38201112-201206

BLACK,TRIM2#

sub62101-48070

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-48030-A0iMHU38200503-201206

IVORY,TRIM0#

sub62102-48031

main62102-48030-C0iMHU38200503-201206

BLACK,TRIM2#

sub62102-48031

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iMHU38200503-201206

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

62211GARNISH, FRONT PILLAR, RH

main62210-48080-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62210-48080

main62210-48080-B1iMHU38200601-201206

LT. GRAY,TRIM2#

sub62210-48080

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10188iMHU38200503

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08004iMHU38200503

62212GARNISH, FRONT PILLAR, LH

main62220-48080-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62220-48080

main62220-48080-B1iMHU38200601-201206

LT. GRAY,TRIM2#

sub62220-48080

62213CPAD, FRONT PILLAR GARNISH, RH

62214CPAD, FRONT PILLAR GARNISH, LH

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-48050iMHU38200503-201108

62222DSPACER, FRONT PILLAR, NO.2 RH

main62222-48050iMHU38200503-201107

sub62222-48051

main62222-48051iMHU38201108

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-48040-A0iMHU38200503-201206

IVORY,TRIM0#

main62311-48040-C0iMHU38200503-201206

BLACK,TRIM2#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-48040-A0iMHU38200503-201206

IVORY,TRIM0#

main62312-48040-C0iMHU38200503-201206

BLACK,TRIM2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-48030-A0iMHU38200503-200606

IVORY,TRIM0#

sub62331-48031

main62331-48030-C0iMHU38200503-200606

BLACK,TRIM2#

sub62331-48031

main62331-48031-A0iMHU38200607-201206

IVORY,TRIM0#

main62331-48031-C0iMHU38200607-201206

BLACK,TRIM2#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-48030-A0iMHU38200503-200606

IVORY,TRIM0#

sub62332-48031

main62332-48030-C0iMHU38200503-200606

BLACK,TRIM2#

sub62332-48031

main62332-48031-A0iMHU38200607-201206

IVORY,TRIM0#

main62332-48031-C0iMHU38200607-201206

BLACK,TRIM2#

62411GARNISH, CENTER PILLAR, RH

main62410-48050-A0iMHU38200503-200601

IVORY,TRIM0#

sub62410-48050

sub62410-48051

main62410-48050-A1iMHU38200601-201206

IVORY,TRIM0#

sub62410-48050

sub62410-48051

main62410-48050-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62410-48050

sub62410-48051

main62410-48050-B1iMHU38200601-201206

LT. GRAY,TRIM2#

sub62410-48050

sub62410-48051

62412GARNISH, CENTER PILLAR, LH

main62420-48050-A0iMHU38200503-200601

IVORY,TRIM0#

sub62420-48050

sub62420-48051

main62420-48050-A1iMHU38200601-201206

IVORY,TRIM0#

sub62420-48050

sub62420-48051

main62420-48050-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62420-48050

sub62420-48051

main62420-48050-B1iMHU38200601-201206

LT. GRAY,TRIM2#

sub62420-48050

sub62420-48051

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-48020-A0iMHU38200503-201206

IVORY,TRIM0#

main62413-48020-C0iMHU38200503-201206

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-48020-A0iMHU38200503-201206

IVORY,TRIM0#

main62414-48020-C0iMHU38200503-201206

BLACK,TRIM2#

62427BRACKET, CENTER PILLAR GARNISH, RH

main62427-48010iMHU38200503

62428BRACKET, CENTER PILLAR GARNISH, LH

main62428-48010iMHU38200503

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-48060-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62470-48060

sub62470-48180

main62470-48060-B1iMHU38200601-200607

LT. GRAY,TRIM2#

sub62470-48060

sub62470-48180

main62470-48180-B0iMHU38200608-200706

LT. GRAY,TRIM2#

sub62470-48220

main62470-48220-B0iMHU38200707-201206

LT. GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06020-C0iMHU38200503-201206

BLACK

sub90467-06020

62476ACAP, ROOF SIDE INNER GARNISH, RH

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-48050-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62480-48050

sub62480-48150

main62480-48050-B1iMHU38200601-200607

LT. GRAY,TRIM2#

sub62480-48050

sub62480-48150

main62480-48150-B0iMHU38200608-200706

LT. GRAY,TRIM2#

sub62480-48170

main62480-48170-B0iMHU38200707-201206

LT. GRAY,TRIM2#

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-48020-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62487-48020

sub62487-48021

main62487-48020-B1iMHU38200601-200608

LT. GRAY,TRIM2#

sub62487-48020

sub62487-48021

main62487-48021-B1iMHU38200610-201206

LT. GRAY,TRIM2#

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62488-48020-B0iMHU38200503-200601

LT.GRAY,TRIM2#

sub62488-48020

sub62488-48021

main62488-48020-B1iMHU38200601-200608

LT. GRAY,TRIM2#

sub62488-48020

sub62488-48021

main62488-48021-B1iMHU38200610-201206

LT. GRAY,TRIM2#

62551ACOVER, REAR SEAT SIDE, RH

main62551-48040-A0iMHU38200503-201206

IVORY,TRIM0#

main62551-48040-C0iMHU38200503-201206

BLACK,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-05161-A0iMHU38200503-201206

IVORY,TRIM0#

sub90467-05161

main90467-05161-C0iMHU38200503-201206

BLACK,TRIM2#

sub90467-05161

62552ACOVER, REAR SEAT SIDE, LH

main62552-48020-A0iMHU38200503-201206

IVORY,TRIM0#

main62552-48020-C0iMHU38200503-201206

BLACK,TRIM2#

62627CCOVER, SIDE TRIM, NO.1

64333ECOVER, TONNEAU SIDE, RH

main64333-48010-B0iMHU38200503-200603

LT.GRAY,TRIM2#

sub64333-48011

main64333-48011-B0iMHU38200604-200607

LT.GRAY,TRIM2#

sub64333-48020

main64333-48020-B0iMHU38200608-200707

LT.GRAY,TRIM2#

sub64333-48021

sub67754-48051

main64333-48021-B0iMHU38200707-201206

LT.GRAY,TRIM2#

64349ECOVER, TONNEAU SIDE, LH

main64349-48011-B0iMHU38200503-200508

LT.GRAY,TRIM2#

sub64349-48012

main64349-48012-B0iMHU38200509-200603

LT.GRAY,TRIM2#

sub64349-48013

main64349-48013-B0iMHU38200604-200607

LT.GRAY,TRIM2#

sub64349-48030

main64349-48030-B0iMHU38200608-200707

LT.GRAY,TRIM2#

sub64349-48031

sub67754-48061

main64349-48031-B0iMHU38200707-201206

LT.GRAY,TRIM2#

64937CCAP, TONNEAU COVER HOLDER, NO.1

main64937-48020-B0iMHU38200503-201206

LT.GRAY,TRIM2#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-48050-C0iMHU38200503-200509

BLACK,TRIM2#

sub67911-48051

main67911-48051-C0iMHU38200510-201206

BLACK,TRIM2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-48050-C0iMHU38200503-200509

BLACK,TRIM2#

sub67912-48051

main67912-48051-C0iMHU38200510-201206

BLACK,TRIM2#

67913PLATE, FRONT DOOR SCUFF, RH

main67910-48040-C0iMHU38200503-201206

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iMHU38200503

67914PLATE, FRONT DOOR SCUFF, LH

main67920-48040-C0iMHU38200503-201206

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-48050-C0iMHU38200503-201206

BLACK,TRIM2#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-48050-C0iMHU38200503-201206

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67930-48040-C0iMHU38200503-201206

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67940-48040-C0iMHU38200503-201206

BLACK,TRIM2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iMHU38200503

7104

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9015906001

main90159-06001

9015960411

main90159-60411

9015960545

main90159-60545

9016350009

main90163-50009

9016840002

main90168-40002

9016840131

main90168-40131

9046710161

main90467-10161

9046710167

main90467-10167

9046712080

main90467-12080

57 parts on this diagram · 2 diagrams in section
