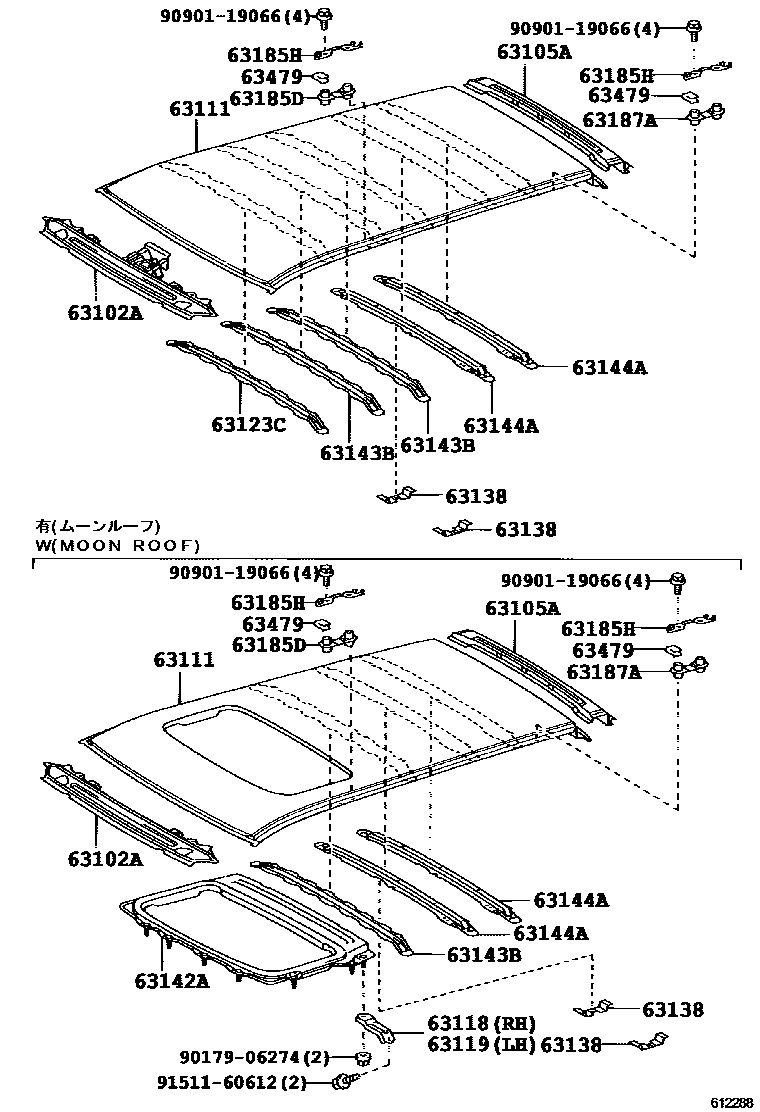

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1������������ 0003 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48070supersedes 63102-48050iMHU38200503-201206

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48030iMHU38200503

63111PANEL, ROOF

main63111-48080supersedes 63111-48070iMHU38200503

63118SUPPORT, ROOF PANEL, RH

main63118-48070iMHU38200503

63119SUPPORT, ROOF PANEL, LH

main63118-48070iMHU38200503

63123CREINFORCEMENT, ROOF PANEL

main63123-48020iMHU38200503

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iMHU38200503

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-48020iMHU38200503

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48050supersedes 63143-48040iMHU38200503

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48030×2iMHU38200503

63185DBRACKET, ROOF RACK, FRONT

main63187-48010×2iMHU38200503

63185HBRACKET, ROOF RACK

main63185-42020×4iMHU38200503

63187ABRACKET, ROOF RACK, REAR

main63187-42010×2iMHU38200503

63479RETAINER, ROOF INNER RACK

main63479-48010×4iMHU38200503

9017906274

main90179-06274

9090119066

main90901-19066

9151160612

main91511-60612

17 parts on this diagram · 3 diagrams in section
