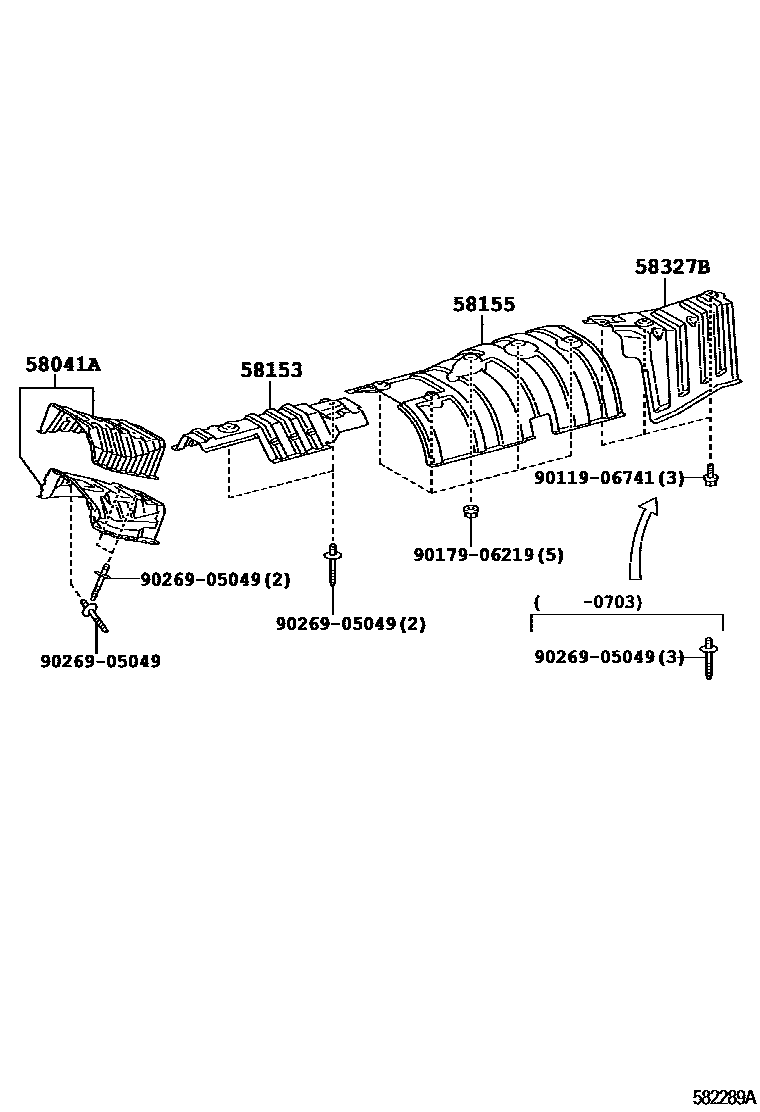

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-48020iMHU38200503-200704

sub58041-48021

main58041-48021iMHU38200705

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-48020iMHU38200503

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-48030iMHU38200503

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-48030iMHU38200503-200702

main58327-48031iMHU38200703

9011906741

main90119-06741

9017906219

main90179-06219

9026905049

main90269-05049

7 parts on this diagram · 1 diagram in section
