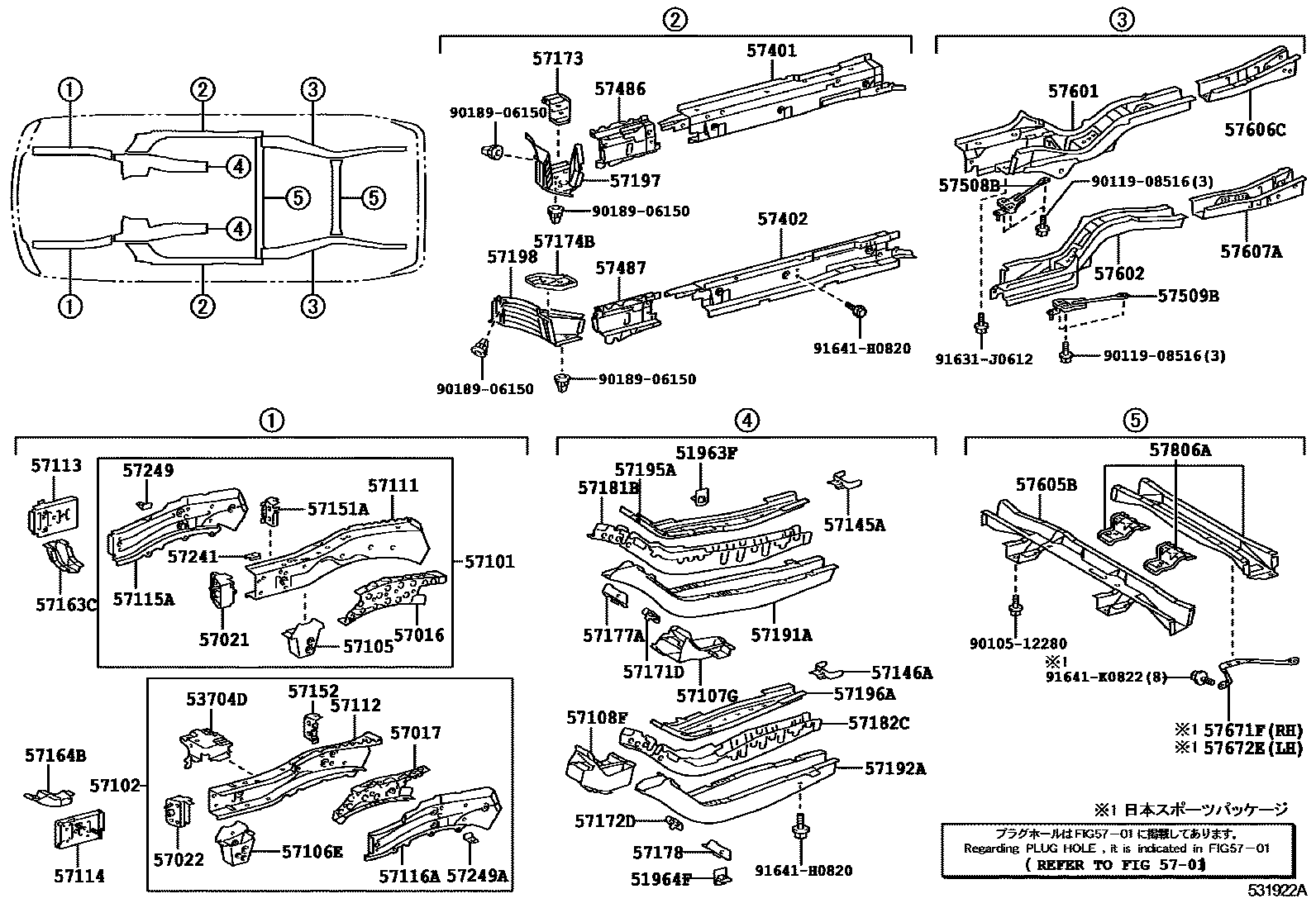

FLOOR SIDE MEMBER

51963FHOOK, TRANSPORT

main51961-48020iMHU38¥1,140200503-200608

sub51961-48040¥1,480

main51961-48040iMHU38¥1,480200609

51964FHOOK, TRANSPORT, LH

main51961-48020iMHU38¥1,140200503-200608

sub51961-48040¥1,480

main51961-48040iMHU38¥1,480200609

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-48040iMHU38¥3,950200503

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-48020iMHU38¥6,700200503

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-48020iMHU38¥6,700200503

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-48012iMHU38¥4,080200503

sub57021-48013¥3,400

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-48012iMHU38¥4,730200503

sub57022-48013¥3,950

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57027-48900iMHU38¥47,400200503

sub57027-48905¥47,400

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57028-48902iMHU38¥51,800200503

sub57028-48907¥51,800

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iMHU38¥4,540200503

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iMHU38¥4,540200503

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-48030iMHU38¥7,500200503

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-48030iMHU38¥7,500200503

57111MEMBER, FRONT SIDE, RH

main57111-48020iMHU38¥19,100200503

57112MEMBER, FRONT SIDE, LH

main57112-48021iMHU38¥19,100200503

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-48021iMHU38¥2,710200503

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-48021iMHU38¥2,710200503

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-48020iMHU38¥9,000200503

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-48020iMHU38¥10,800200503

sub57116-48021¥9,000

sub90333-25001¥140

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-48030iMHU38¥1,010200503

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-48030iMHU38¥1,010200503

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-48020iMHU38¥780200503

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-48020iMHU38¥780200503

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-48020iMHU38¥3,160200503

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-48020iMHU38¥3,160200503

57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH

main57171-48030iMHU38¥500200503

57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH

main57172-48020iMHU38¥500200503

57173BOX, TORQUE, FRONT NO.2 RH

main57173-48020iMHU38¥3,160200503

57174BREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-48020iMHU38¥3,160200503

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-48010iMHU38¥1,330200503

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57178-48010iMHU38¥1,330200503

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-48020iMHU38¥14,700200503

57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH

main57182-48020iMHU38¥14,700200503

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-48020iMHU38¥19,900200503

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-48020iMHU38¥19,900200503

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-48020iMHU38¥10,800200503

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-48020iMHU38¥10,800200503

57197BOX, TORQUE, FRONT RH

main57197-48030iMHU38¥9,000200503

57198BOX, TORQUE, FRONT LH

main57198-48030iMHU38¥9,000200503

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-48010iMHU38¥360200503

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iMHU38¥440200503

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iMHU38¥440200503

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-48030iMHU38¥19,800200503-201206

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-48030iMHU38¥19,800200503-201206

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-48030iMHU38¥6,700200503

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-48030iMHU38¥6,700200503

57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-48030iMHU38¥3,070200503

57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-48030iMHU38¥2,980200503

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-48905iMHU38¥39,800200503-200608

sub57601-48909¥39,800

main57601-48909iMHU38¥39,800200608-200610

sub57601-48911¥39,500

main57601-48911iMHU38¥39,500200610-201206

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-48905iMHU38¥39,800200503-200608

sub57602-48908¥39,500

main57602-48908iMHU38¥39,500200608-200610

sub57602-48910¥39,500

main57602-48910iMHU38¥39,500200610-201206

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-48040iMHU38¥23,500200503

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-48050iMHU38¥15,800200503

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-48010iMHU38¥15,800200503

57671FBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

57672EBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-48020iMHU38¥12,800200503

9010512280

main90105-12280¥300

9011908516

main90119-08516¥120

9018906150

main90189-06150¥90

91631J0612

main91631-J0612¥110

91641H0820

main91641-H0820¥90

91641K0822

main91641-K0822¥80

63 parts on this diagram · 1 diagram in section
