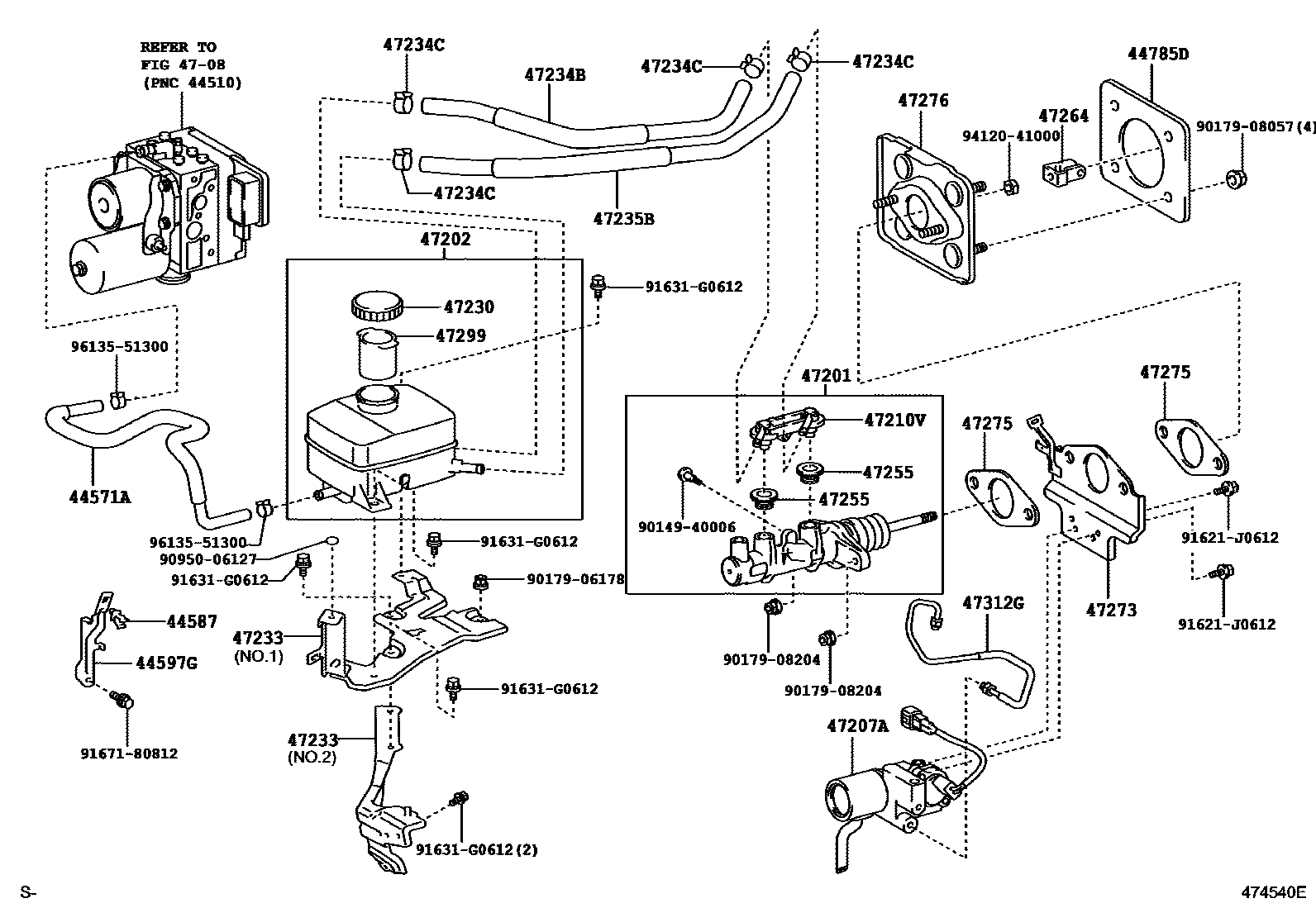

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-48080iMHU38200503-201206

44587CLAMP, BRAKE ACTUATOR HOSE

main44587-48010iMHU38200503

44597GBRACKET, BRAKE ACTUATOR, NO.7

main44597-48010iMHU38200503

44785DGASKET, BRAKE MASTER CYLINDER

main44785-47010iMHU38200503

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48180iMHU38200503

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48180iMHU38200503

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-58010iMHU38200503

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40402iMHU38200503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58010iMHU38200503

sub47230-11010

47233BRACKET, RESERVOIR

main47233-48070iMHU38200503

main47233-48080iMHU38200503

47234BTUBE, RESERVOIR, NO.1

main47234-48070iMHU38200503

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iMHU38200503

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-48040iMHU38200503

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMHU38200503

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42010iMHU38200503

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-30010iMHU38200503

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMHU38200503

47276BRACKET, BRAKE MASTER CYLINDER

main47276-30040iMHU38200503

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-48180iMHU38200503

47312GTUBE, BRAKE STROKE SIMULATOR

main47312-58040iMHU38200503

9014940006

main90149-40006

9017906178

main90179-06178

9017908057

main90179-08057

9017908204

main90179-08204

9095006127

main90950-06127

91621J0612

main91621-J0612

91631G0612

main91631-G0612

9167180812

main91671-80812

9412041000

main94120-41000

9613551300

main96135-51300

31 parts on this diagram · 1 diagram in section
