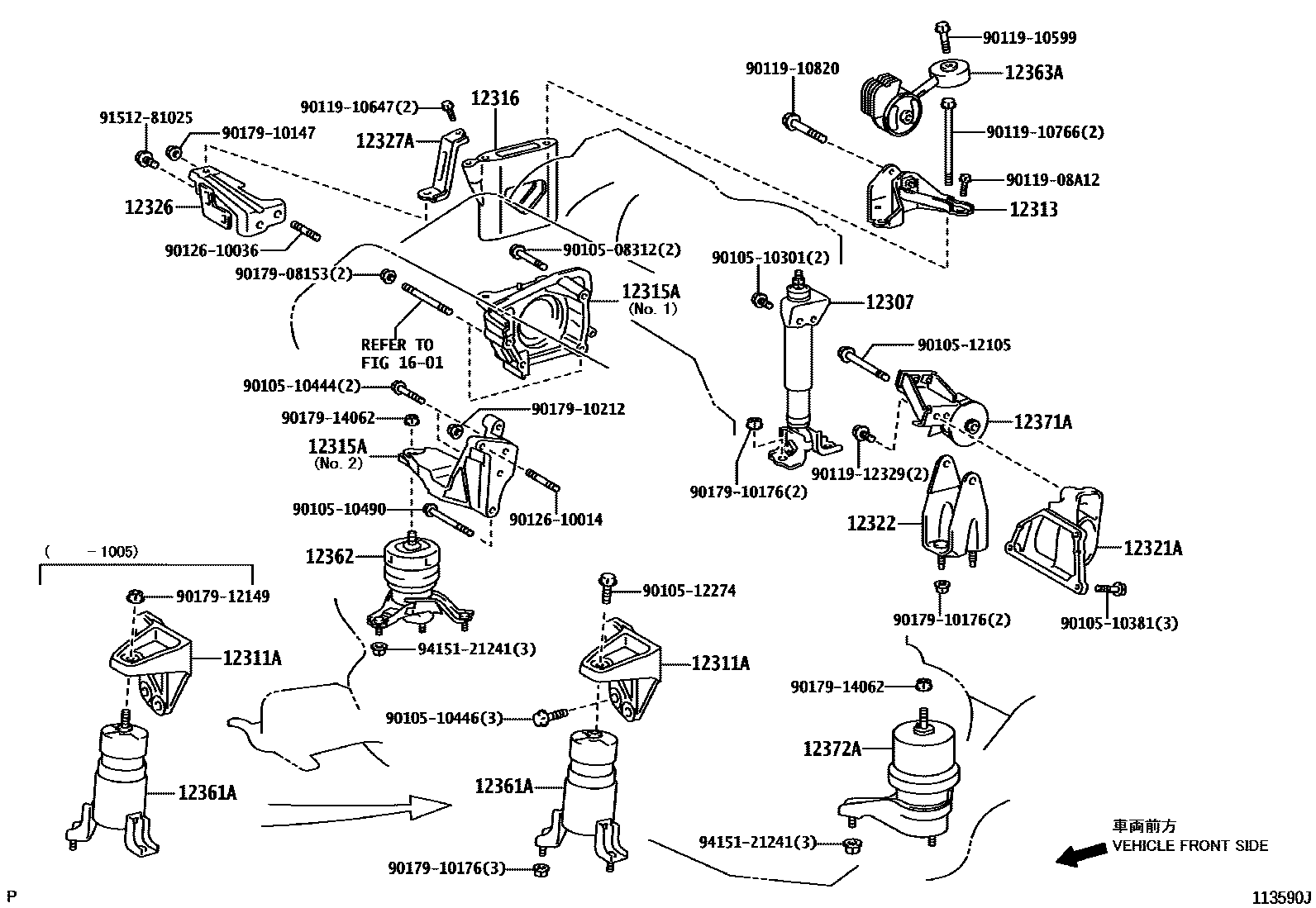

MOUNTING
12307ABSORBER SUB-ASSY, ENGINE MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
sub12322-20071
12326BRACKET, ENGINE MOUNTING STAY
12327ASTAY, ENGINE MOUNTING, NO.2 RH
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
1601
9010508312
main90105-08312
9010510301
main90105-10301
9010510381
main90105-10381
9010510444
main90105-10444
9010510446
main90105-10446
9010510490
main90105-10490
9010512105
main90105-12105
9010512274
main90105-12274
9011908A12
main90119-08A12
9011910599
main90119-10599
9011910647
main90119-10647
9011910766
main90119-10766
9011910820
main90119-10820
9011912329
main90119-12329
9012610014
main90126-10014
9012610036
main90126-10036
9017908153
main90179-08153
9017910147
main90179-10147
9017910176
main90179-10176
9017910212
main90179-10212
9017912149
main90179-12149
9017914062
main90179-14062
9151281025
main91512-81025
9415121241
main94151-21241
39 parts on this diagram · 1 diagram in section
