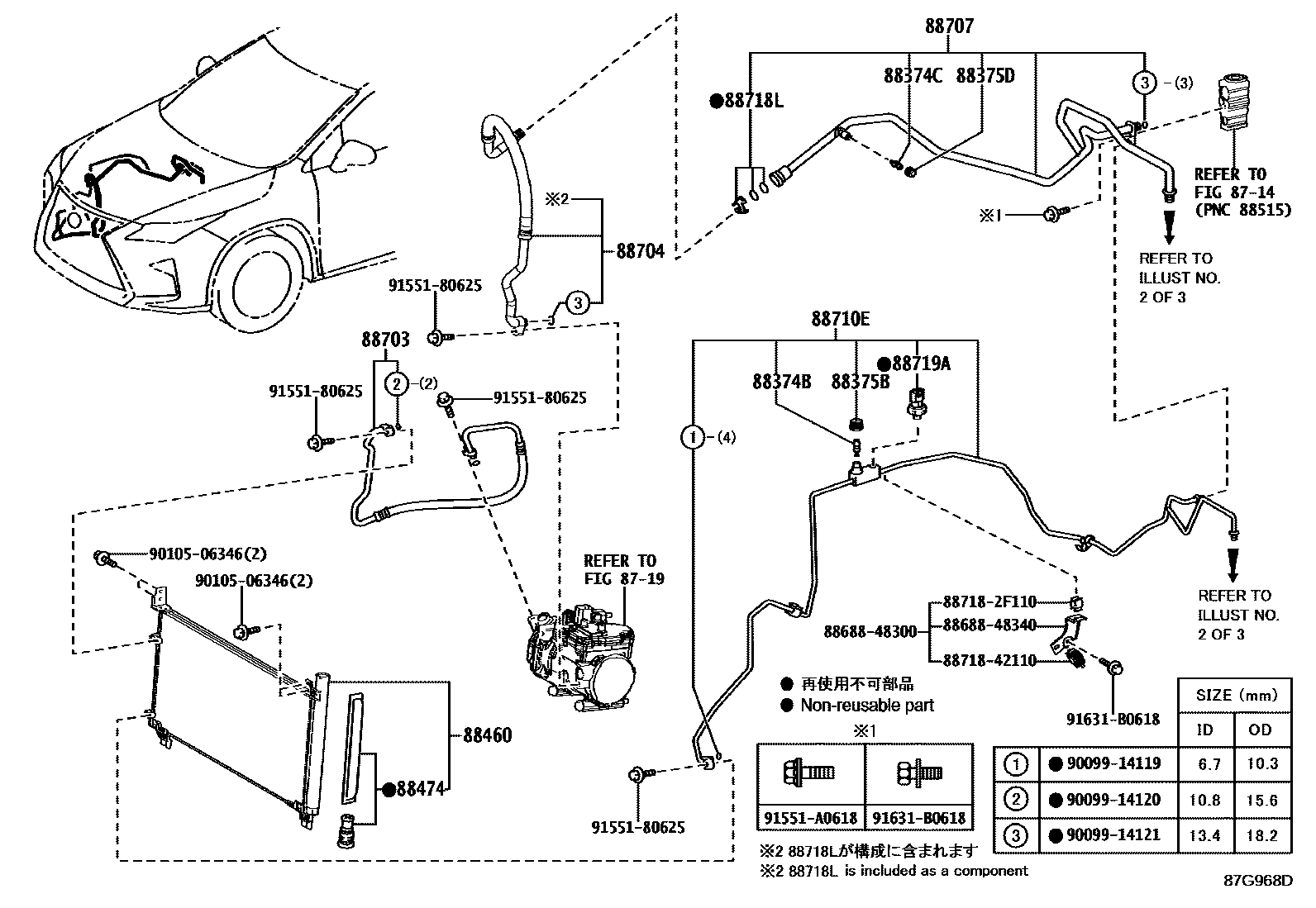

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1�� 1/2 0004 1�� 1/2 0005 1�� 2/2 0006 1�� 2/2

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGYL26201712-201908

88374CVALVE, SERVICE, NO.2

main88374-30010iGYL26201712-201908

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGYL26201712-201908

main88375-30320iGYL26201908

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGYL26201712-201908

main88375-30310iGYL26201908

88460CONDENSER ASSY, COOLER

main88460-48220iGYL26201712-201908

88474DRYER, COOLER

main88474-47020iGYL26201712-201908

88703HOSE SUB-ASSY, DISCHARGE

main88703-48320iGYL26201712-201908

main88703-48330iGYL26201908

88704HOSE SUB-ASSY, SUCTION

main88704-48310iGYL26201712-201908

88707PIPE SUB-ASSY, SUCTION

main88707-48280iGYL26201712-201908

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48620iGYL26201908

main88710-48760iGYL26201712-201908

88718LCLAMP, PIPING

main88718-52280iGYL26201712-201908

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGYL26201712-201908

8868848300BRACKET, COOLER DIAPHRAGM

main88688-48300

8868848340BRACKET, COOLER DIAPHRAGM

main88688-48340

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

8871842110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9155180625

main91551-80625

91551A0618

main91551-A0618

91631B0618

main91631-B0618

25 parts on this diagram · 6 diagrams in section
