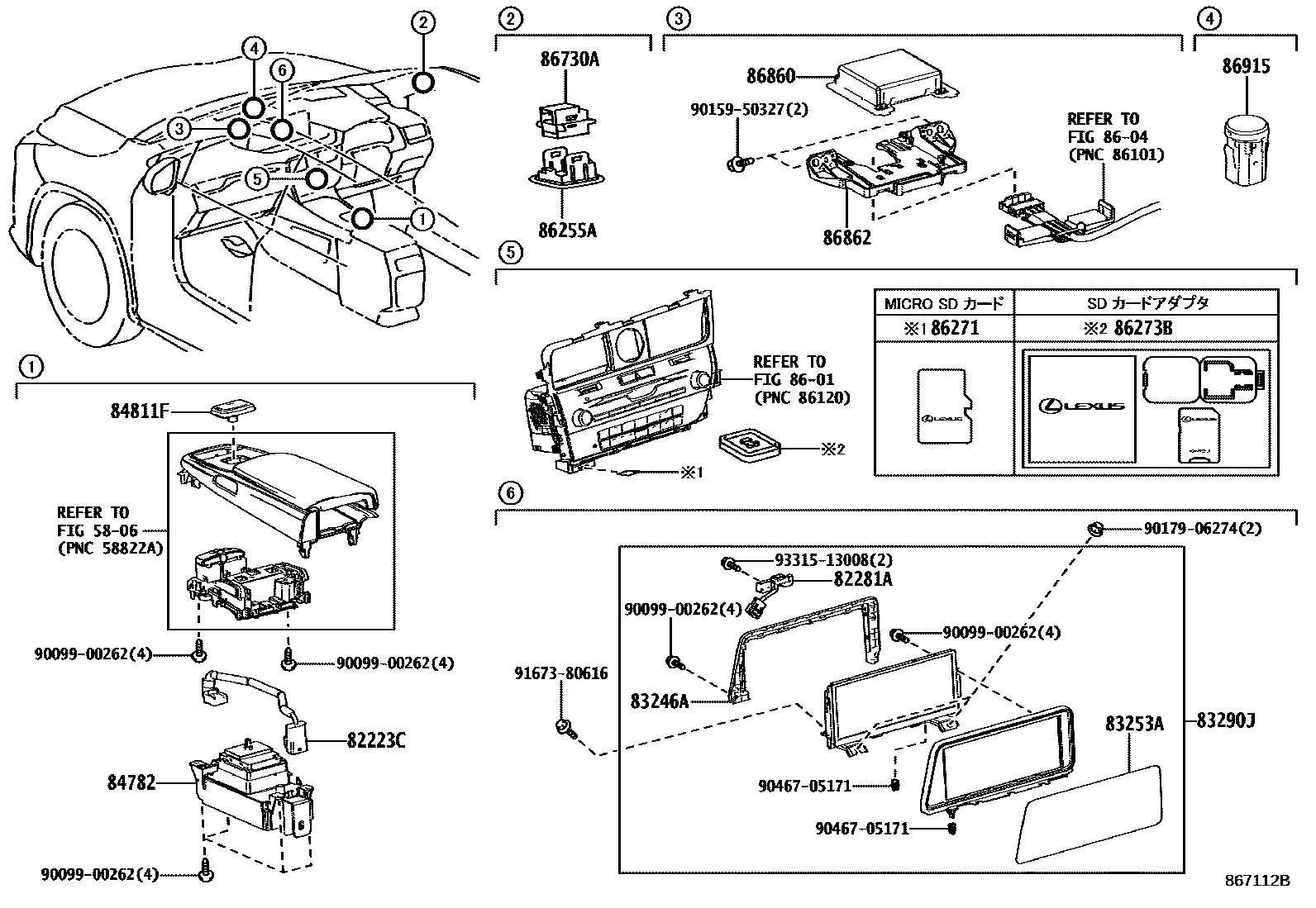

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5806

82223CWIRE, SWITCH

main82223-48040iGYL26¥0201712-201908

82281AWIRE, GAUGE

main82281-48010iGYL26¥0201712-201908

83246APANEL, MULTI INFORMATION DISPLAY

main83268-48120iGYL26¥3,850201712-201908

83253AGLASS, ACCESSORY METER

main83253-48120iGYL26201712-201908

83290JMETER ASSY, ACCESSORY

main83290-48131iGYL26¥301,000201712-201908

84782BOARD, REMOTE OPERATION

main84782-48061iGYL26¥0201712-201908

84811FKNOB, SWITCH

main84811-48040iGYL26¥680201712-201908

8601

8604

86255ACASE, MICROPHONE, NO.1

main86255-78010-A0iGYL26201712-201908

ECRU,TRIM0#,5#,6#

main86255-78010-B0iGYL26201908

MOON STONE,TRIM1#,2#,4#

main86255-78010-B0iGYL26201712-201908

MOON STONE,TRIM2#,4#

86271DISC, DISC PLAYER

main86271-48410iGYL26¥47,100201712-201803

sub86271-48411¥47,100

main86271-48411iGYL26¥47,100201804-201809

sub86271-48412¥47,100

main86271-48412iGYL26¥47,100201809-201904

sub86271-48413¥47,100

main86271-48413iGYL26¥47,100201905-201908

sub86271-48414¥47,100

86273BADAPTER, DISC PLAYER

main86273-53010iGYL26¥4,950201712-201908

86730AMICROPHONE ASSY, TELEPHONE

main86730-45030iGYL26¥7,100202106

main86730-48100iGYL26¥7,100201712-201908

sub86730-45030¥7,100

main86730-48100iGYL26¥7,100201908-202105

sub86730-45030¥7,100

86860ANTENNA ASSY, NAVIGATION

main86880-78010iGYL26¥13,000201712-201908

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iGYL26¥940201810-201908

main86862-58020iGYL26¥940201712-201809

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iGYL26¥14,200201712-201908

9009900262

main90099-00262

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9331513008

main93315-13008¥100

23 parts on this diagram · 2 diagrams in section
