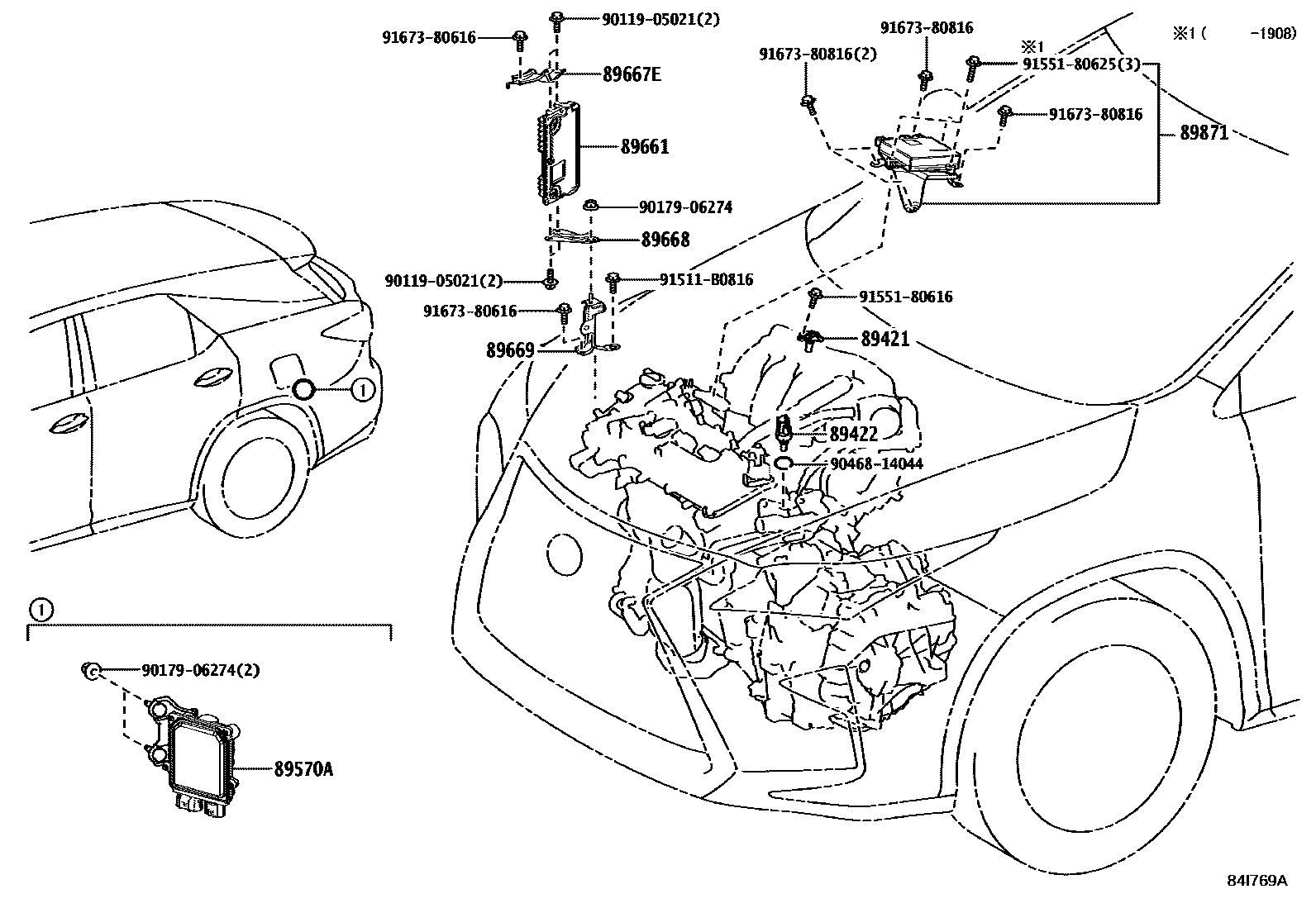

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGYL26201712-201908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGYL26201712-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48070iGYL26201712-201908

89661COMPUTER, ENGINE CONTROL

main89661-48K60iGYL26202007

main89661-48U60iGYL26201712-201908

main89661-48Y50iGYL26201908-202007

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48180iGYL26201712-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48200iGYL26201712-201908

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-48030iGYL26201712-201908

89871DRIVER, INJECTOR

main89870-48020iGYL26201712-201908

9011905021

main90119-05021

9017906274

main90179-06274

9046814044

main90468-14044

91511B0816

main91511-B0816

9155180616

main91551-80616

9155180625

main91551-80625

9167380616

main91673-80616

9167380816

main91673-80816

16 parts on this diagram · 1 diagram in section
