SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1��������(1/2) 0003 1��������(2/2) 0004 1��� 0005 1��� 0006 1������������(1/2) 0007 1������������(2/2) 0008 1������������(2/2) 0009 1������� 0010 1��� 0011 1���, ��� & ��� 0012 1���, ������� & ������� 0013 1���, ������� & �������

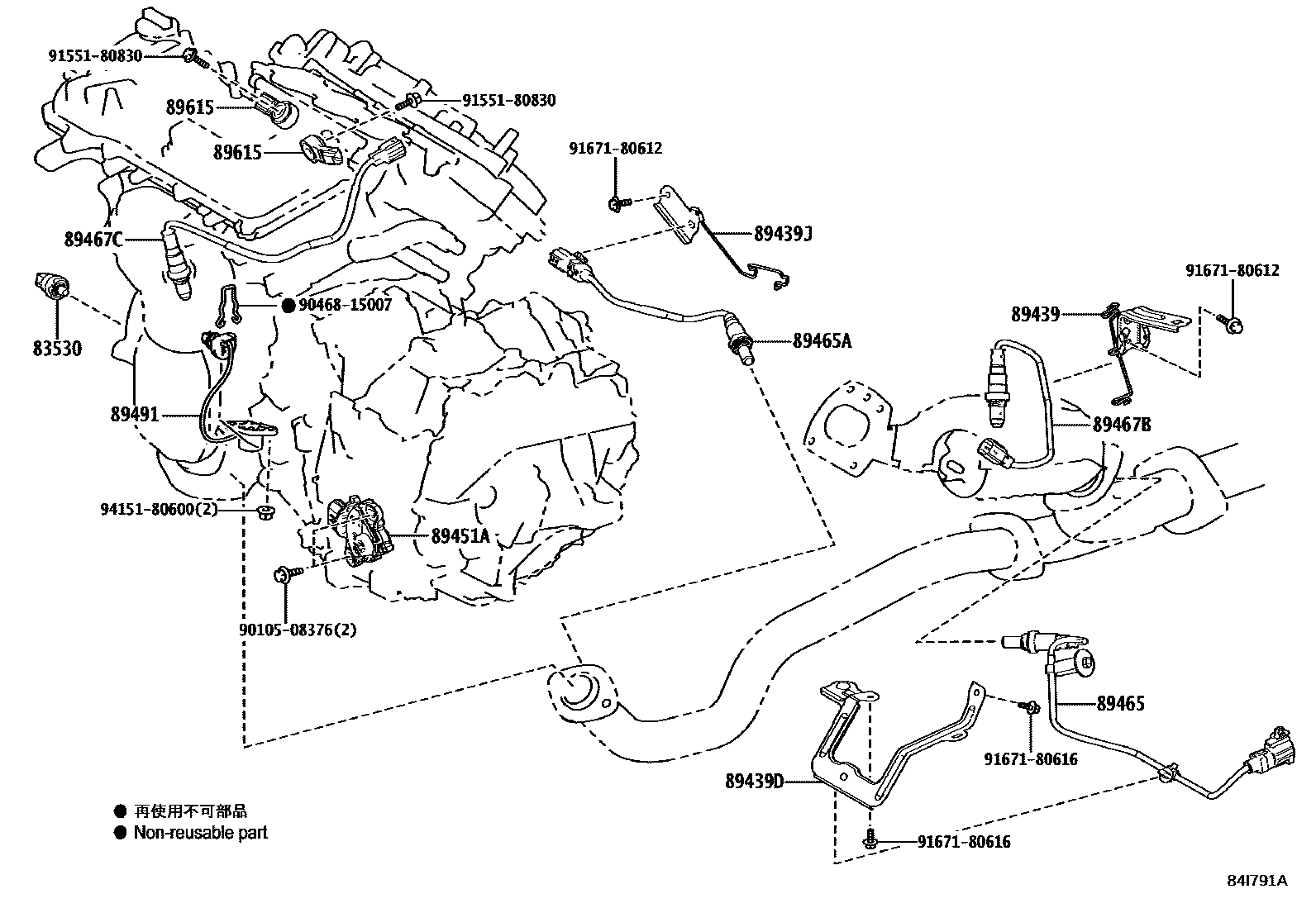

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGYL26201712-201908

main83530-60020iGYL26201712-201908

89439BRACKET, SENSOR

main82715-45080iGYL26201712-201908

89439DBRACKET, SENSOR, NO.1

main82715-48A20iGYL26201712-201908

89439JBRACKET, SENSOR, NO.2

main82715-48M50iGYL26201712-201908

89451ASENSOR, SHIFT LEVER POSITION

main89451-52040iGYL26201712-201908

89465SENSOR, OXYGEN

main89465-48410iGYL26201712-201908

89465ASENSOR, OXYGEN NO.2

main89465-48390iGYL26201712-201908

89467BSENSOR, AIR FUEL RATIO

main89467-48320iGYL26201712-201908

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48310iGYL26201712-201908

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGYL26201712-201808

sub89491-48021

main89491-48021iGYL26201809-202004

sub89491-48040

main89491-48040iGYL26202005-202204

sub89491-48041

main89491-48041iGYL26202205

89615SENSOR, KNOCK CONTROL

main89615-20090iGYL26201712-201908

9010508376

main90105-08376

9046815007

main90468-15007

9155180830

main91551-80830

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

17 parts on this diagram · 13 diagrams in section
